Connector mount
2.4/5.0 GHz WiFi Omni-Directional Blade Dipole Antenna
Item No.: AN2450-74BC01RS-B
Frequency Range: 2.4 / 5.0 GHz
Gain: 4.32 dBi
Connector: RP-SMA Plug
Weight: 17.6g
Part Number: AN2450-74BC01RS-B
Gain: 4.32 dBi
Connector: RP-SMA Plug
Weight: 17.6g
Part Number: AN2450-74BC01RS-B
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 2400-2500MHz /5150-5850MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 4.32dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||

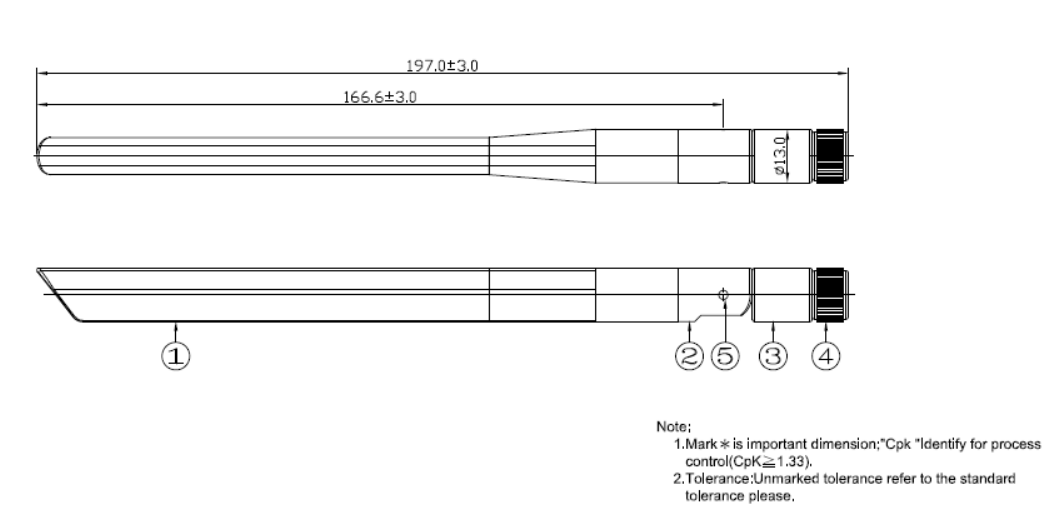

B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | PCB + Spring | |||||||||||
| Material of Plastic | ABS/POM | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | RP-SMA Plug | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
