Magnetic antenna

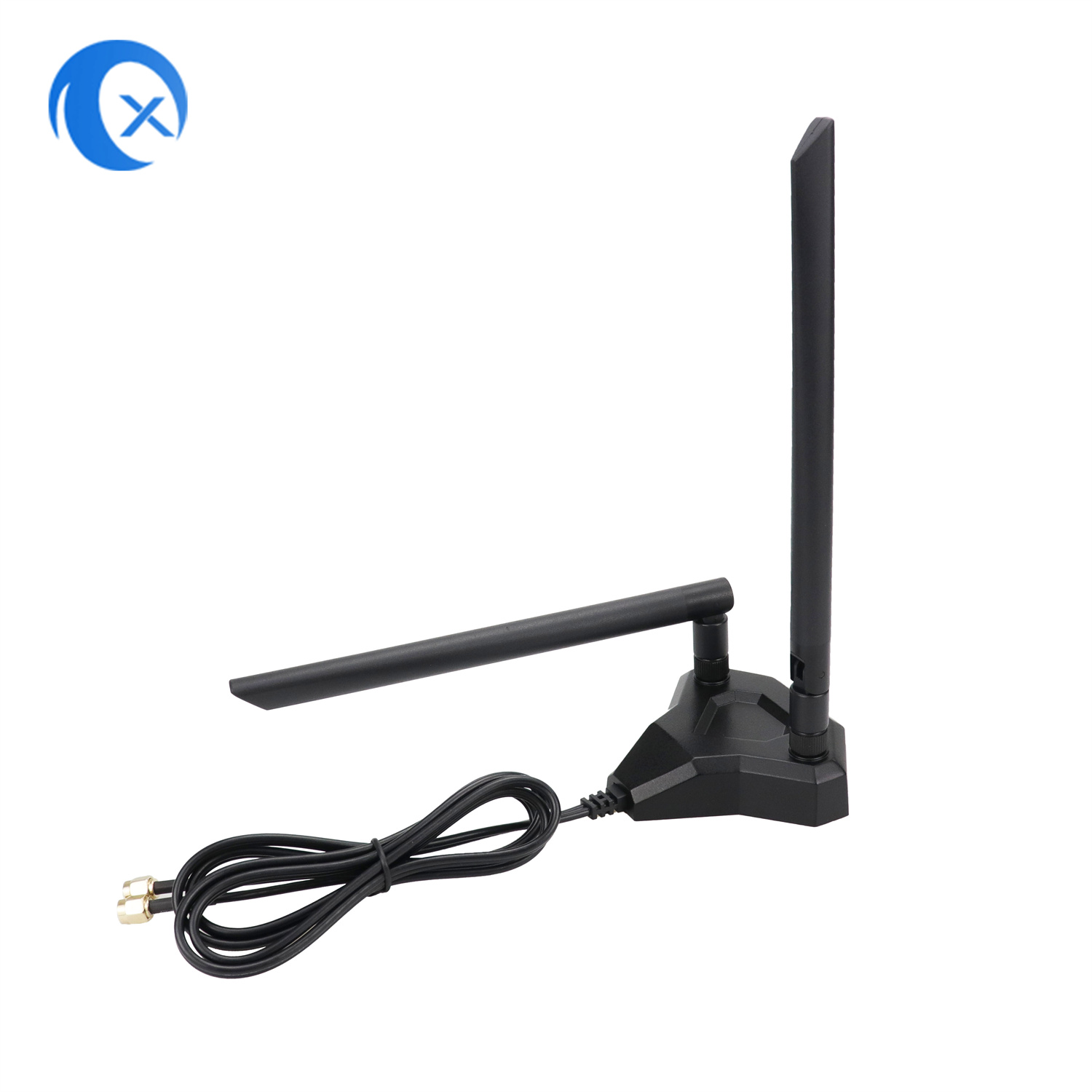

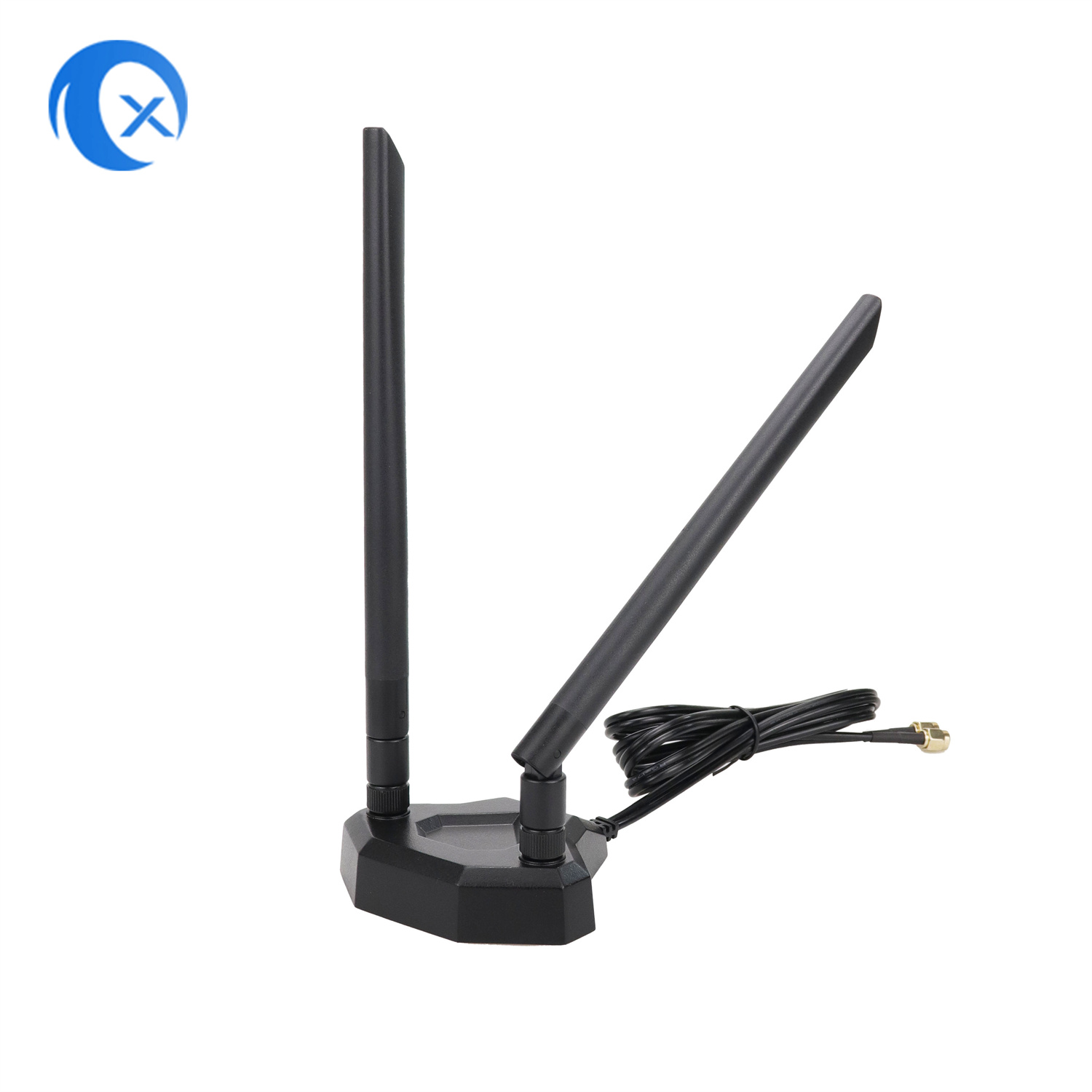

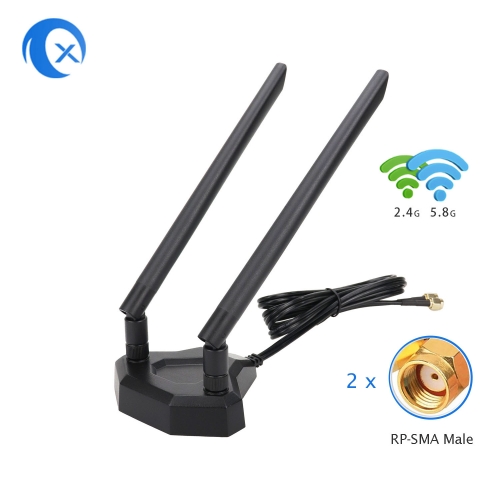

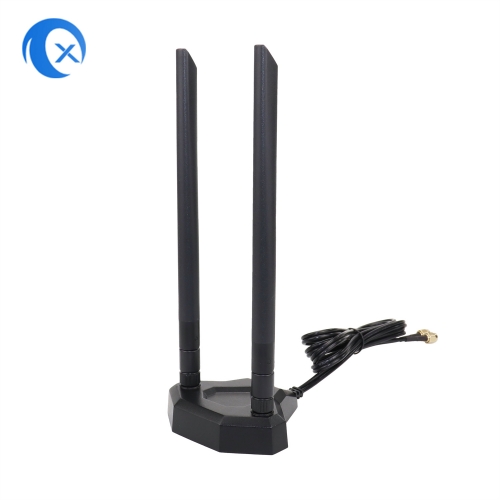

2.4/5.8G Dual-band 5dBi high gain magnetic mount WiFi extender replaceable antenna with RG174 cable for AP PC PCI card
Item No.: TX-AB035
Frequency Range: 2.4 / 5.8 GHz
Gain: 5 dBi
Connector: SMA RP male
Part Number: TX-AB035
Net weight: 151.6g
Gain: 5 dBi
Connector: SMA RP male
Part Number: TX-AB035
Net weight: 151.6g
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 2.4 / 5.8 GHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 5dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | PCB | |||||||||||
| Material of Plastic | ABS / PC+PBT | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | SMA RP male | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
