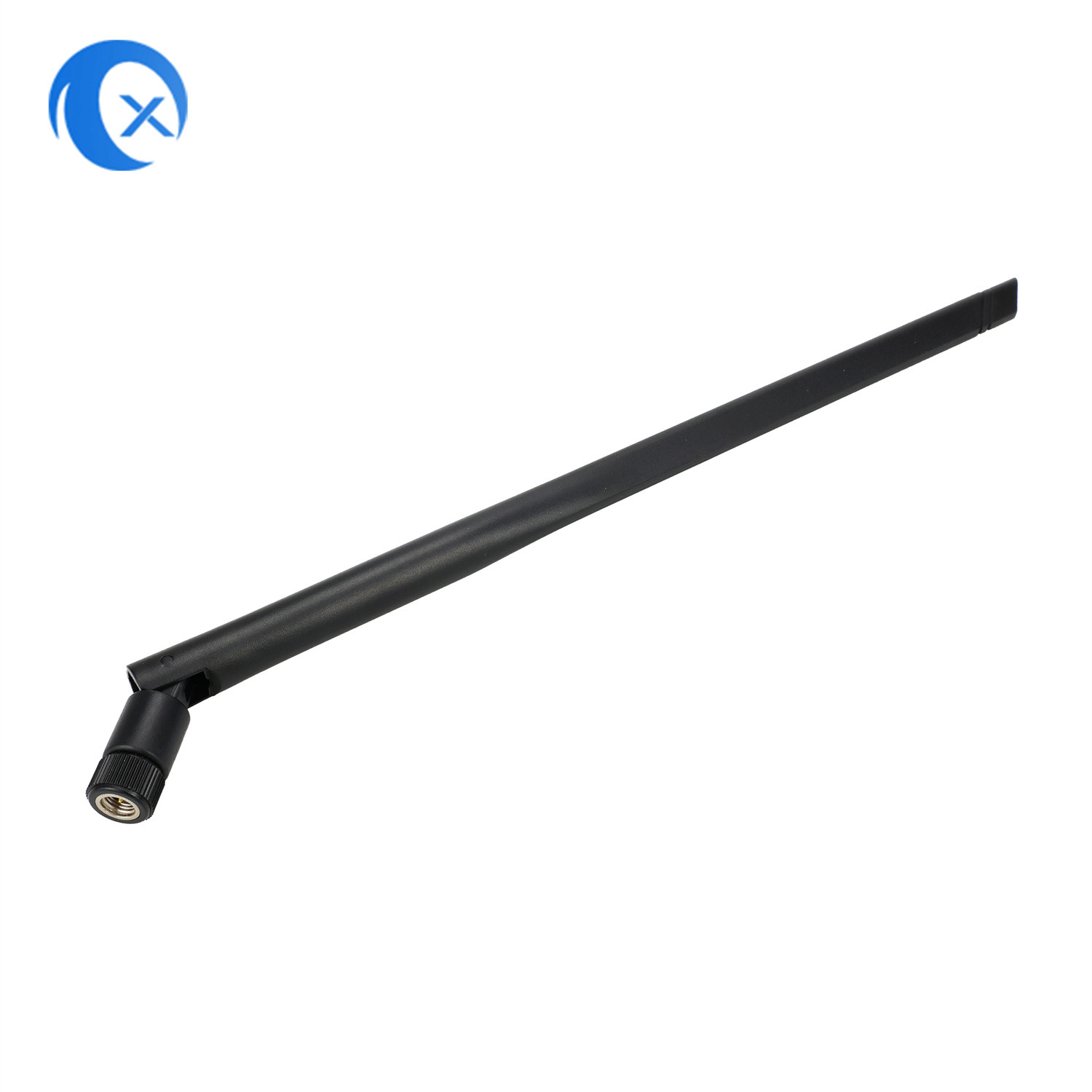

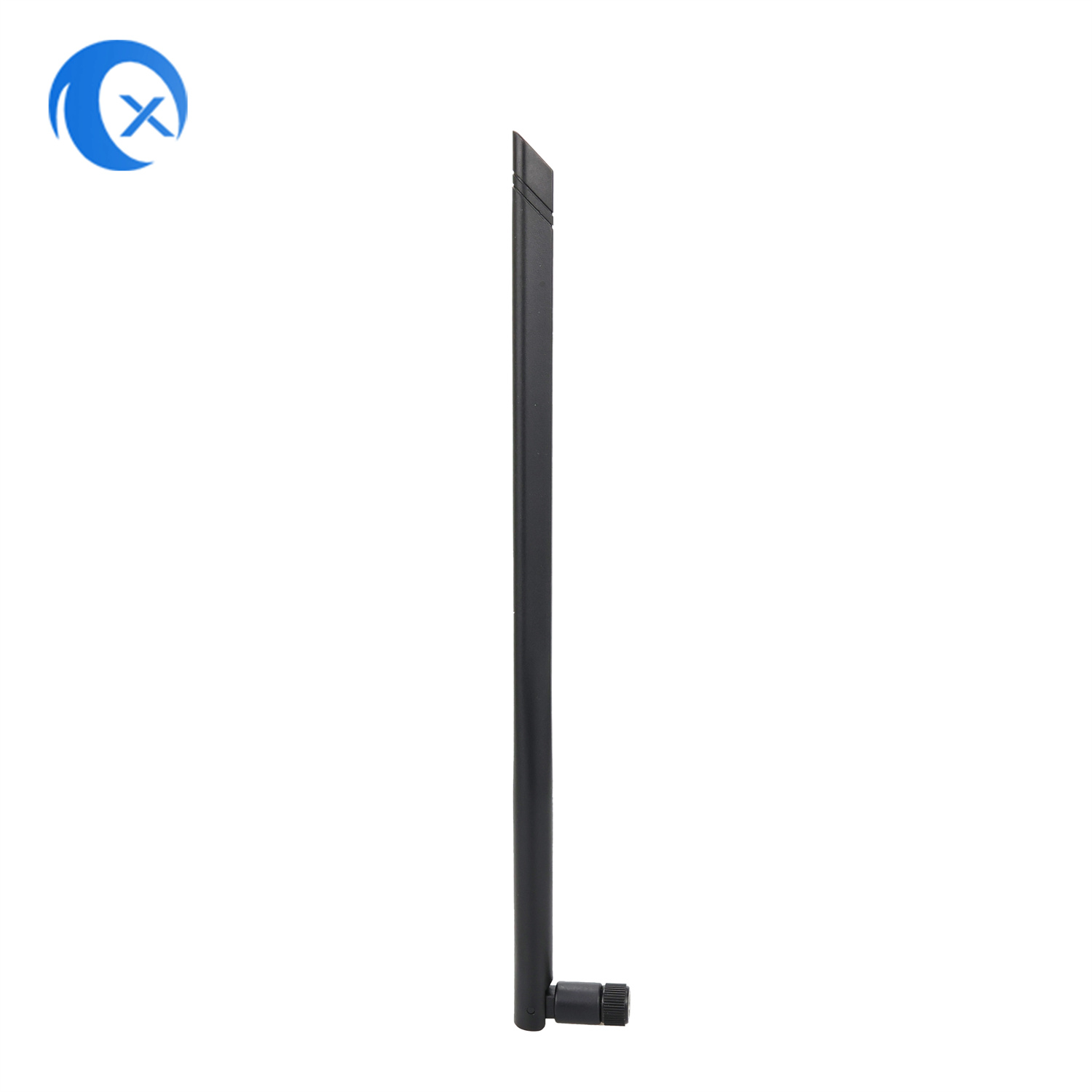

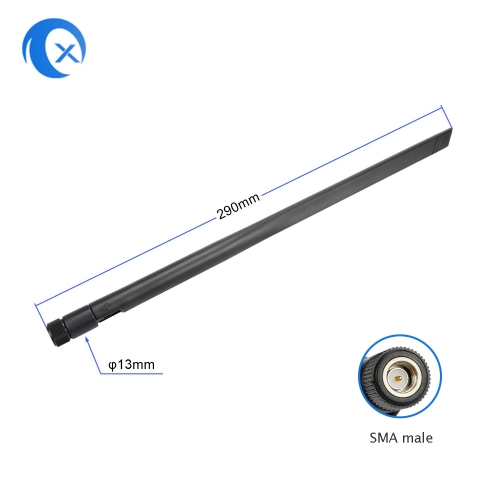

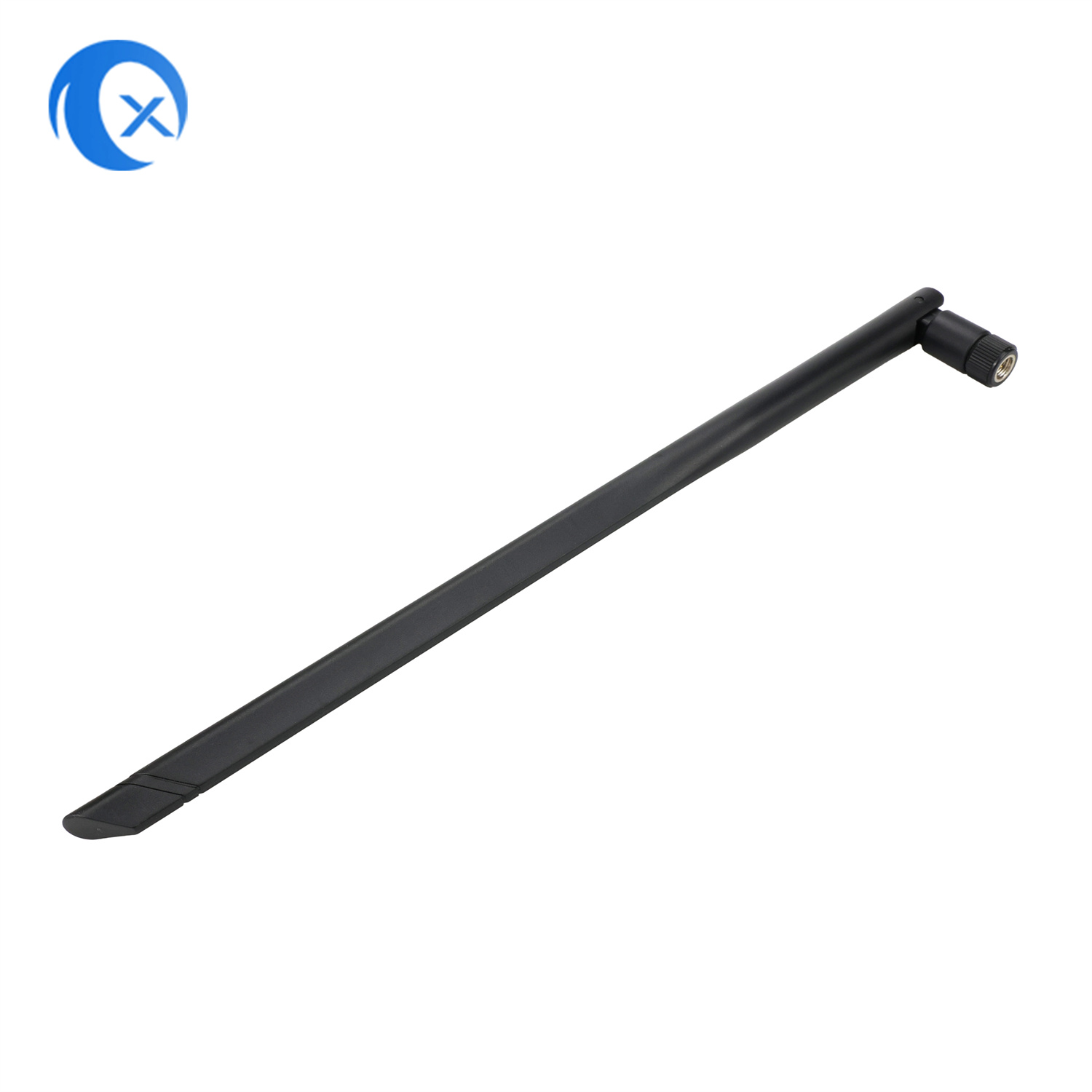

2.4G 5.8G dual-frequency antenna Foldable WIFI antenna Rubber Blade Shape antenna
Item No.: TX-AP145
Frequency Range: 2.4/5.8GHz
Gain: 7 dBi -5.8GHz, 5dBi-2.4GHz
Connector: SMA male connector
Net weight: 20.8g
Part Number: TX-AP145
Gain: 7 dBi -5.8GHz, 5dBi-2.4GHz
Connector: SMA male connector
Net weight: 20.8g
Part Number: TX-AP145
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 2.4/5.8GHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 7.0 dBi-5.8GHz, 5dBi-2.4GHz | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | PCB+SPRING | |||||||||||
| Material of Plastic | ABS/POM | |||||||||||
| Cable Type | N/A | |||||||||||

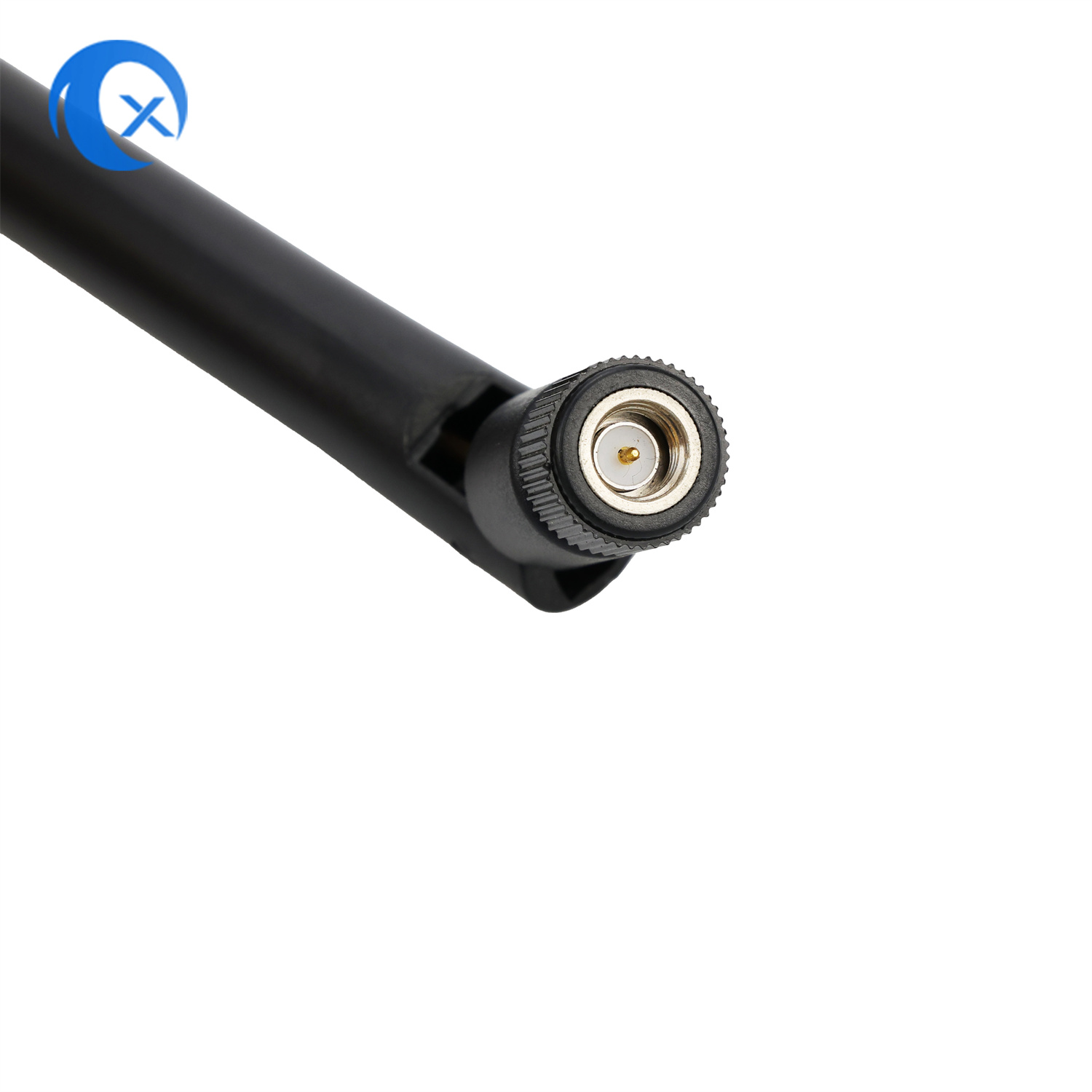

| Connector Type | SMA male (inner pin) | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
