Connector mount

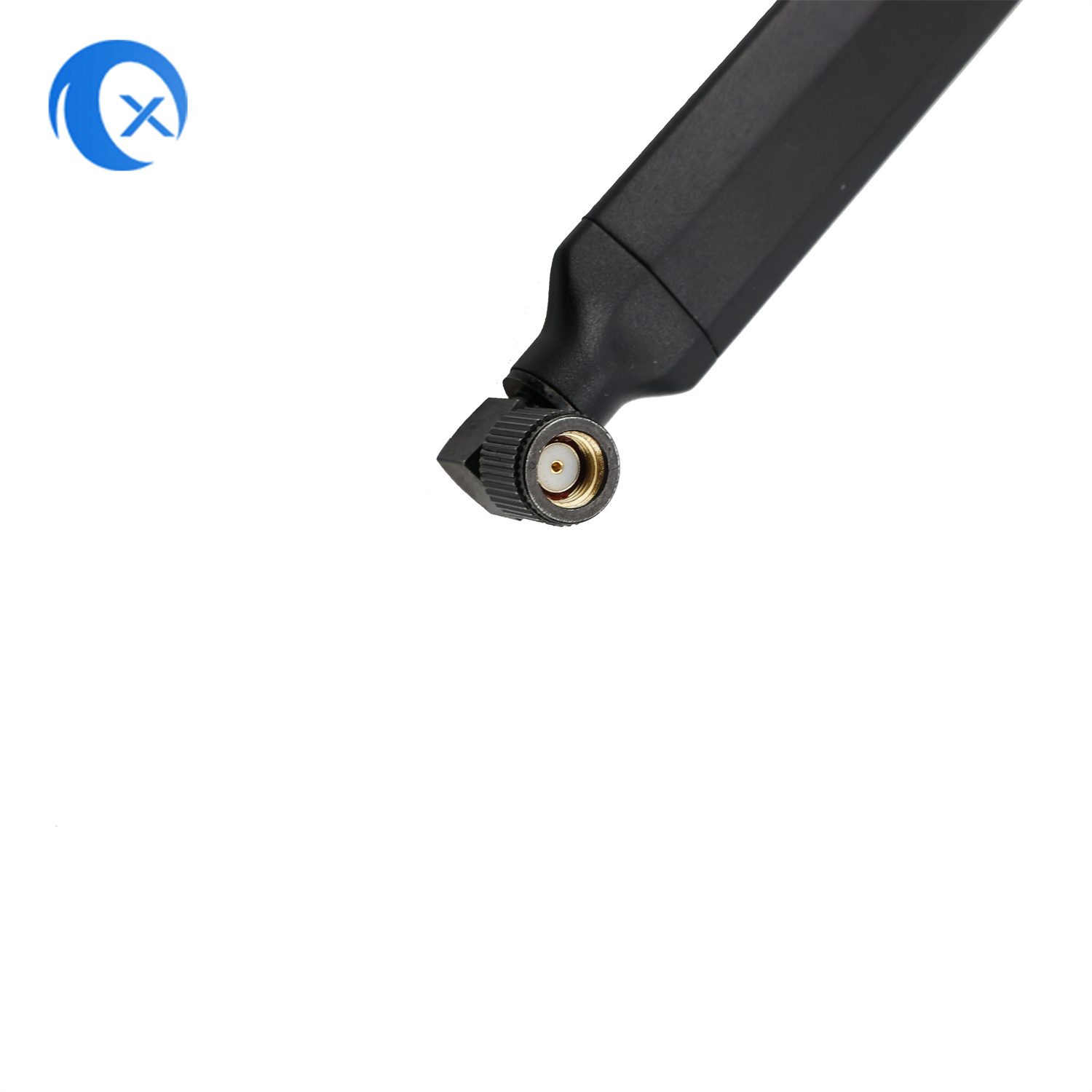

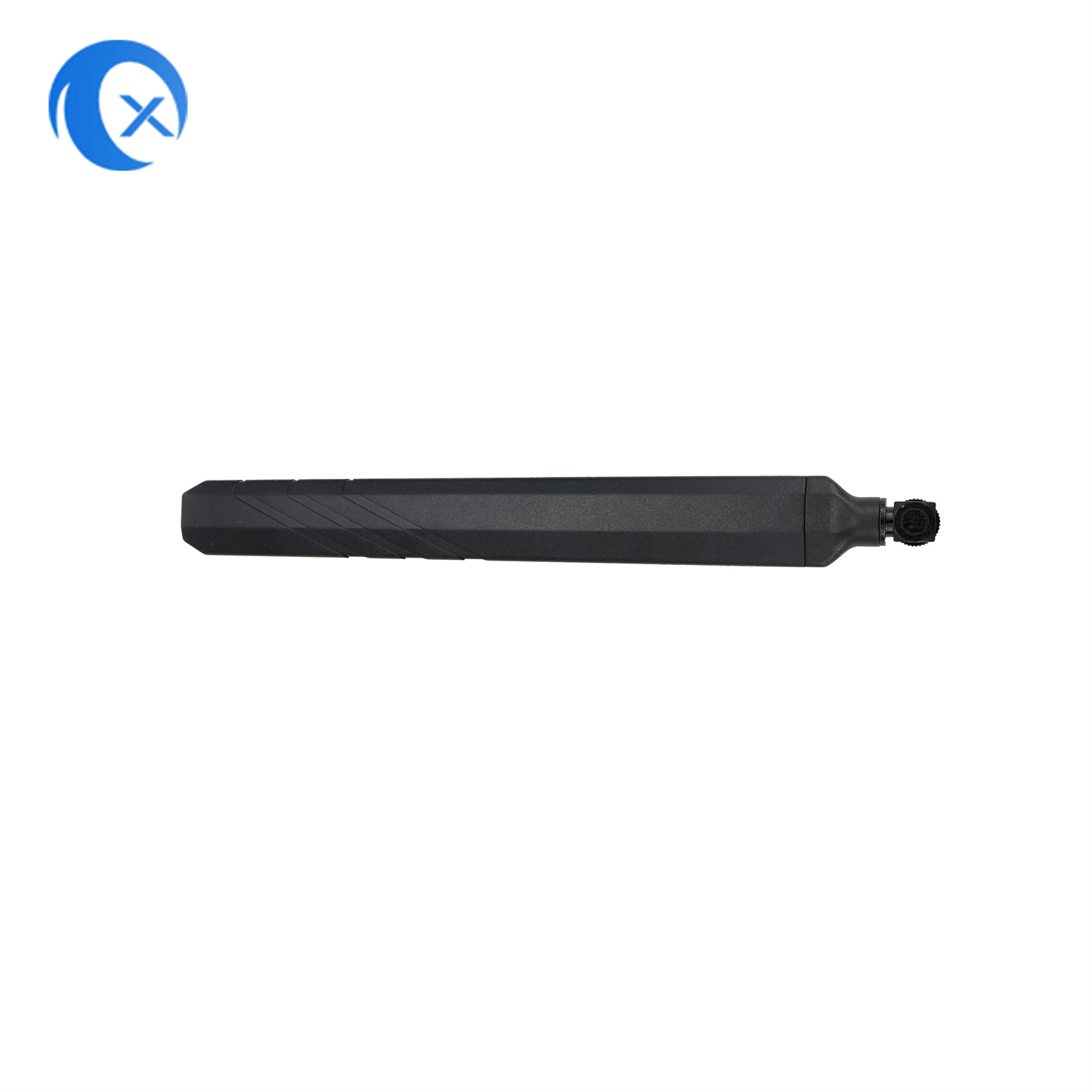

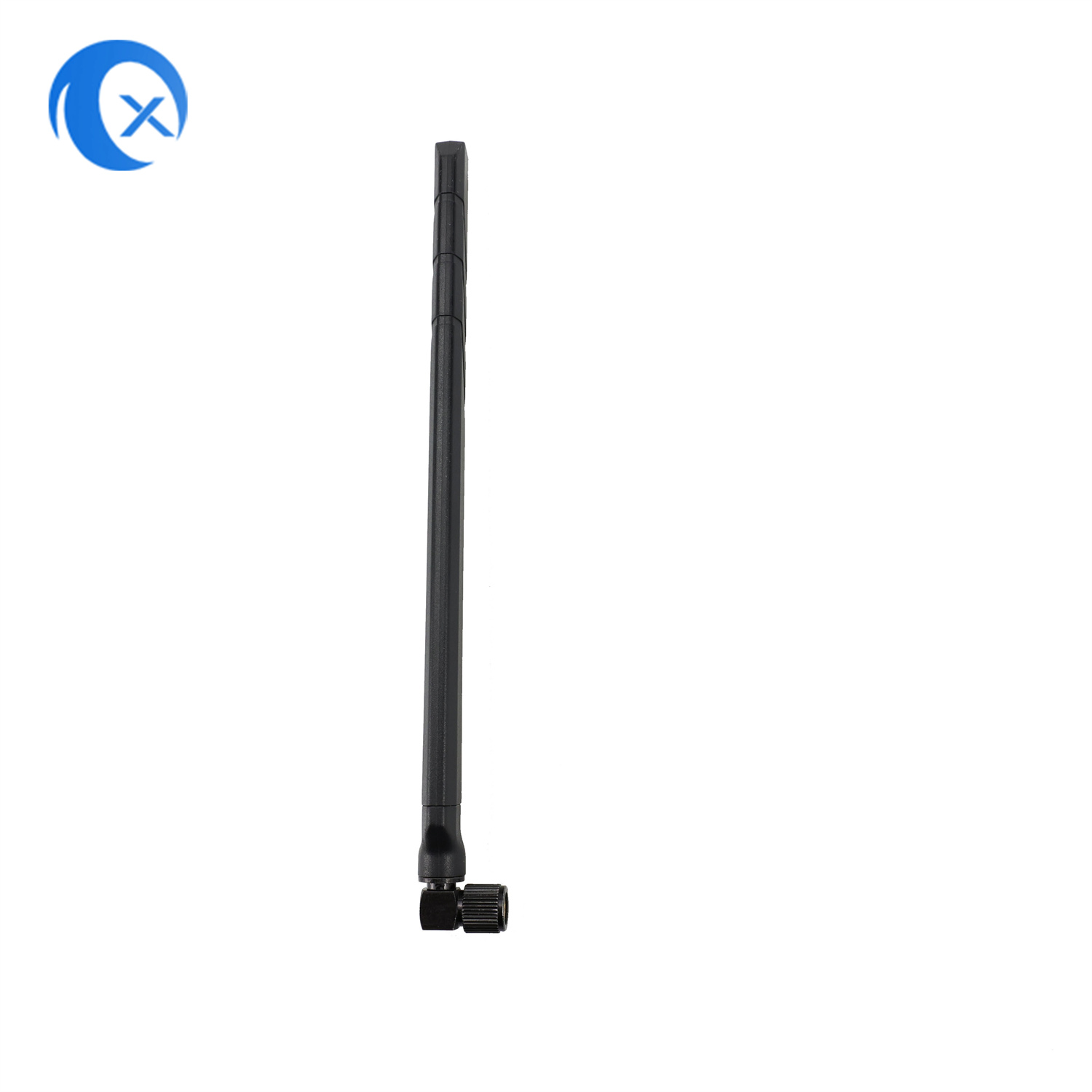

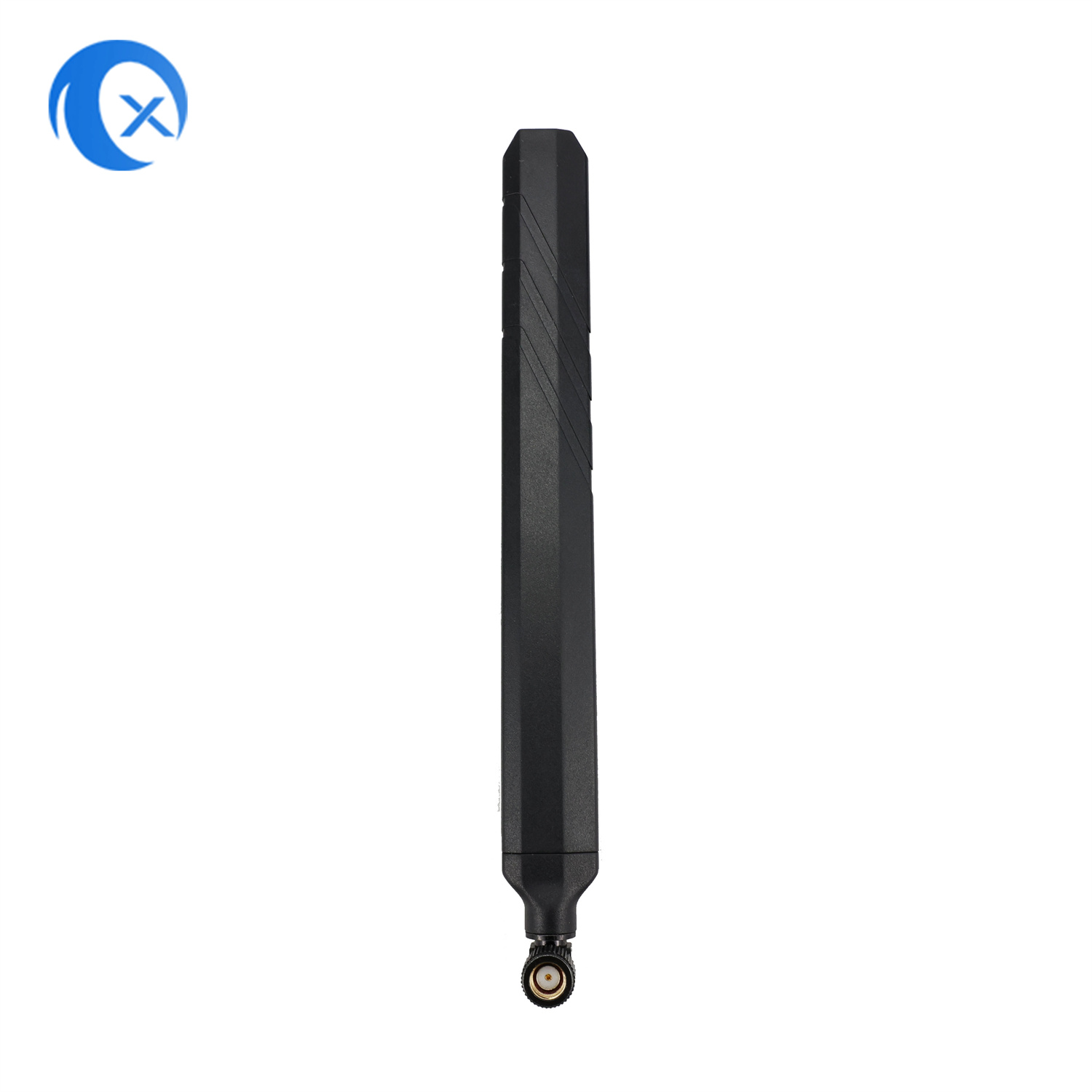

2.4G Fixed right angle external 5dBi high gain hot selling Omnidirectional WIFI paddle antenna with SMA RP male connector mount
Item No.: TX-AP178
Frequency Range: 2.4GHz
Gain: 5 dBi
Connector: SMA RP male connector
Net weight: 24.8g
Part Number: TX-AP178
Gain: 5 dBi
Connector: SMA RP male connector
Net weight: 24.8g
Part Number: TX-AP178
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 2.4GHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 5.0 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | PCB+SPRING | |||||||||||
| Material of Plastic | ABS/POM | |||||||||||
| Cable Type | N/A | |||||||||||
| Connector Type | SMA RP male | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
