Connector mount

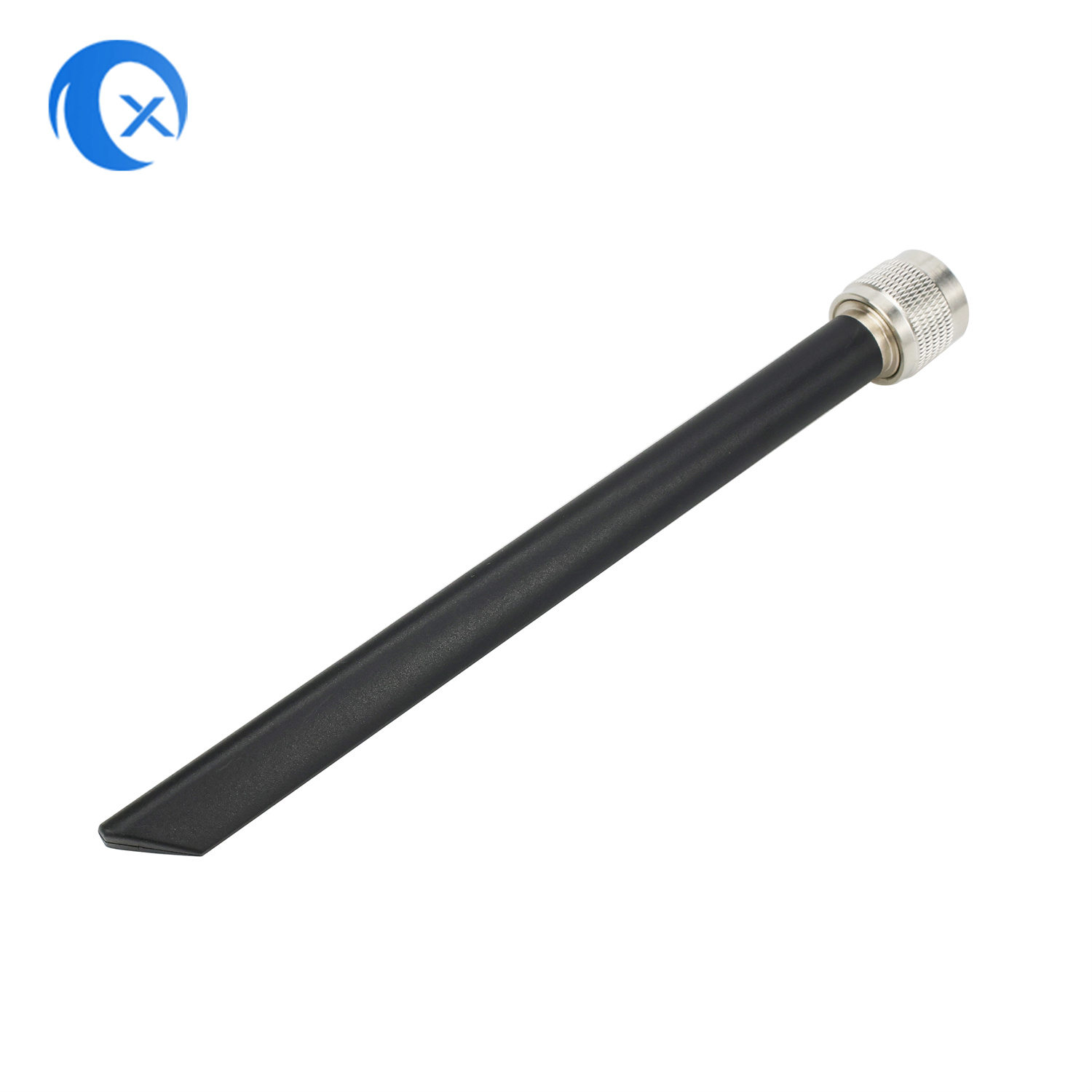

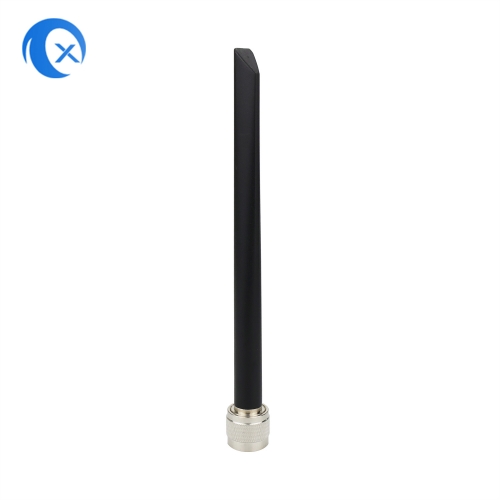

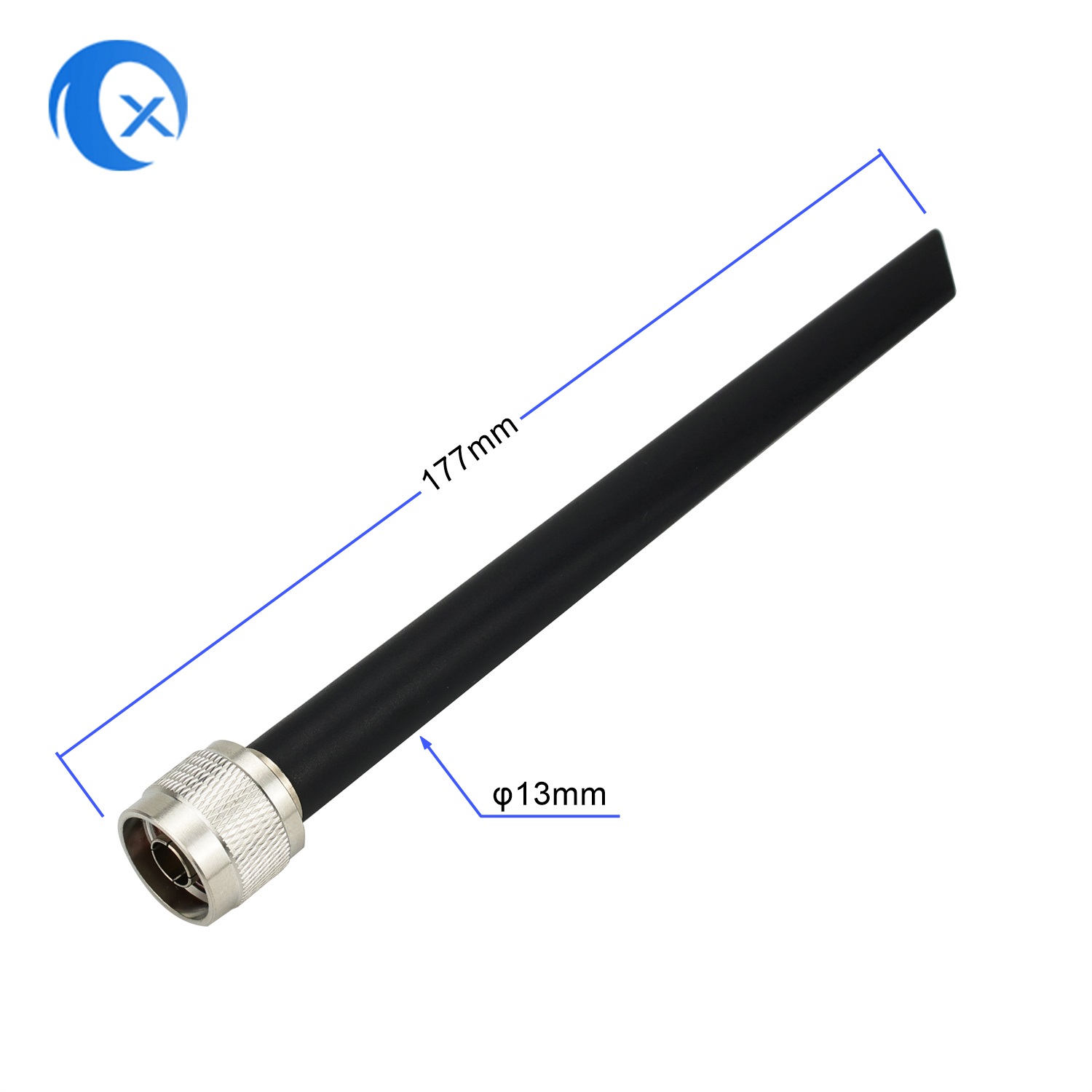

3dBi N-TYPE Male Connector GSM Antenna Omni-directional Whip 868mhz Antenna Long range 900mhz 915mhz Antennas Aerial
Item No.: TX-AP179
Frequency Range: 868-915MHz
Gain: 3 dBi
Connector: N connector
Net weight: 39.1g
Part Number: TX-AP179
Gain: 3 dBi
Connector: N connector
Net weight: 39.1g
Part Number: TX-AP179
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 868-915MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 3.0 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | PCB+SPRING | |||||||||||
| Material of Plastic | ABS/POM | |||||||||||
| Cable Type | N/A | |||||||||||
| Connector Type N | connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
