Connector mount

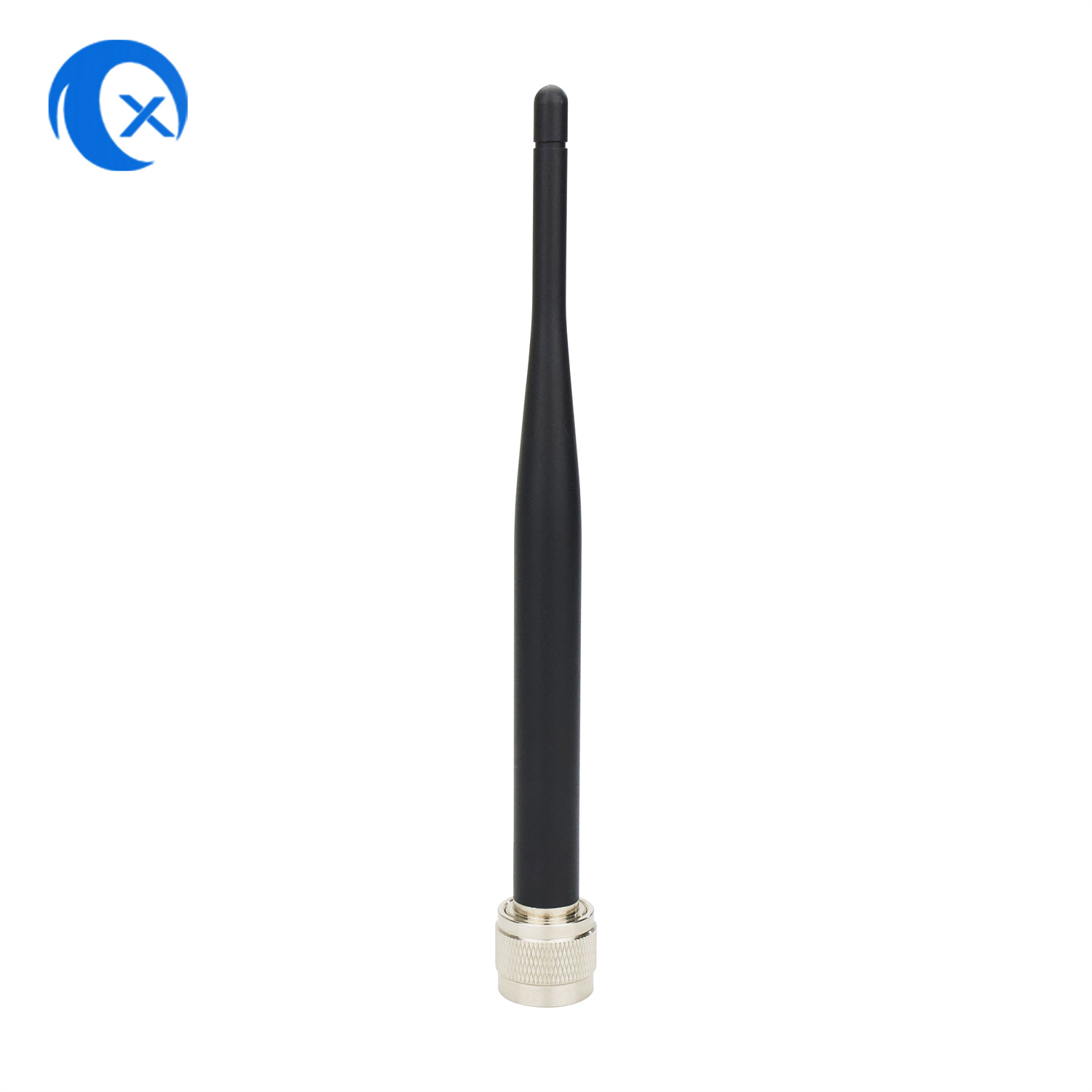

450-470MHz 2dBi rubber duck antenna with N-type male connector mounted
Item No.: TX-Ap180
Frequency Range: 450-470MHz
Gain: 2 dBi
Connector: N connector
Net weight: 39g
Part Number: TX-AP180
Gain: 2 dBi
Connector: N connector
Net weight: 39g
Part Number: TX-AP180
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 450-470MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 2.0 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | PCB+SPRING | |||||||||||
| Material of Plastic | ABS/POM | |||||||||||
| Cable Type | N/A | |||||||||||
| Connector Type N | connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
