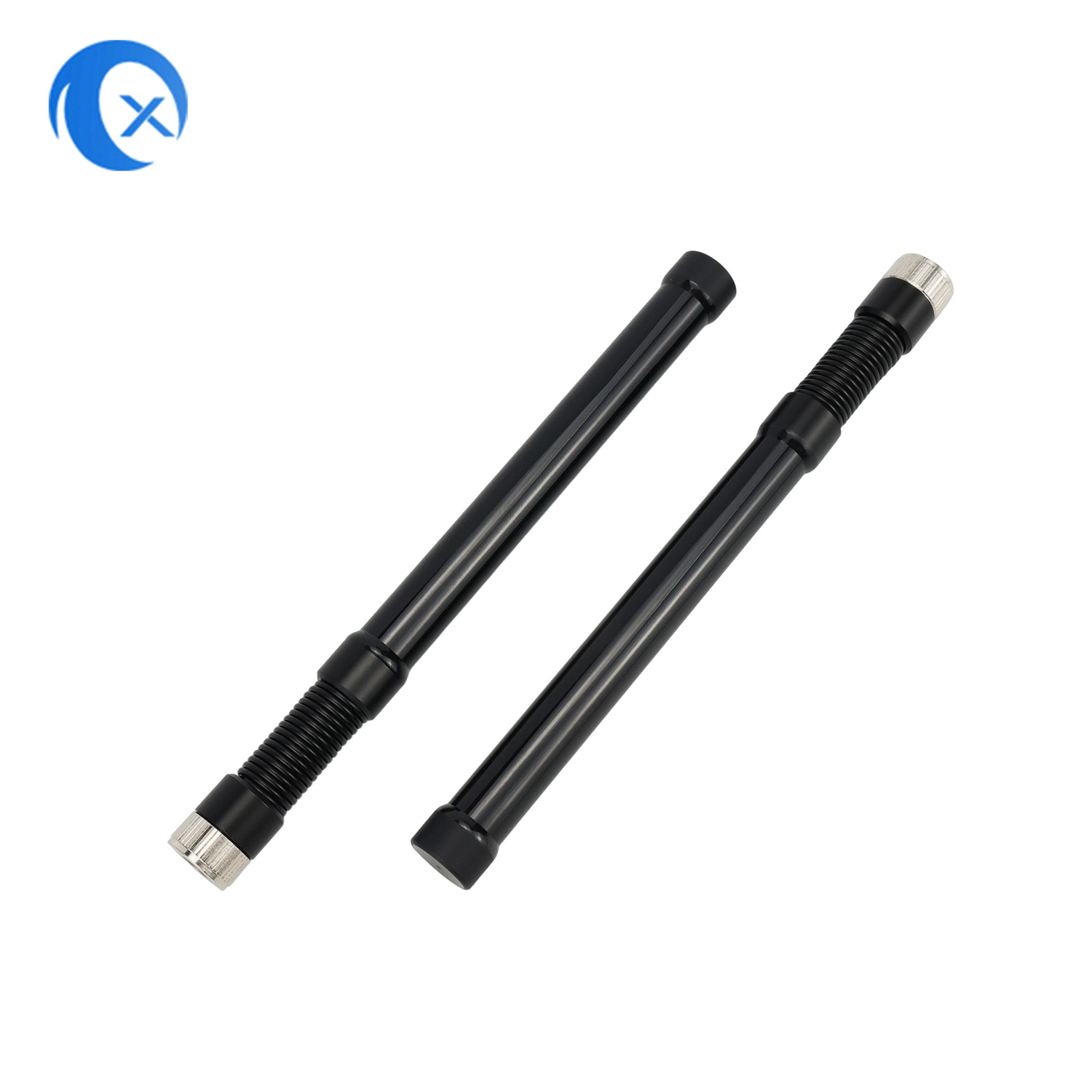

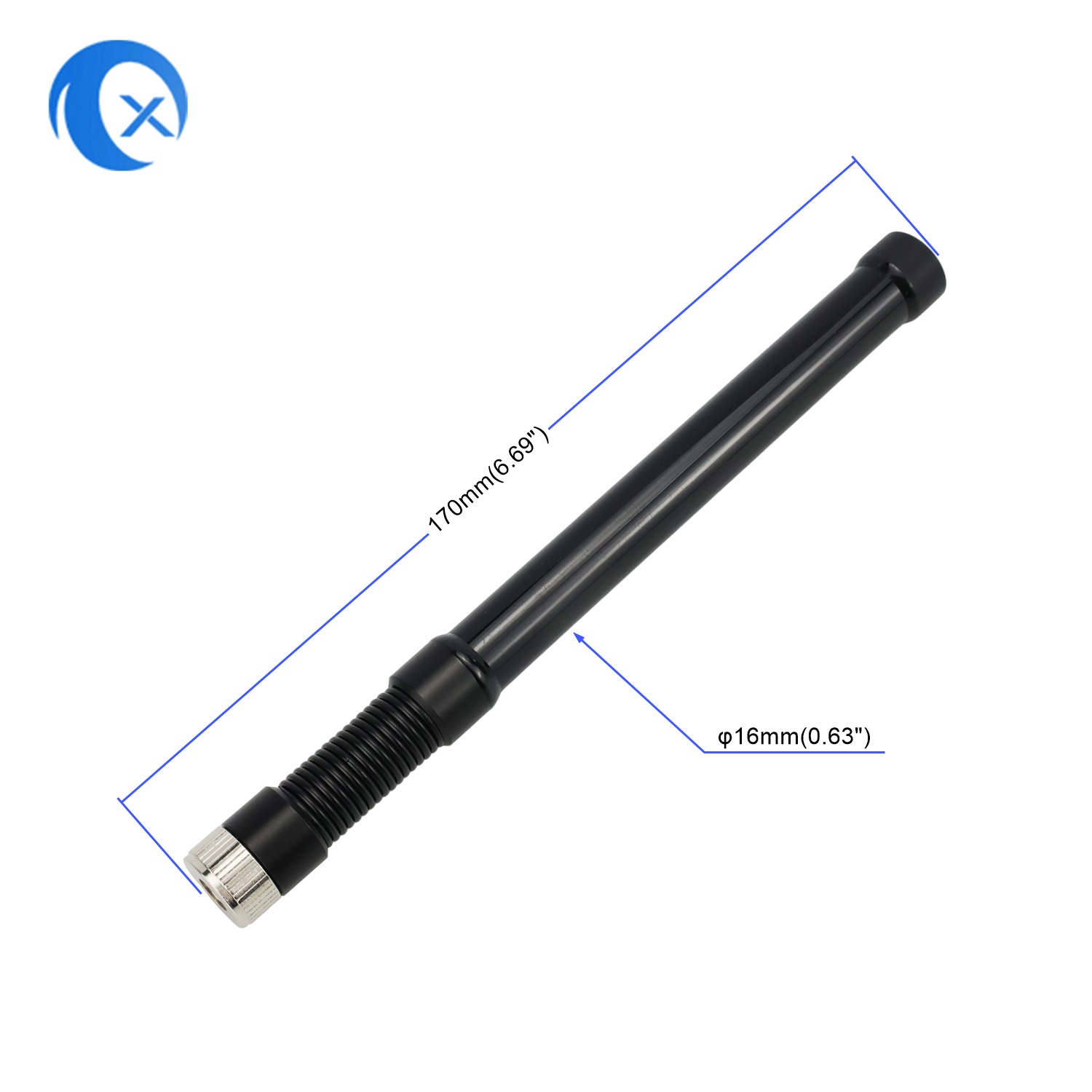

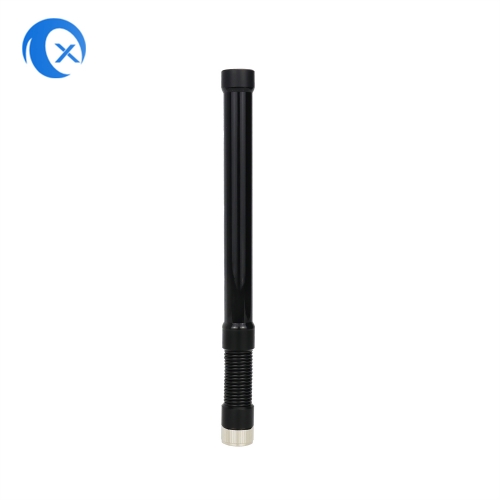

4G Gooseneck Fiberglass Omnidirectional Antenna with SMA Connector
Item No.: TX-HG065
Frequency Range: 698-960MHz, 1710-2700 MHz
Gain: 1dBi / 4dBi
Direction: Omni-directional

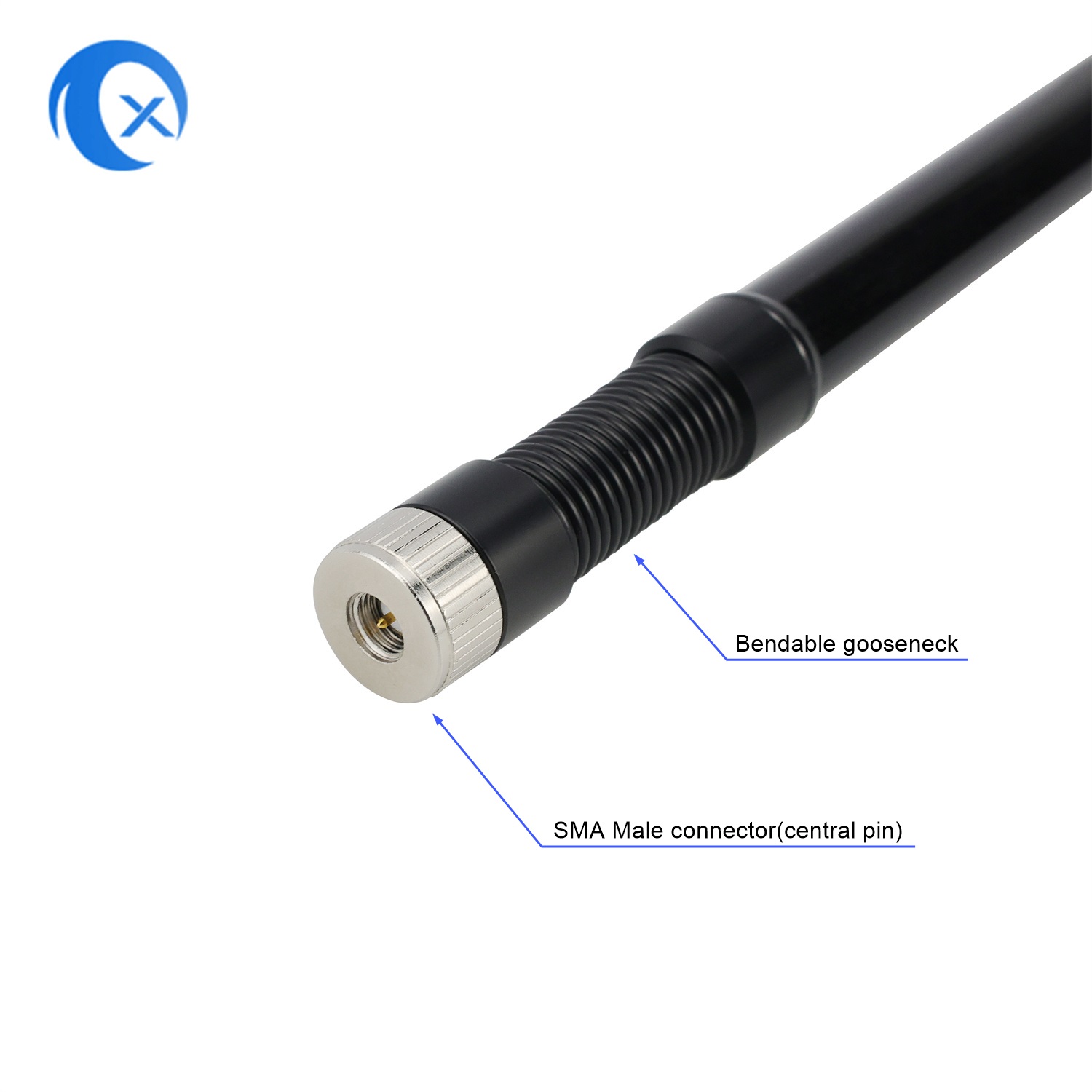

Connector: SMA male connector
Part Number: TX-HG065
Gain: 1dBi / 4dBi
Direction: Omni-directional
Connector: SMA male connector
Part Number: TX-HG065
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 698-960MHz, 1710-2700 MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 1dBi / 4dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | Brass pipe | |||||||||||
| Radome material | fiberglass | |||||||||||
| Cable Type | RG316 | |||||||||||
| Connector Type | SMA male connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
