3G 4G 5G antenna

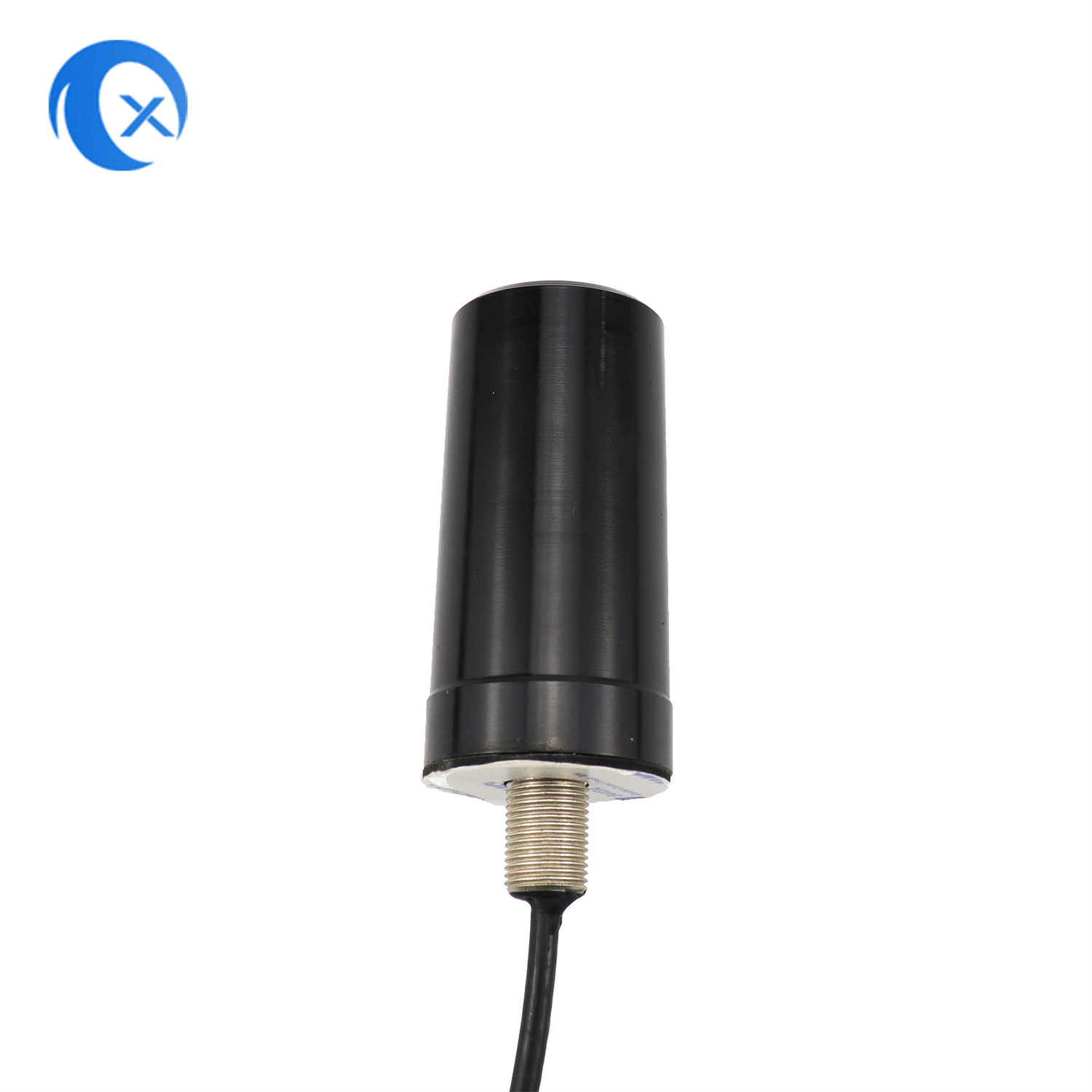

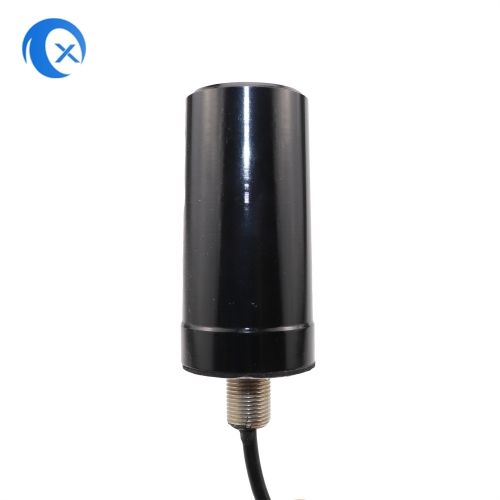

4G LTE Cellular Outdoor Antenna 5dBi Omni M12 Screw Wall Mount with SMA Male connector
Item No.: TX-MH008
Frequency Range: 4G
Gain: 5 dBi
Part Number: TX-MH008
Gain: 5 dBi
Part Number: TX-MH008
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 2.4G | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 5.0 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | PCB+SPRING | |||||||||||
| Material of Plastic | ABS/POM | |||||||||||
| Cable Type | RG174, RG316, or requested | |||||||||||

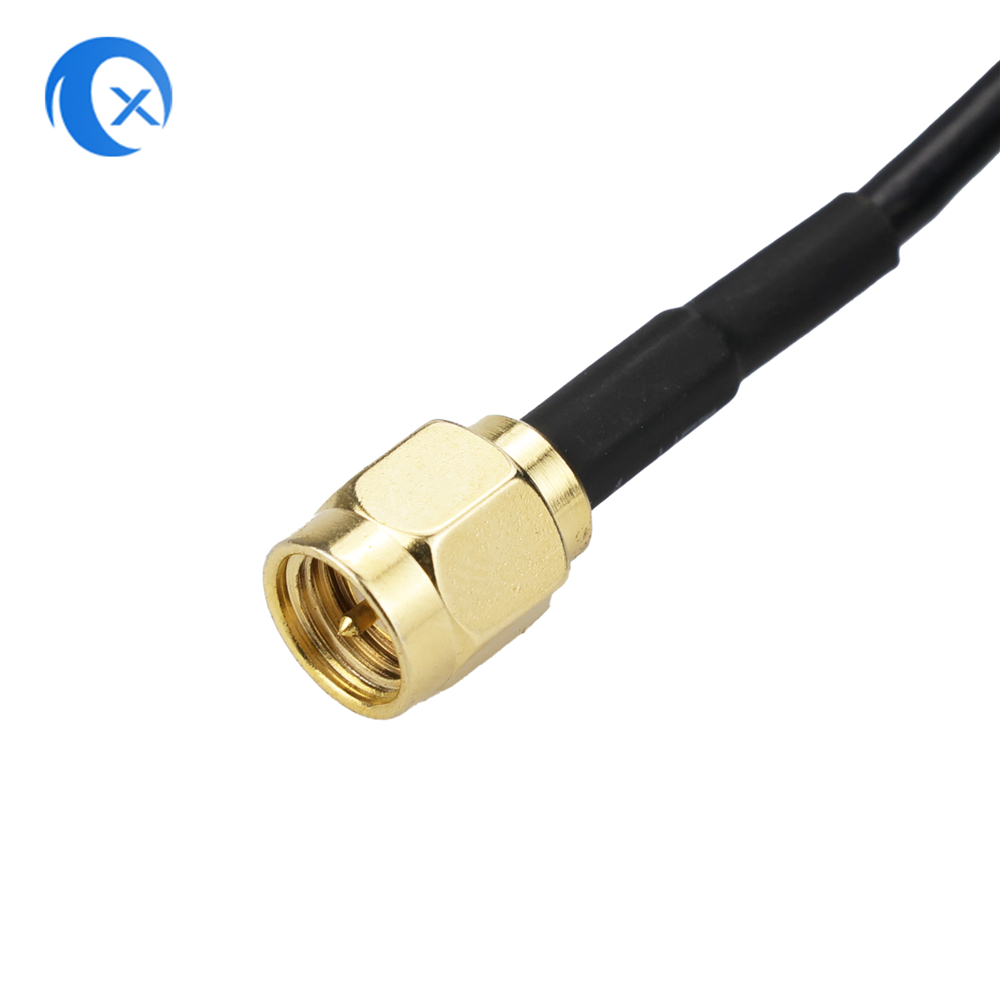

| Connector Type | SMA male connector, or requested | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
