3G 4G 5G antenna

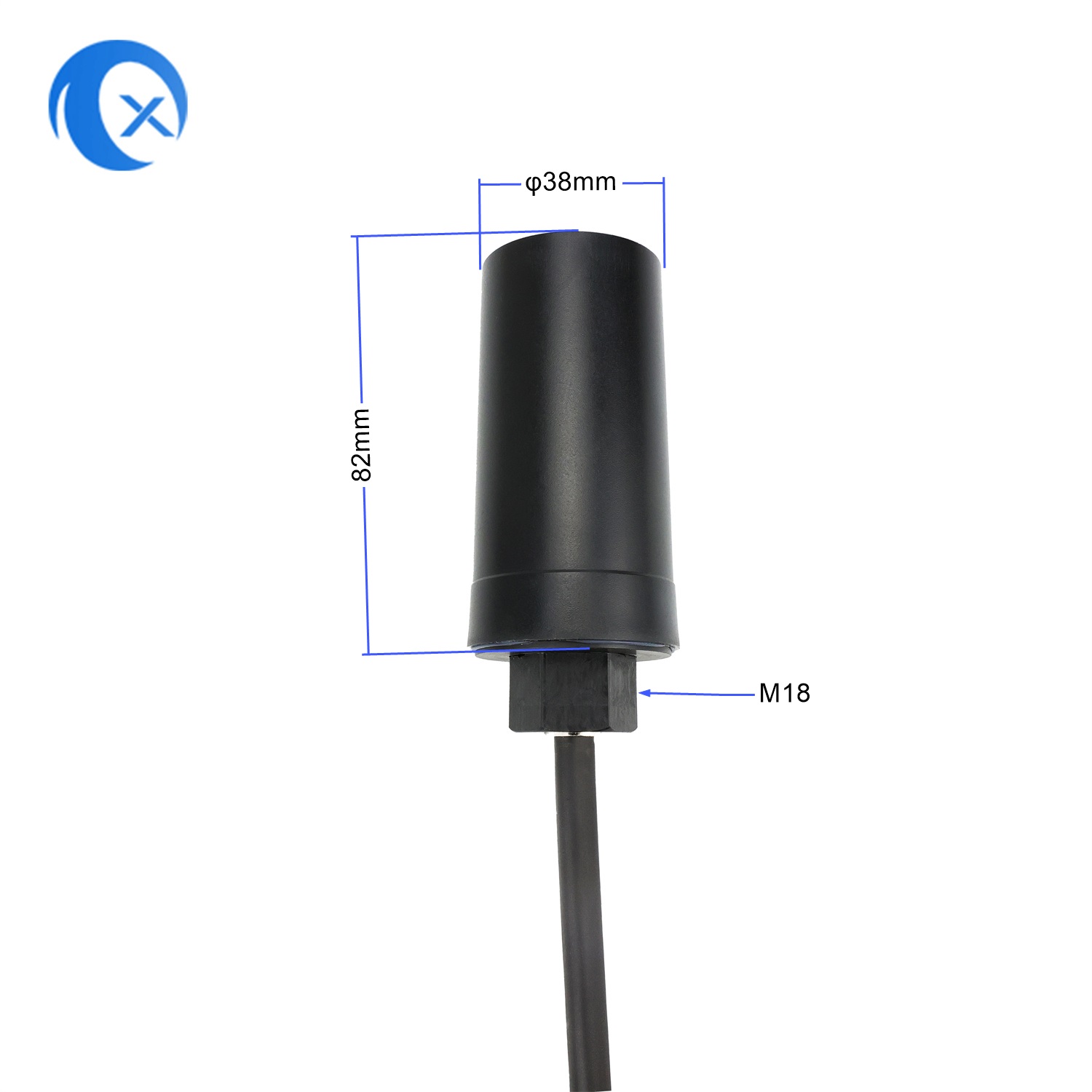

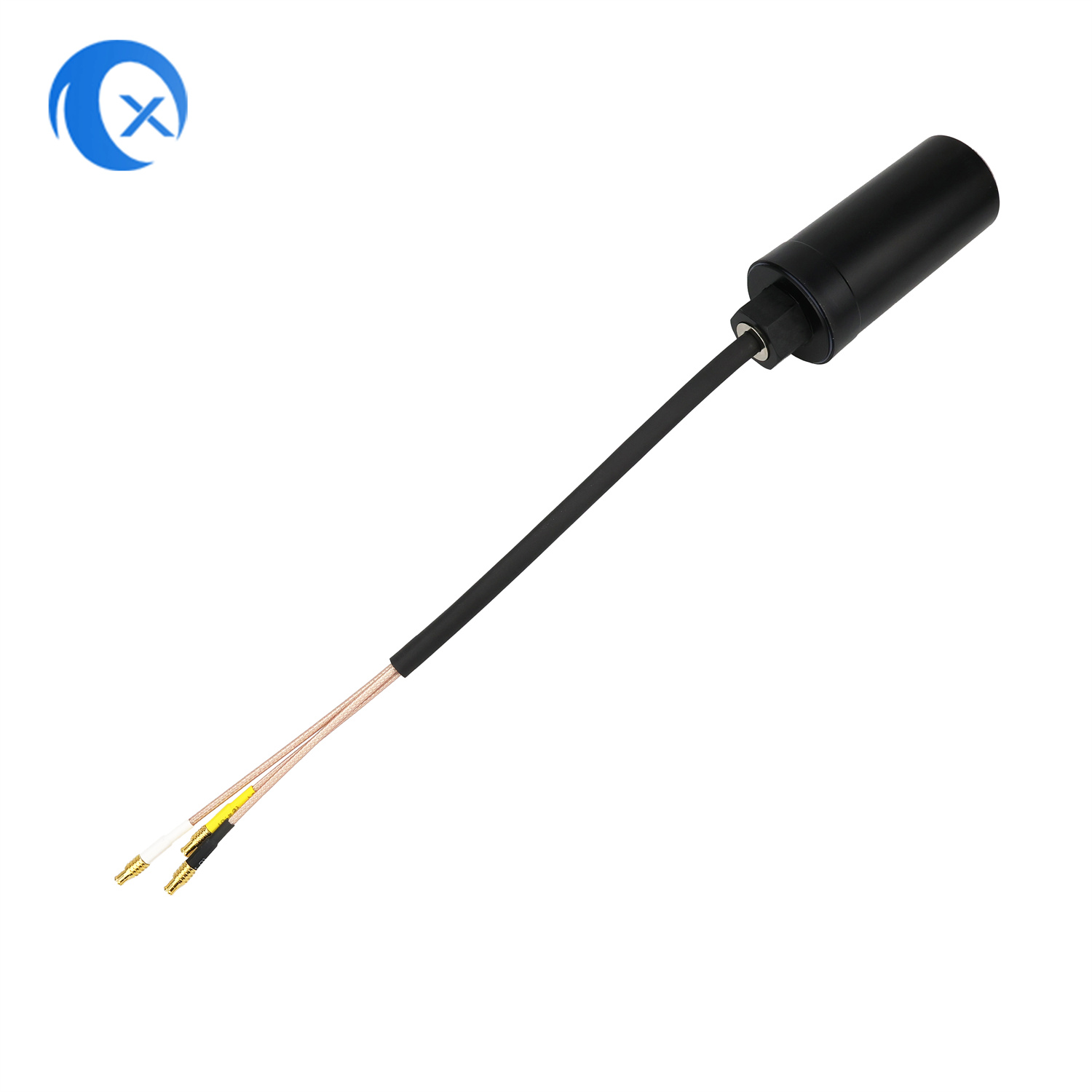

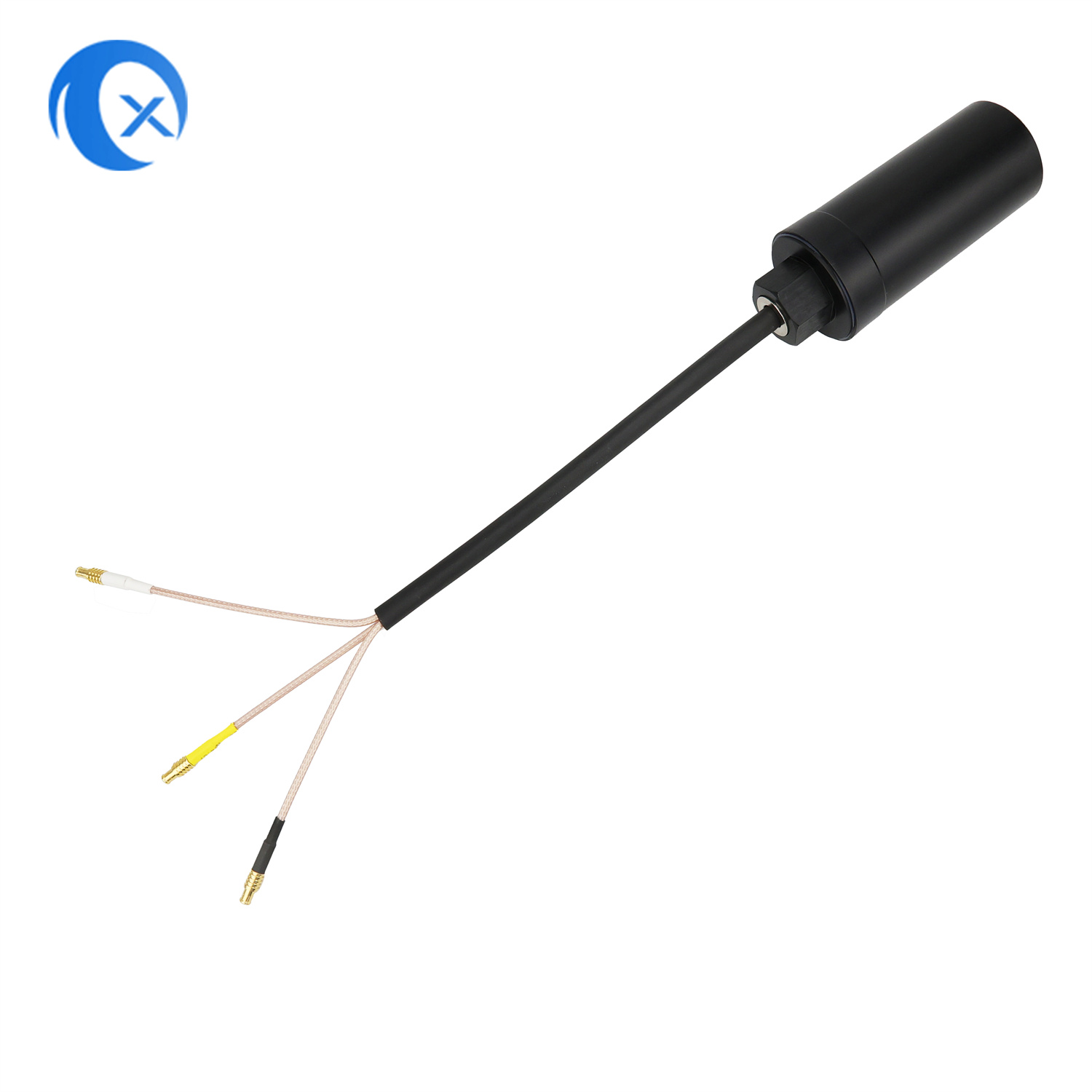

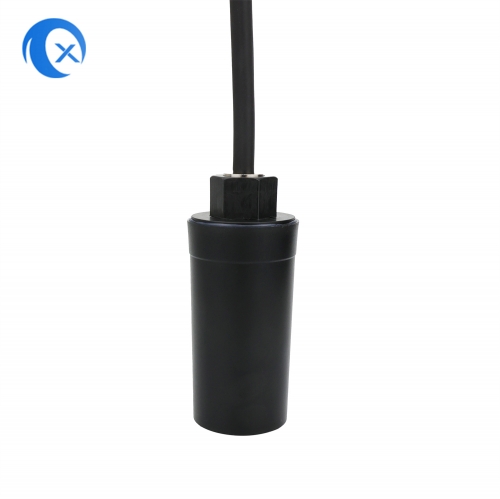

4G LTE GPS WIFI IP68 outdoor waterproof external combo antenna fire detector antenna RG316 cable with MMCX connector
Frequency Range: 1575.42 MHz 2.4G 700-960MHz/1710-2700MHz
Gain: 22dBi / 5 dBi / 5dBi
Cable length: 1.5 meters or by request
Cable type: RG316

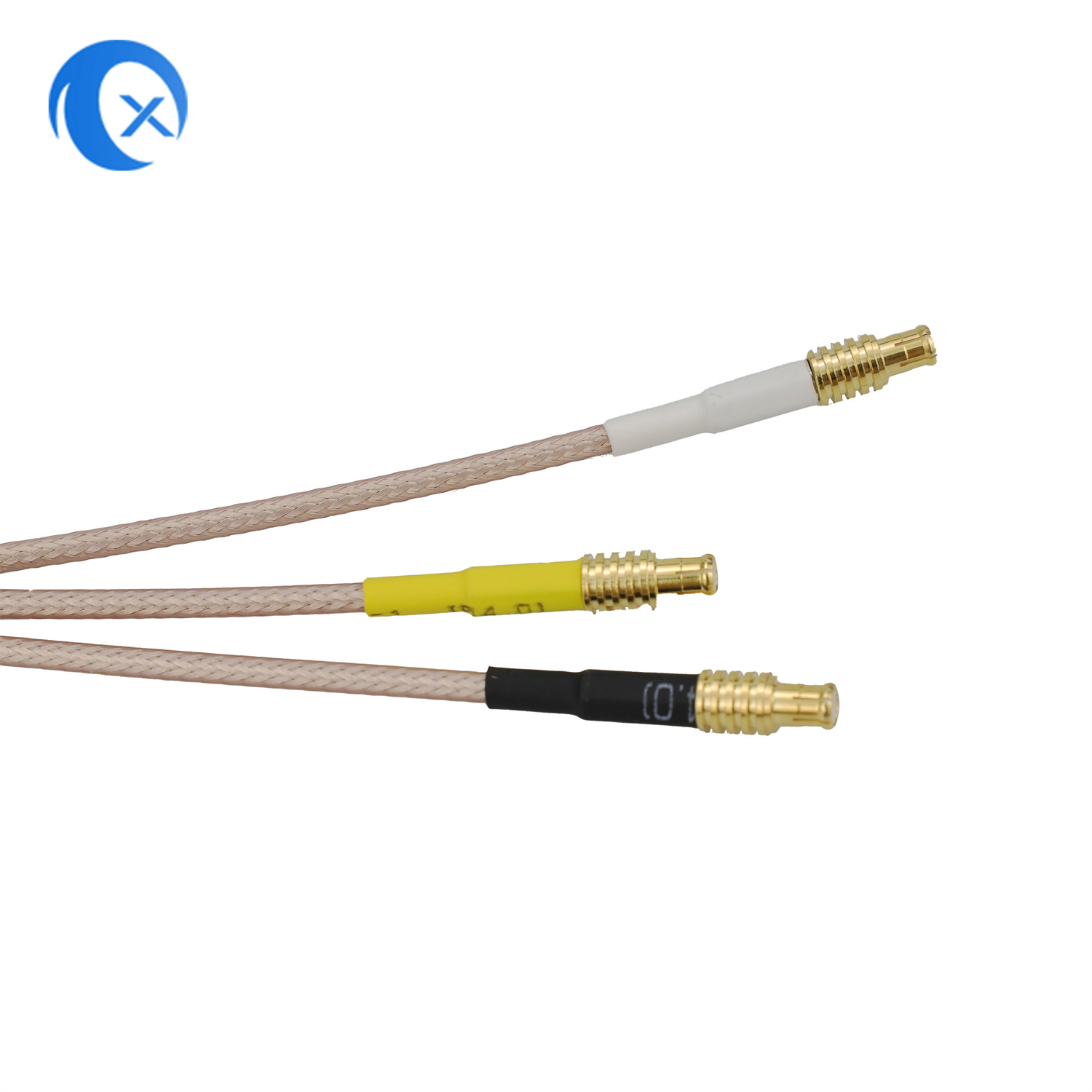

Connector: MMCX Plug
Gain: 22dBi / 5 dBi / 5dBi
Cable length: 1.5 meters or by request
Cable type: RG316
Connector: MMCX Plug
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 1575.42 MHz 2.4G 700-960MHz/1710-2700MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 5 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | PCB+GPS module | |||||||||||
| Material of Plastic | ABS / PC+PBT | |||||||||||
| Cable Type | RG316 | |||||||||||
| Connector Type Cable |
SMA Plug(Inner pin) RG316 LMR100, or by requests |
|||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
