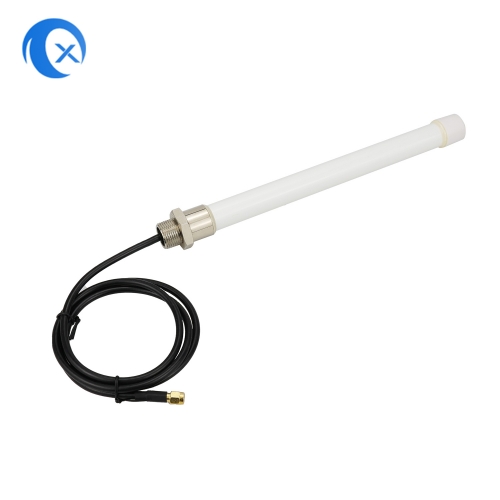

4G Omni Fiberglass Antenna 5dBi, 800/1800/2600MHz Multiband, Outdoor, 3m Cable, Grey
Item No.: TX-HG031
Frequency Range: 698~960MHz/1710~2700MHz
Gain: 1 dBi /3.5dBi
Cable type: RG58 or by request
Connector: N connector
Dimensions: φ20*262mm
Net weight: 199.1g
Part Number: TX-HG031
Gain: 1 dBi /3.5dBi
Cable type: RG58 or by request
Connector: N connector
Dimensions: φ20*262mm
Net weight: 199.1g
Part Number: TX-HG031
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 698~960MHz/1710~2700MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 1 dBi / 3.5dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Radome material | Fiberglass | |||||||||||
| Cable Type | RG58 or by request | |||||||||||
| Connector Type | N male connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
