Fiberglass antenna

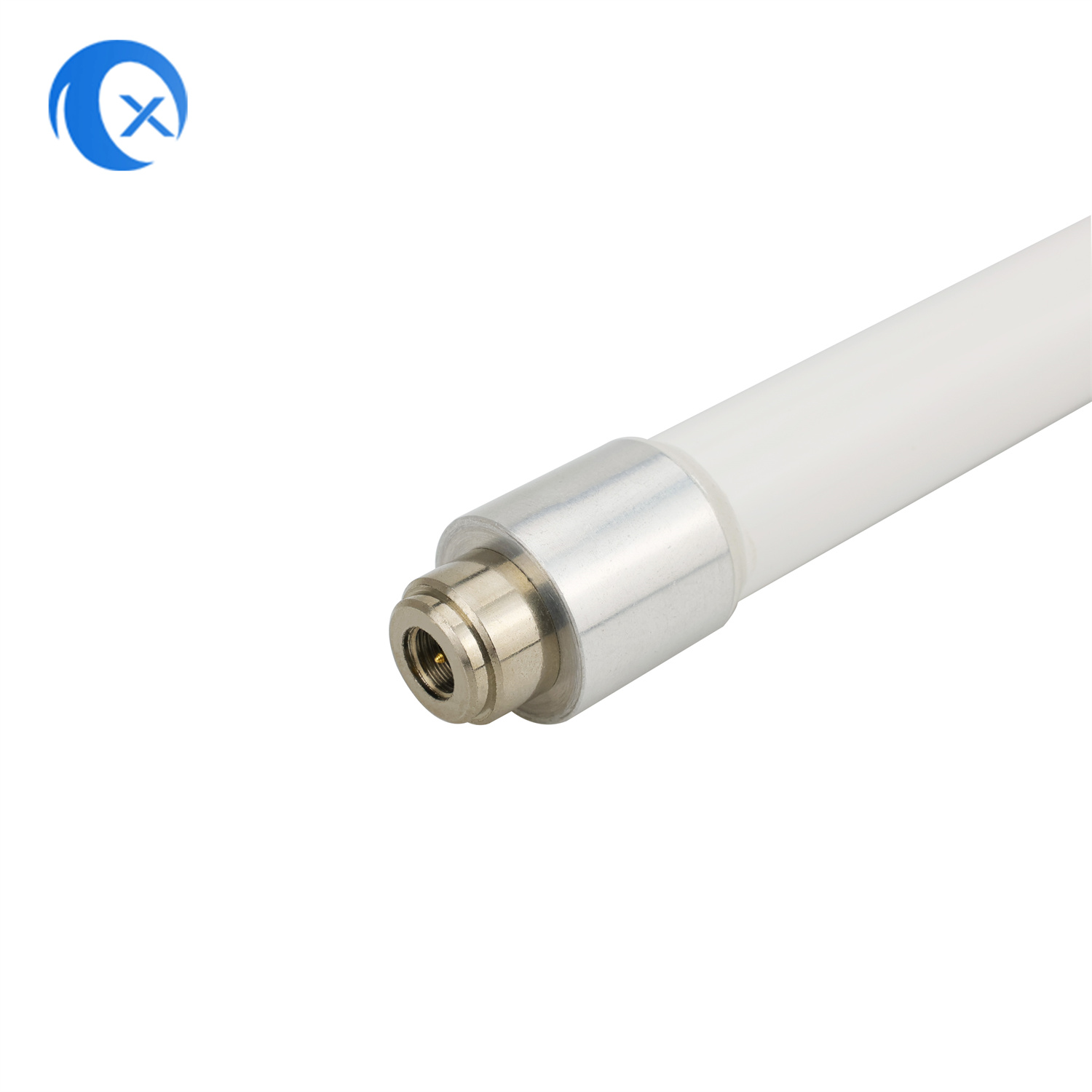

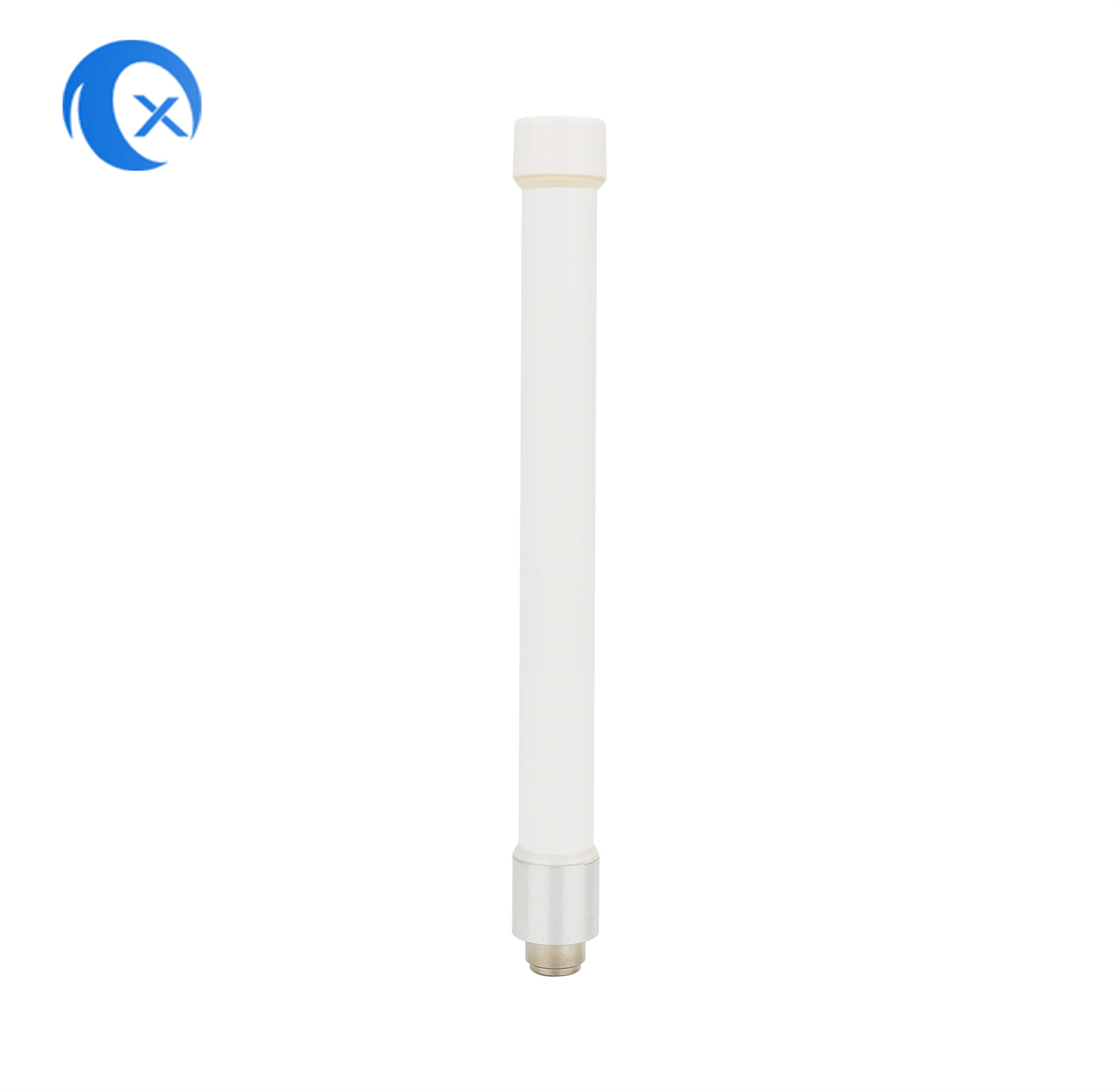

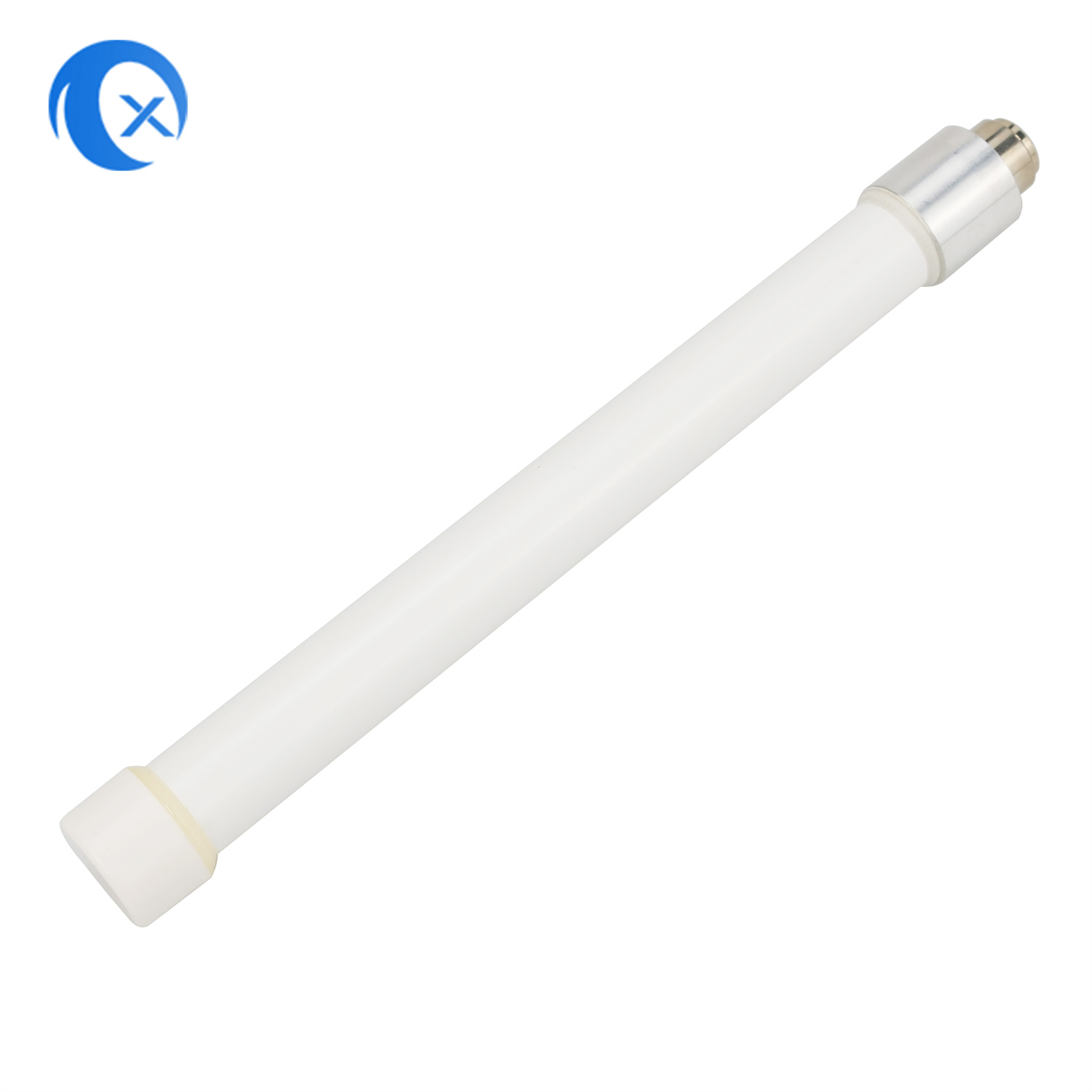

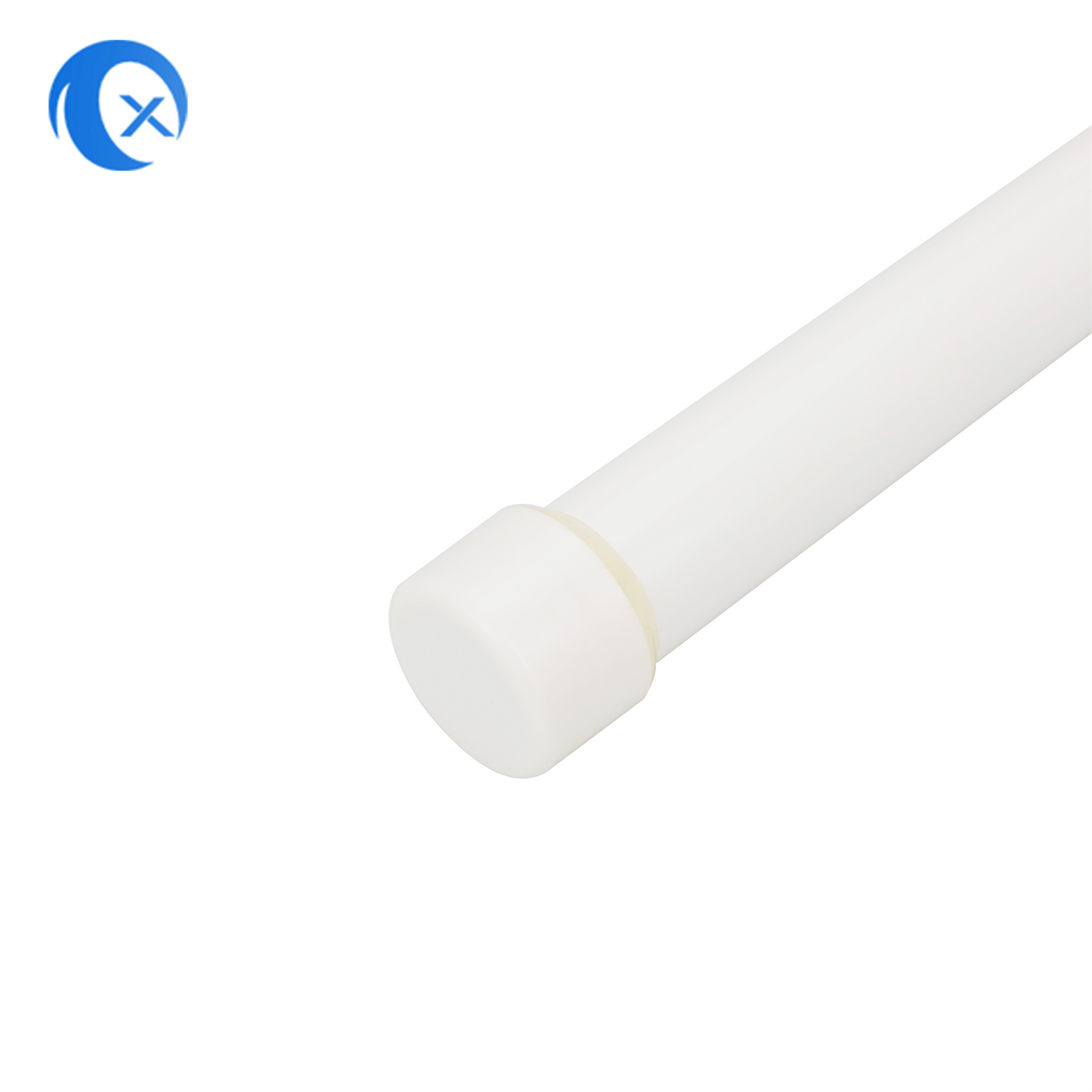

5G 5.8G 5dBi Outdoor Waterproof Fiberglass Antenna With SMA Male Connector
Item No.: TX-HG043
Frequency Range: 5150-5850 MHz
Connector: SMA male connector

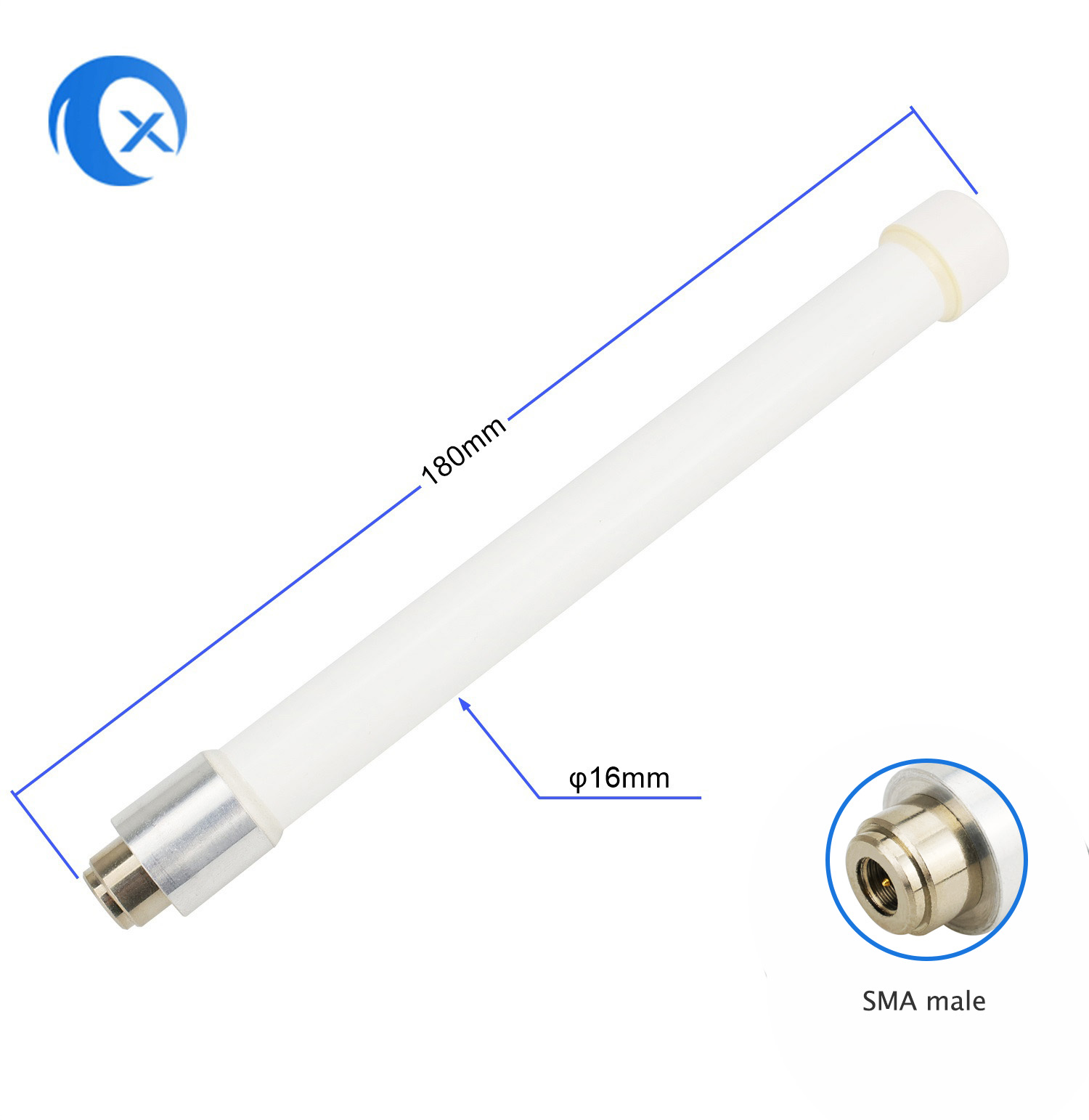

Dimensions: φ16*180 mm
Radome color: Grey, Black, White
Part Number: TX-HG043
Connector: SMA male connector
Dimensions: φ16*180 mm
Radome color: Grey, Black, White
Part Number: TX-HG043
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 5150-5850 MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 5 dBi | |||||||||||
| Polarization | Vertical | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Radome material | Fiberglass | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | SMA male connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
