Fiberglass antenna

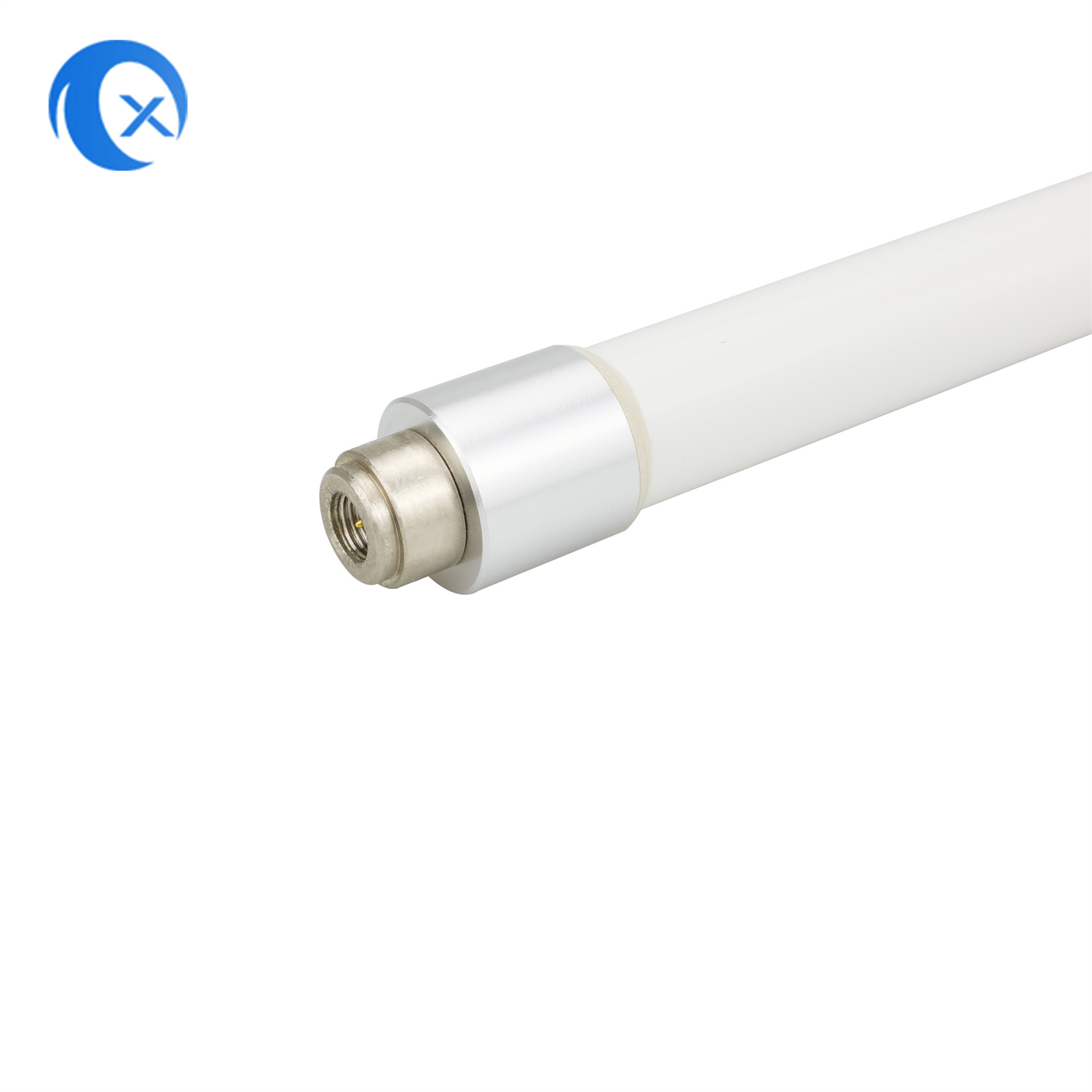

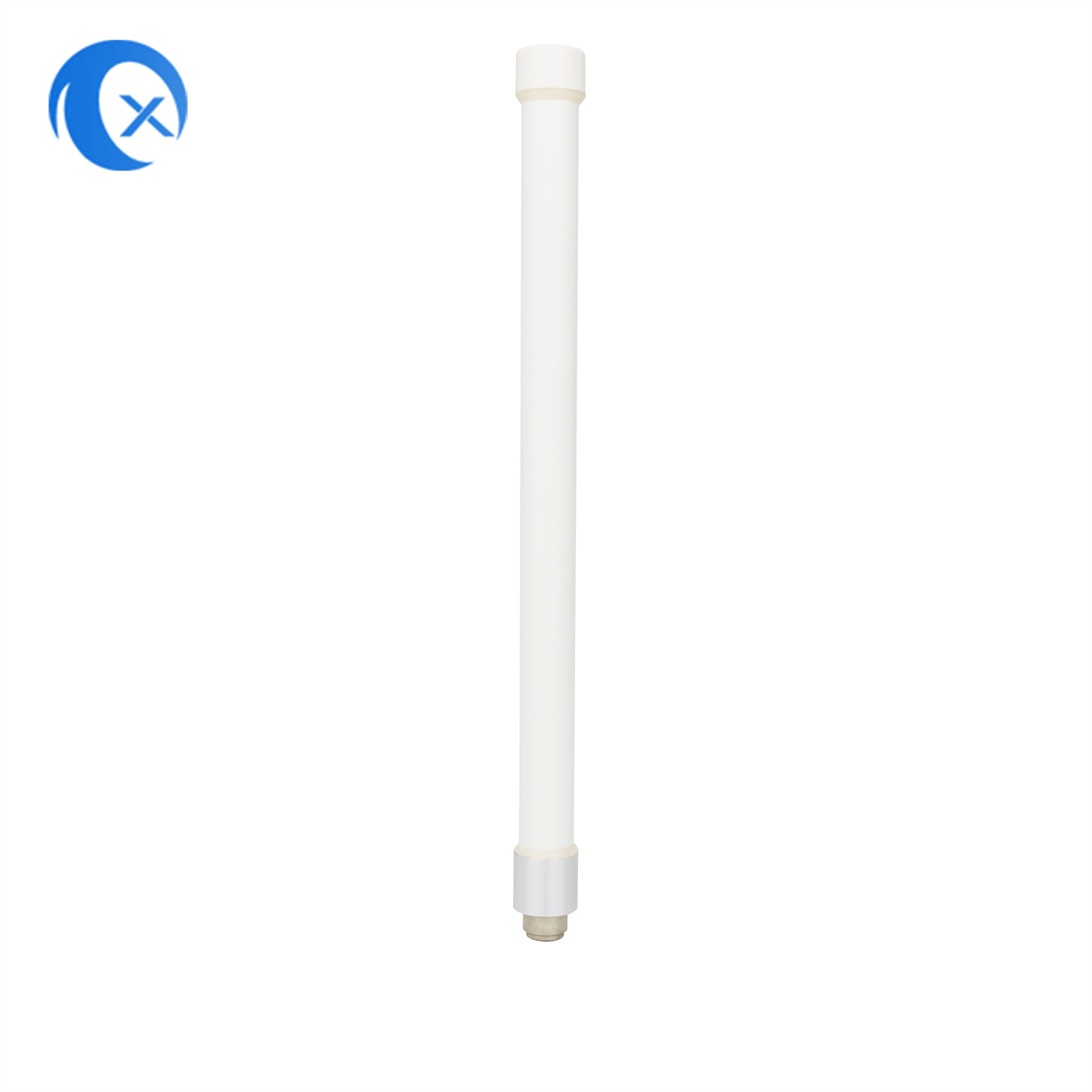

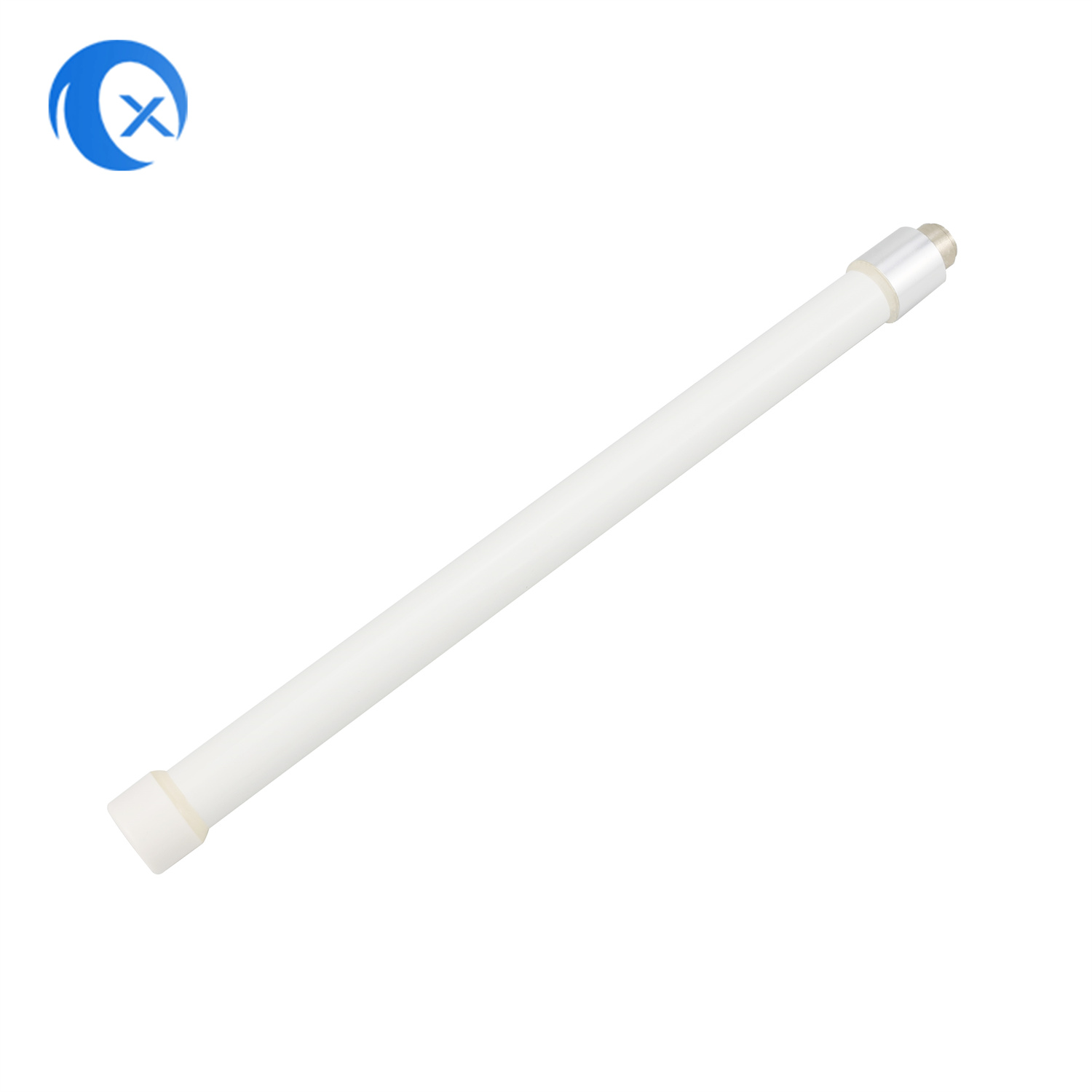

6-7 GHz ultra-wideband omnidirectional fiberglass antenna 9dBi with SMA connector
Item No.: TX-HG041
Frequency Range: 6000-7000 MHz
Connector: SMA Male connector

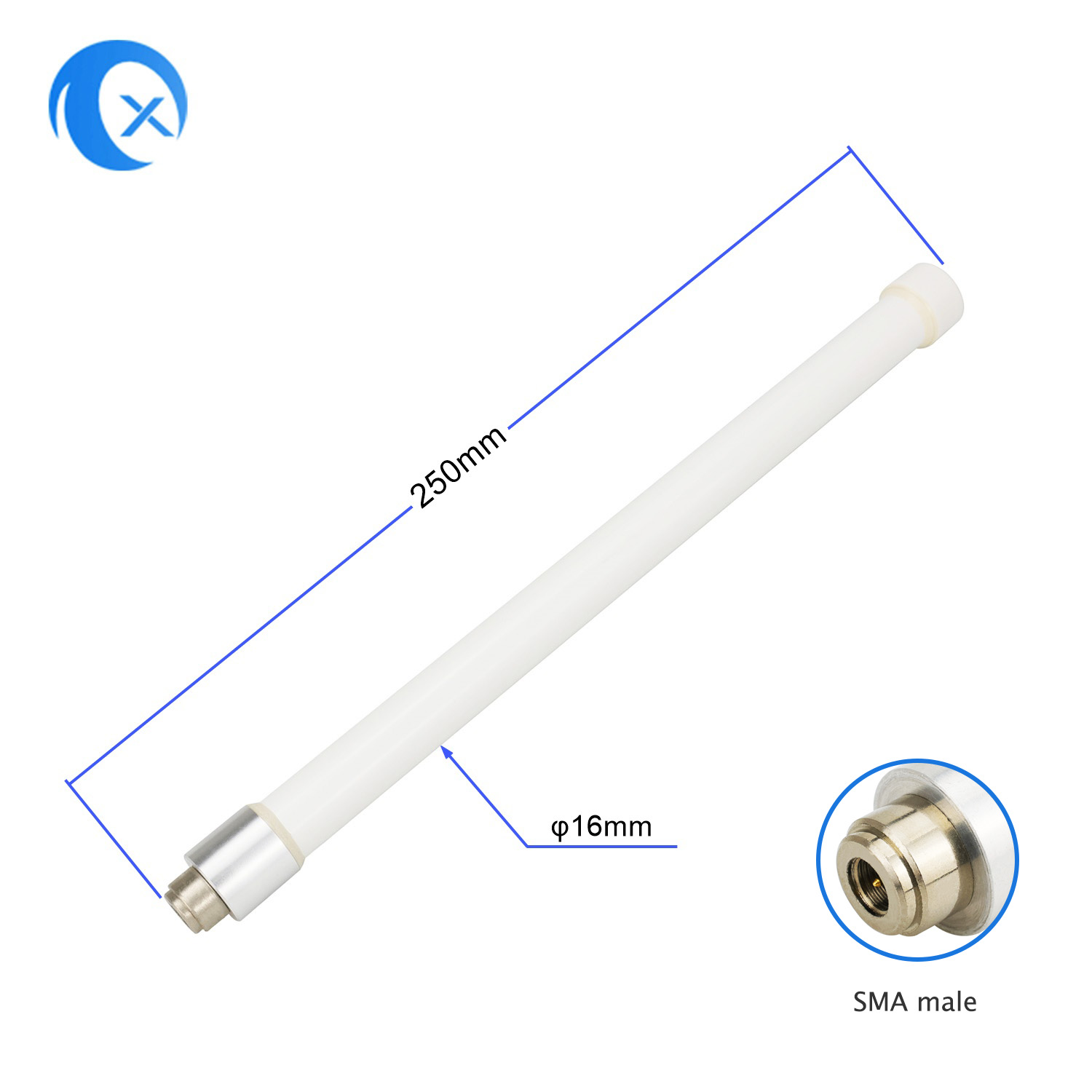

Dimensions: φ16*250 mm
Radome color: Grey, Black, White
Part Number: TX-HG041
Connector: SMA Male connector
Dimensions: φ16*250 mm
Radome color: Grey, Black, White
Part Number: TX-HG041
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 6000-7000 | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 8-9 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Radome material | Fiberglass | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | SMA male connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
