Fiberglass antenna

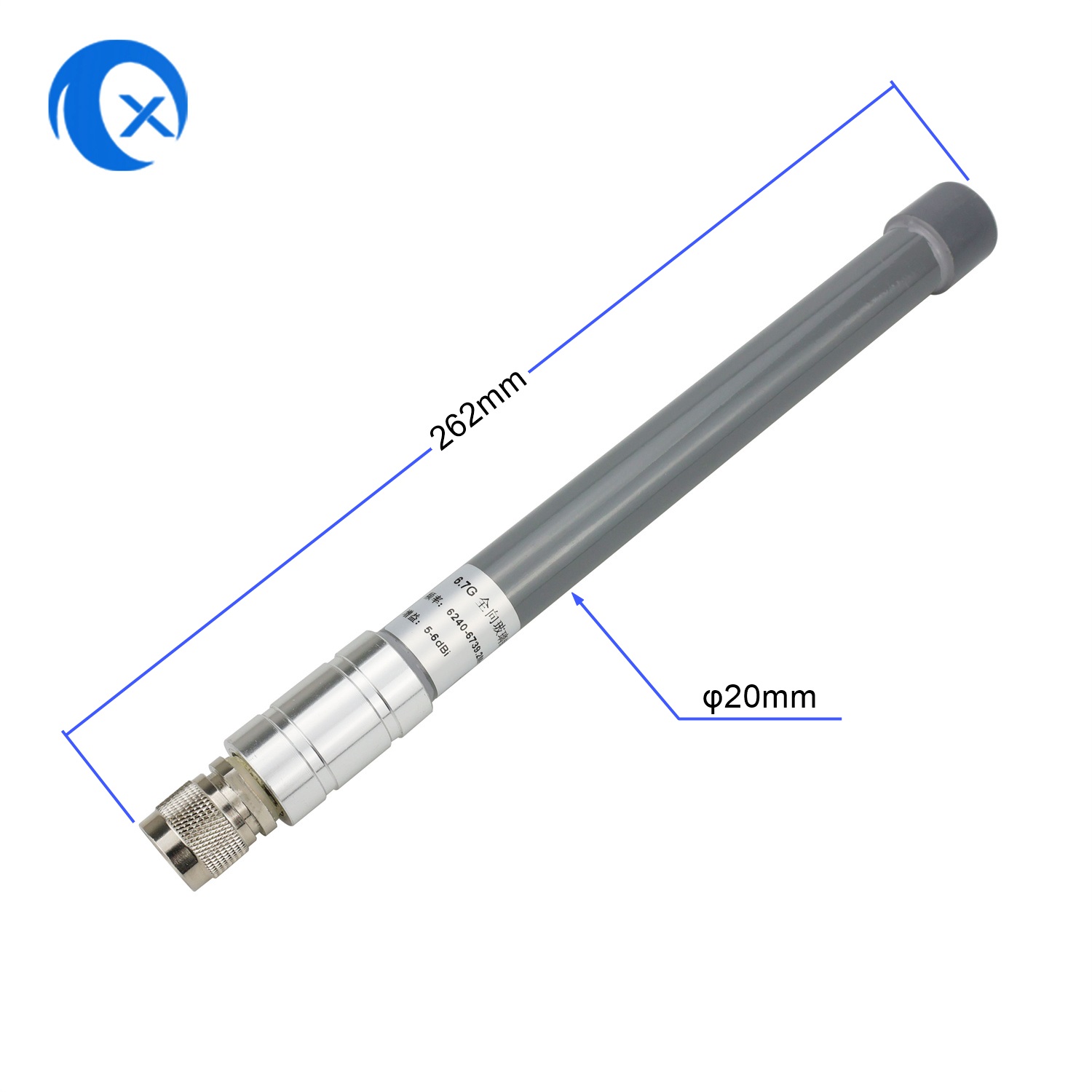

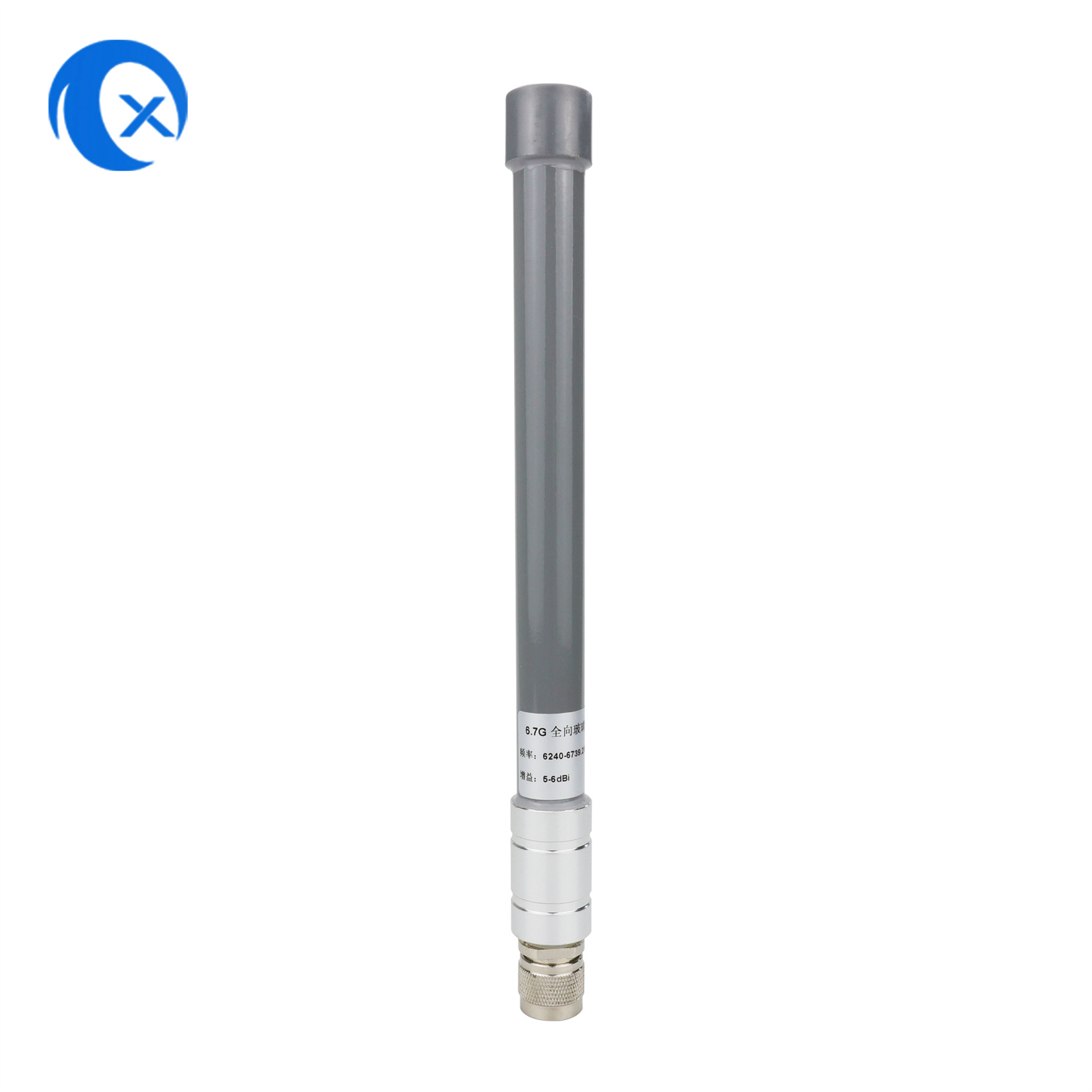

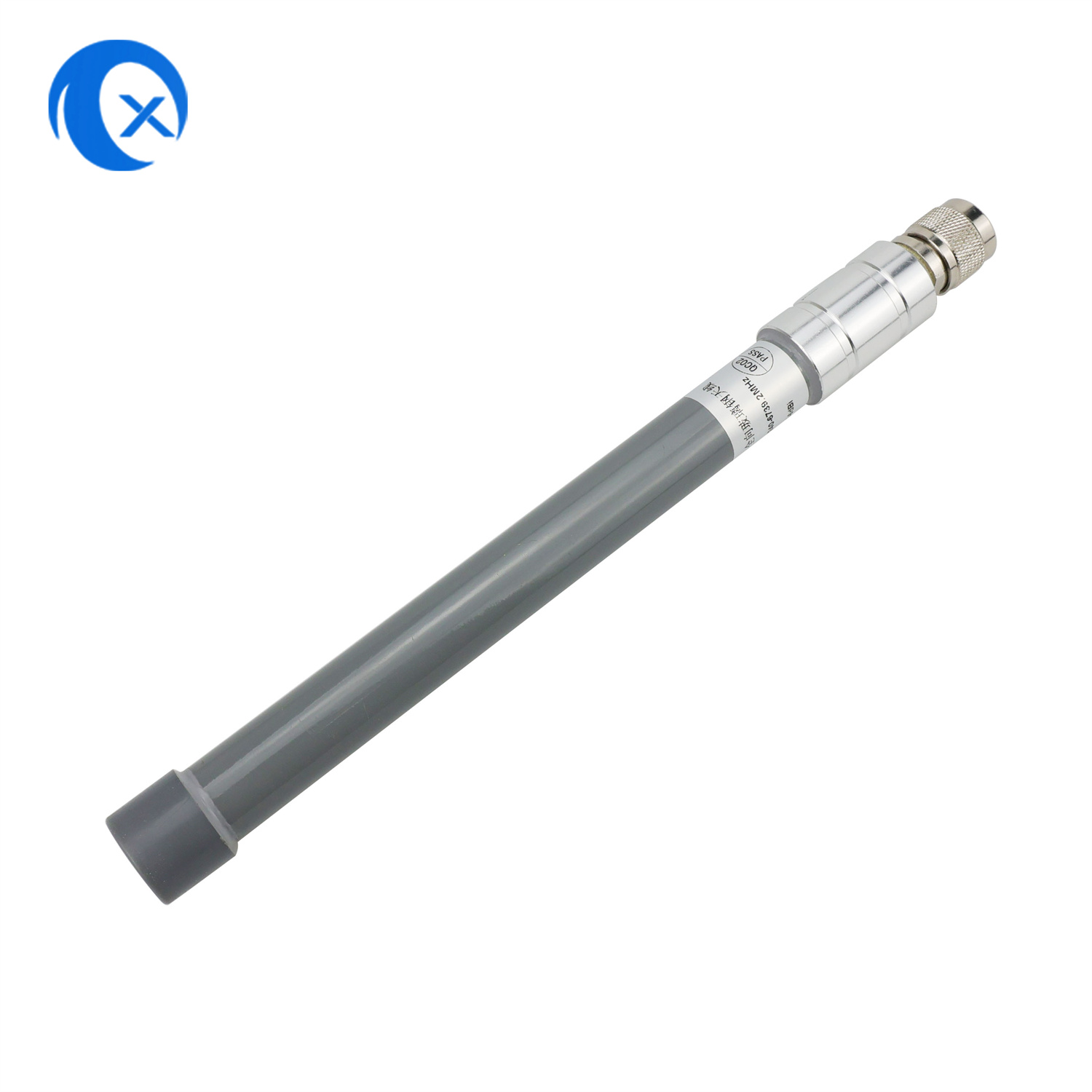

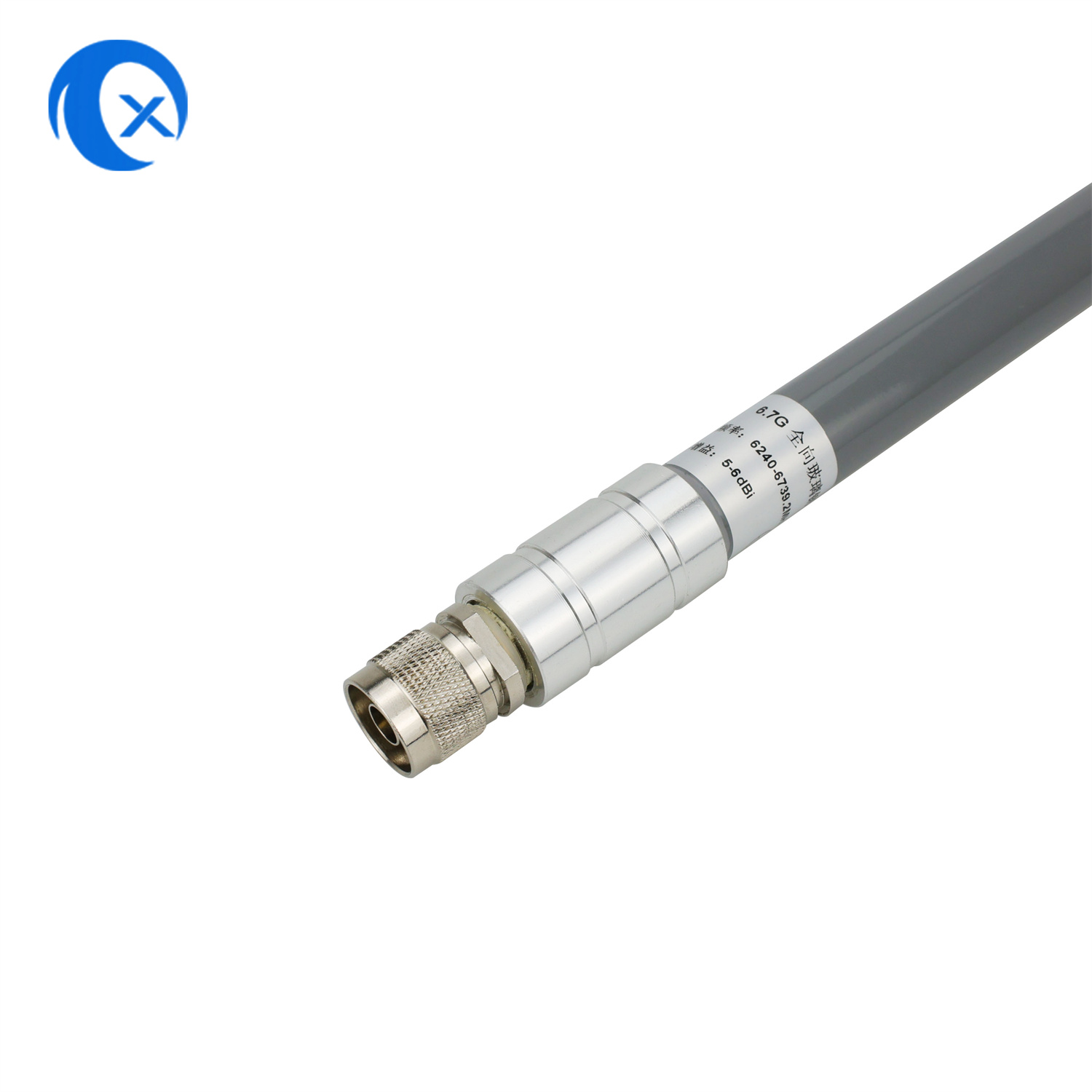

6.7GHz 5-6dBi gain outdoor waterproof fiberglass base station antenna
Item No.: TX-HG036
Frequency Range: 6240-6739.2MHz
Gain: 5-6 dBi
Connector: N connector
Dimensions: φ20*262mm
Part Number: TX-HG036
Gain: 5-6 dBi
Connector: N connector
Dimensions: φ20*262mm
Part Number: TX-HG036
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 6240-6739.2MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 5-6 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Radome material | Brass tube | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | N male connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
