3G 4G 5G antenna

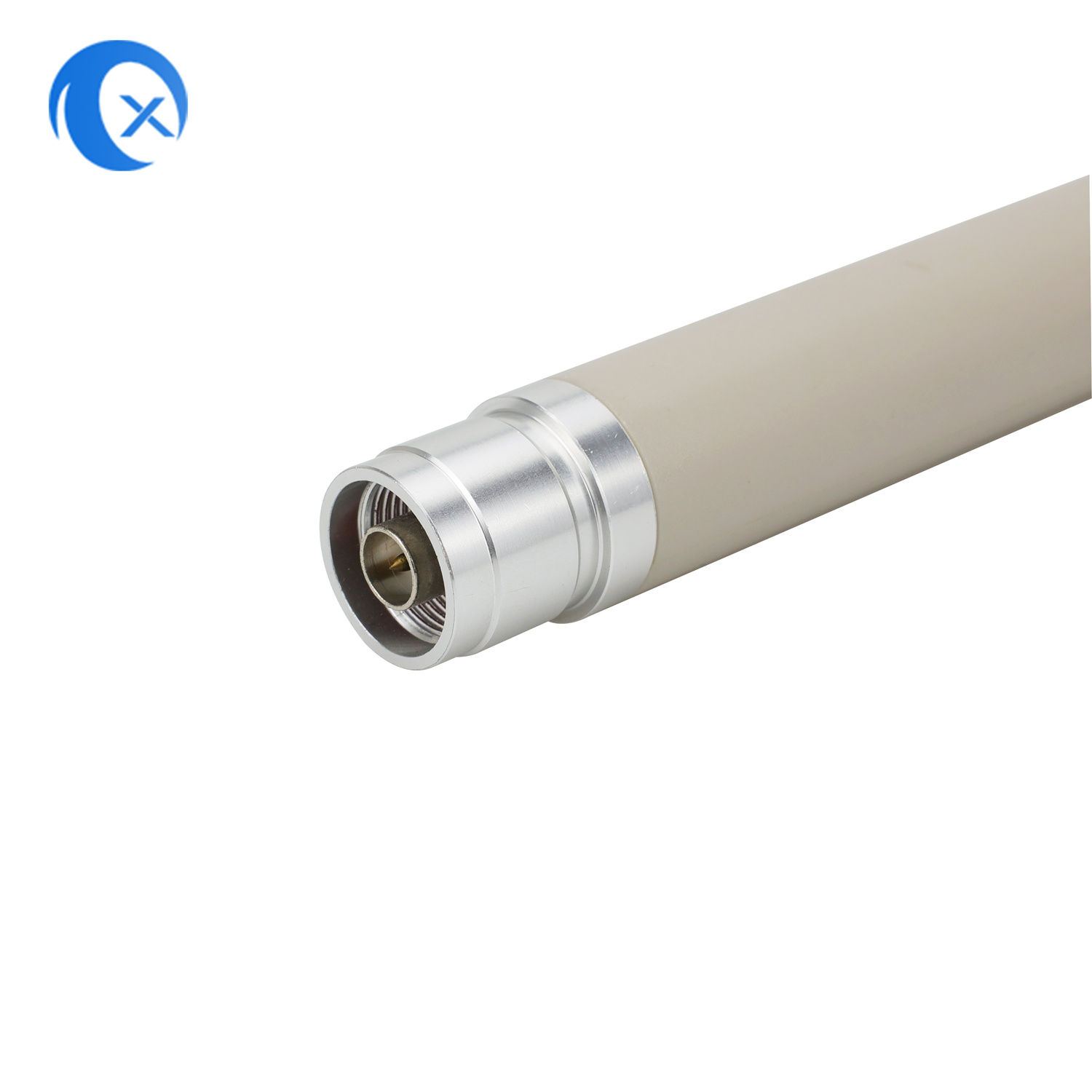

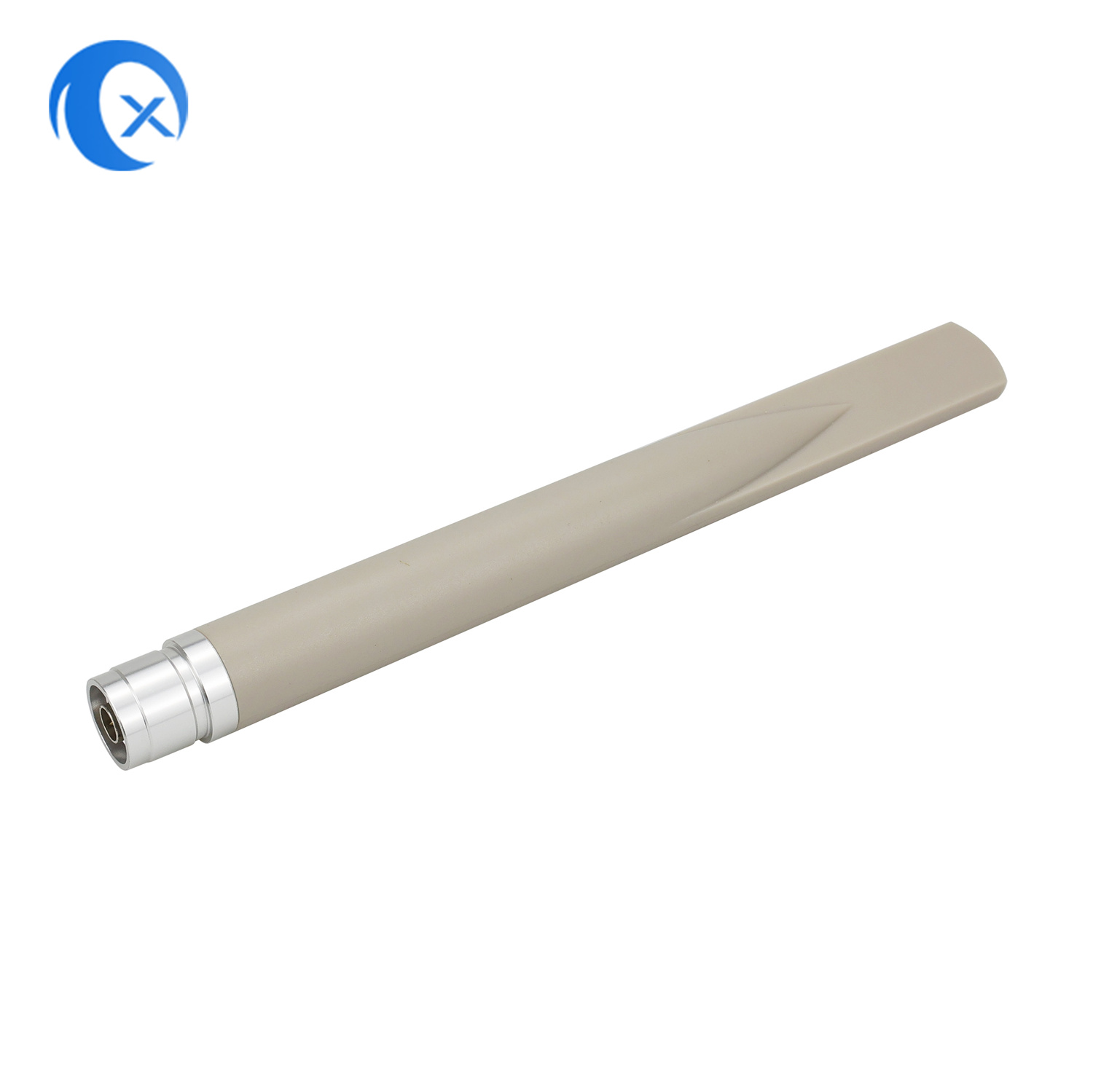

700-2700MHz 3.5dBi-4dBi 4G LTE Omni Fiberglass Antenna with N Male Connector
Item No.: TX-HG033
Frequency Range: 700-2700MHz
Gain: 3.5 dBi
Connector: N Plug
Part Number: TX-HG033
Gain: 3.5 dBi
Connector: N Plug
Part Number: TX-HG033
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 700-2700MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 3.5 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Radome material | ABS | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | N plug | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
