Desktop stand

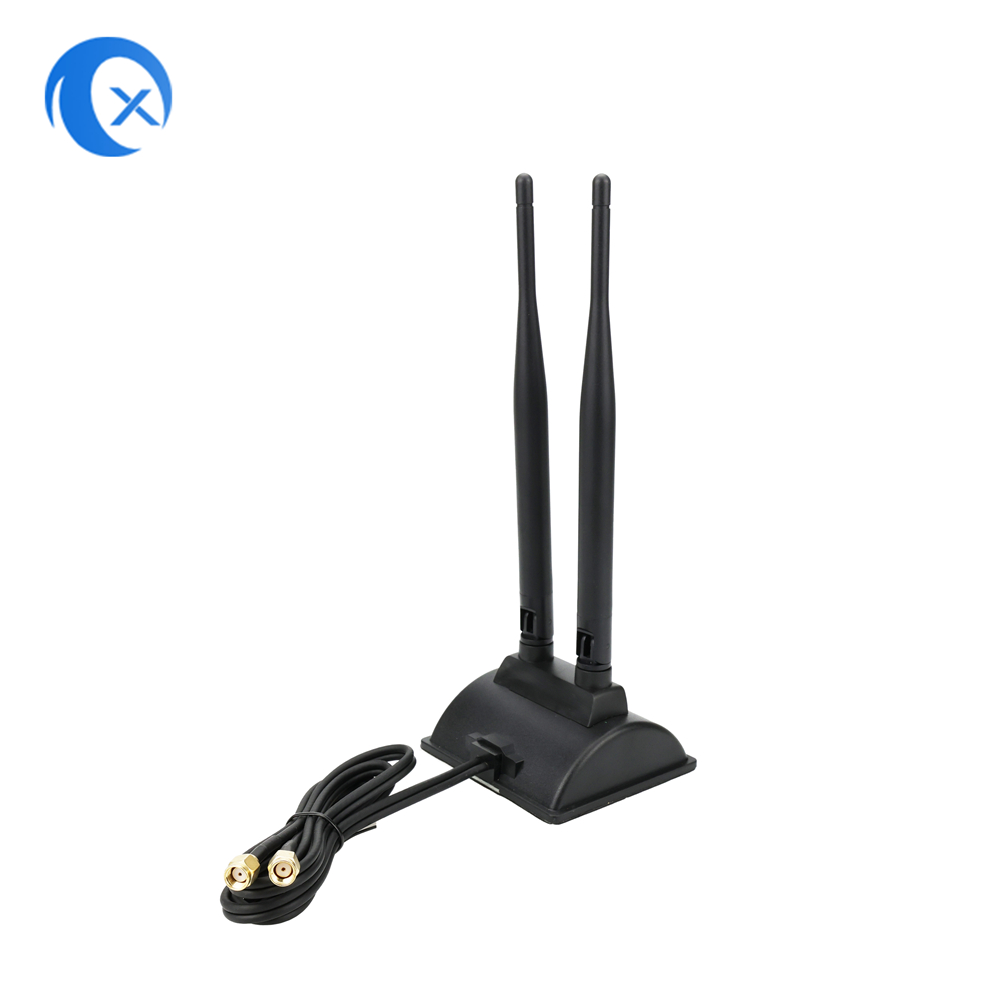

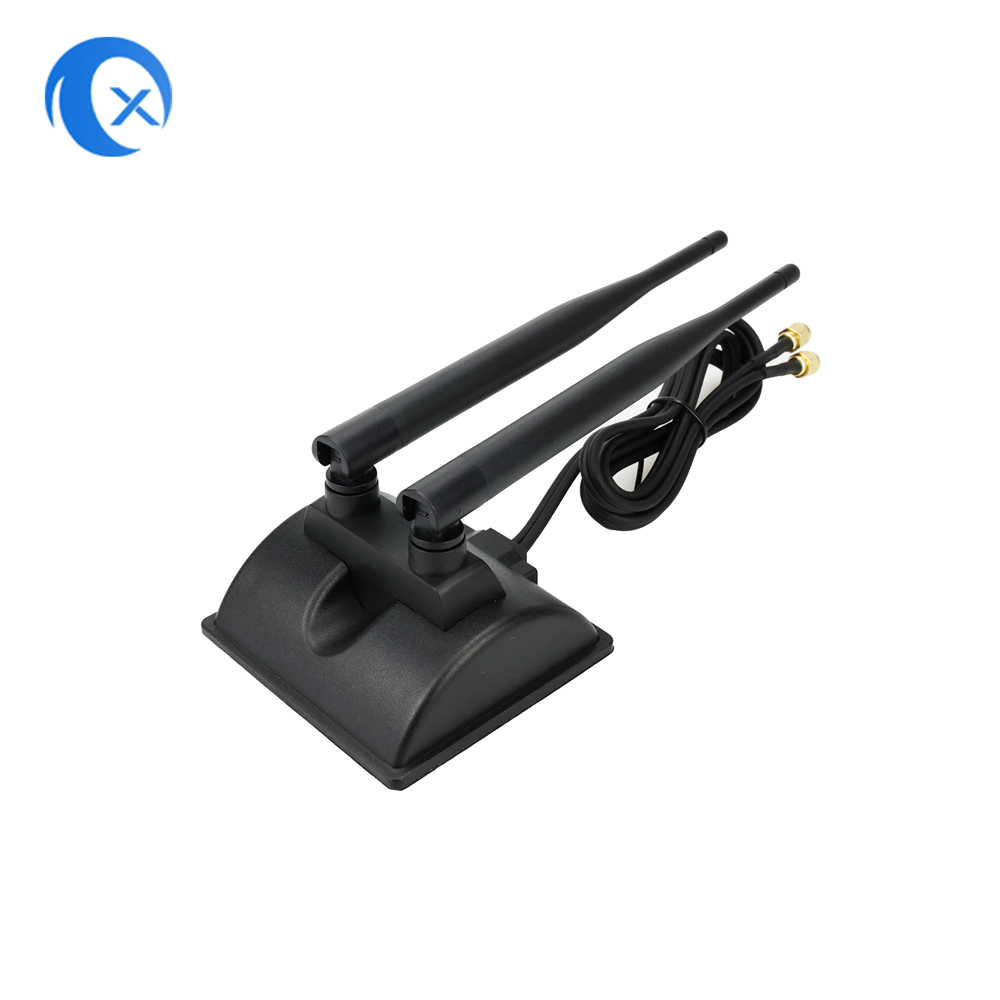

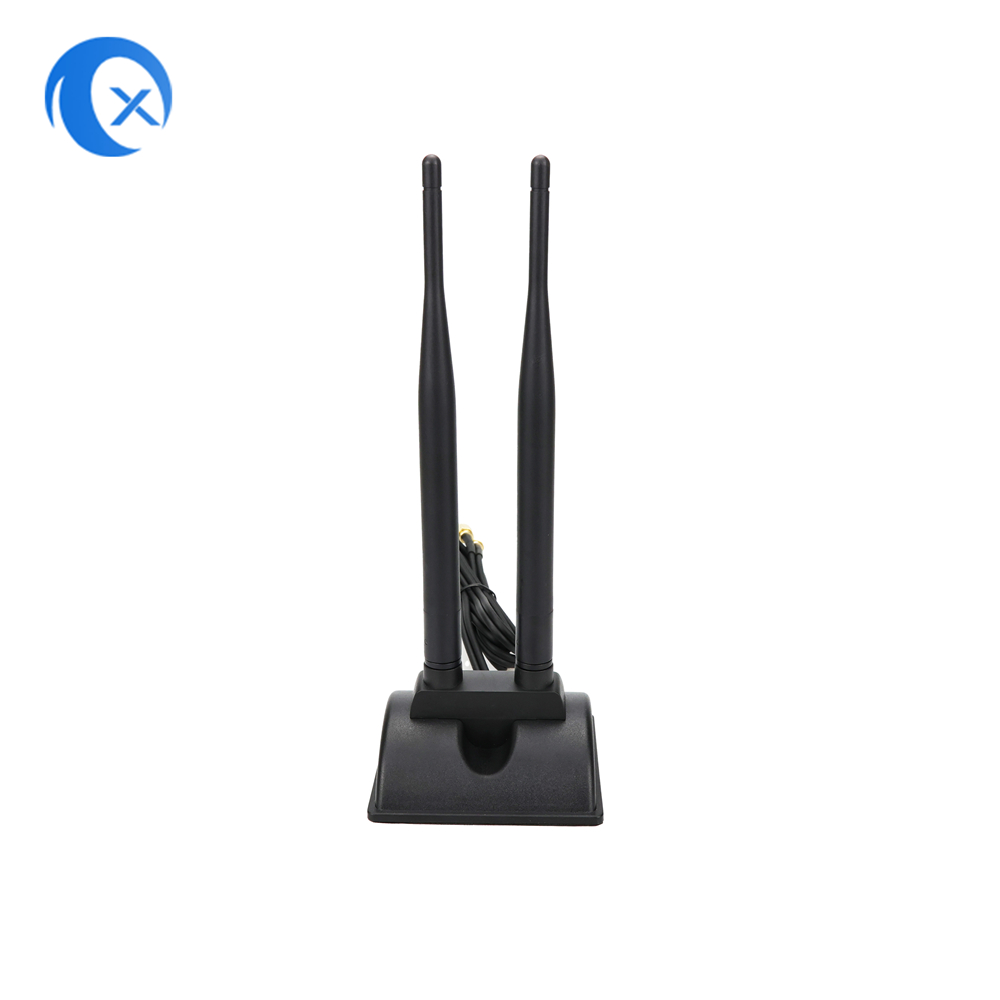

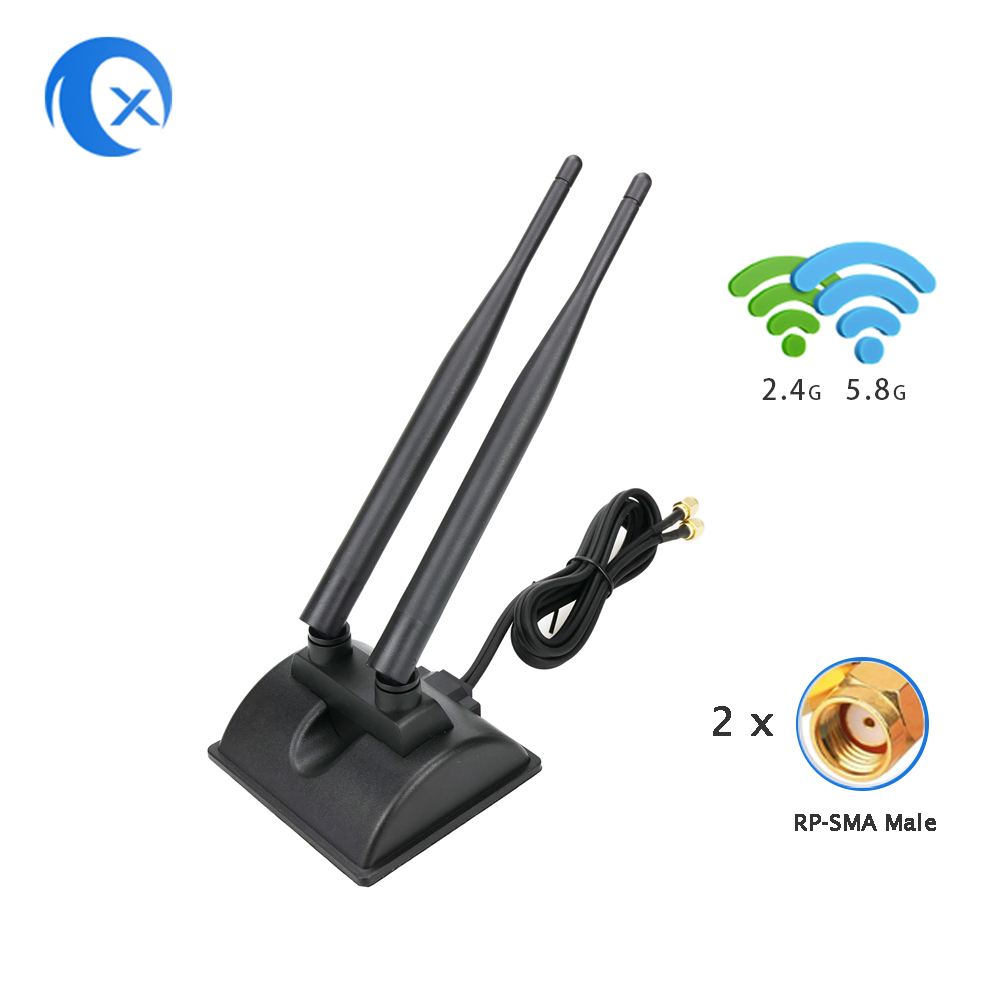

Dual Band WiFi Antenna, Innotic 2.4Ghz 5.8Ghz WiFi Antenna RP-SMA Male Connector for PCI-E Wireless Network Card Wireless Hotspot
Frequency Range: 2.4 / 5.8 GHz
Gain: 5 dBi
Connector: SMA Plug
Part Number: TXD02
Gain: 5 dBi
Connector: SMA Plug
Part Number: TXD02
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 2.4 / 5.8 GHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 5dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | PCB | |||||||||||
| Material of Plastic | ABS / PC+PBT | |||||||||||
| Cable Type | / | |||||||||||

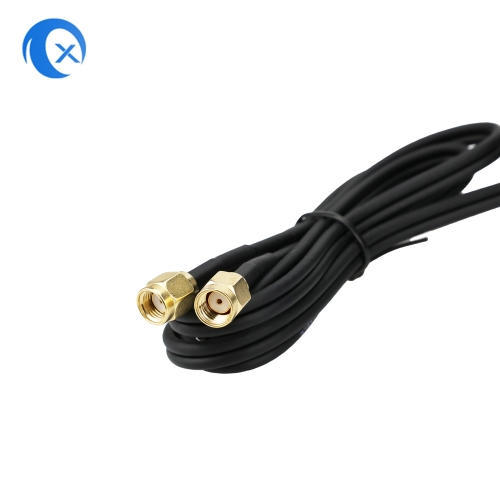

| Connector Type | SMA Plug | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
