Connector mount

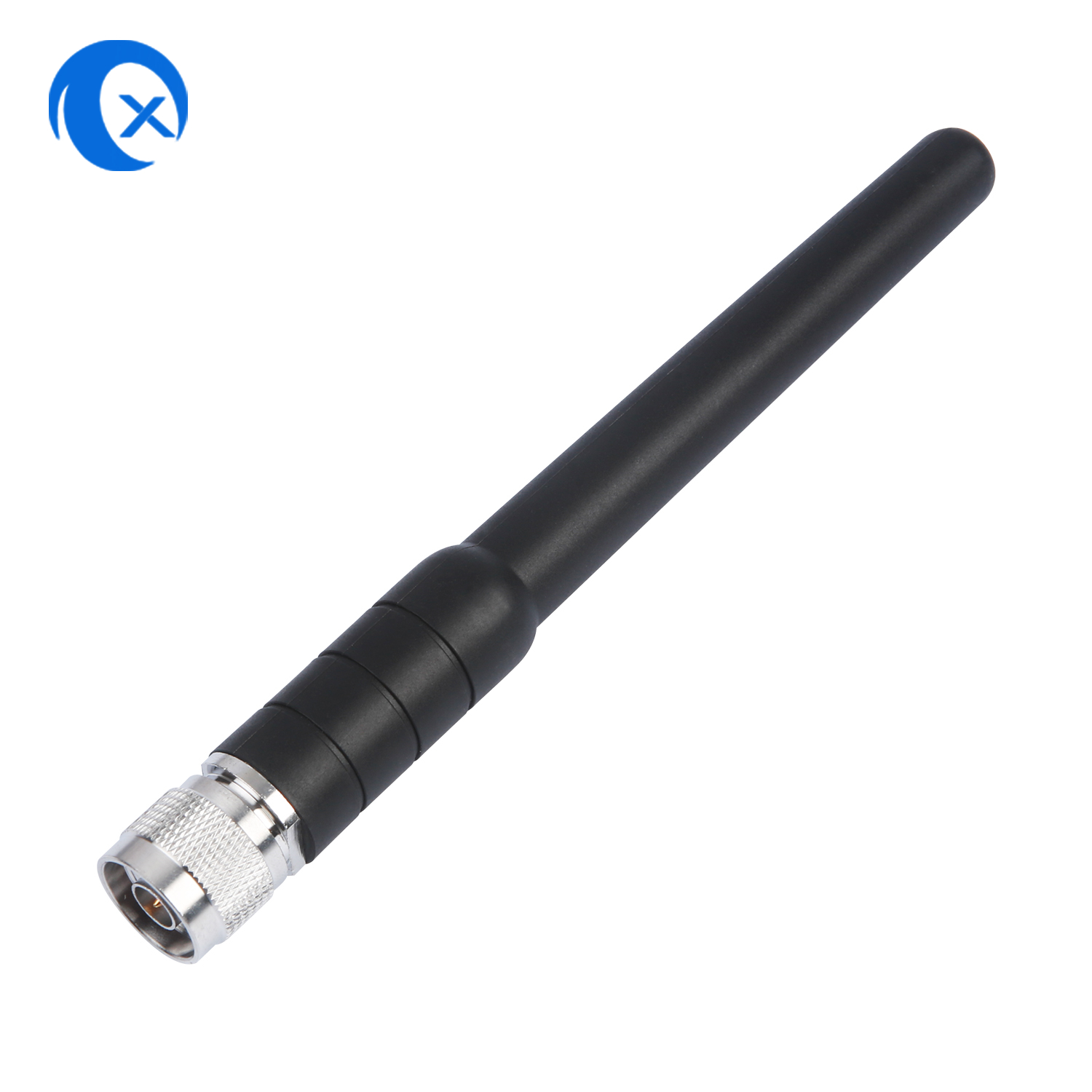

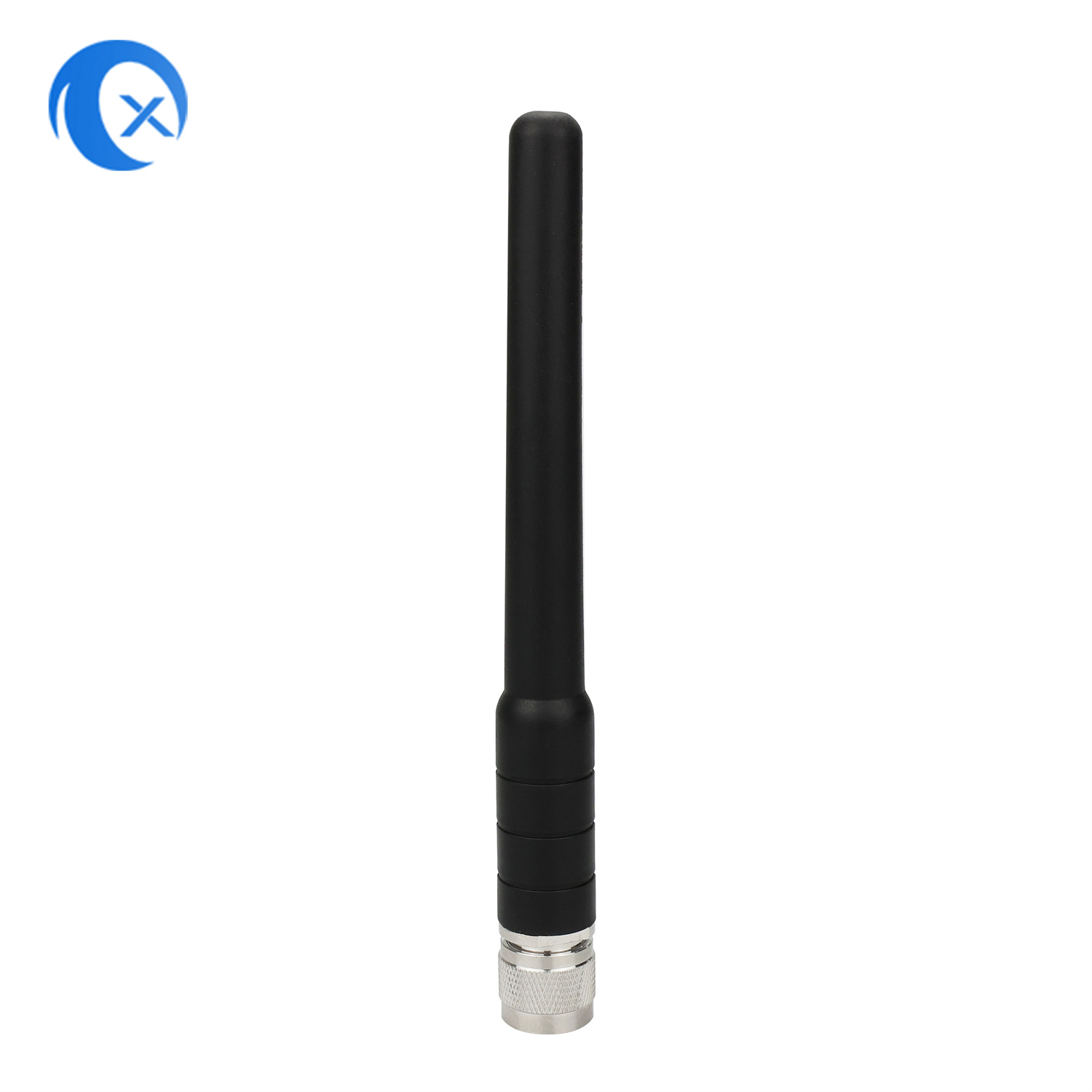

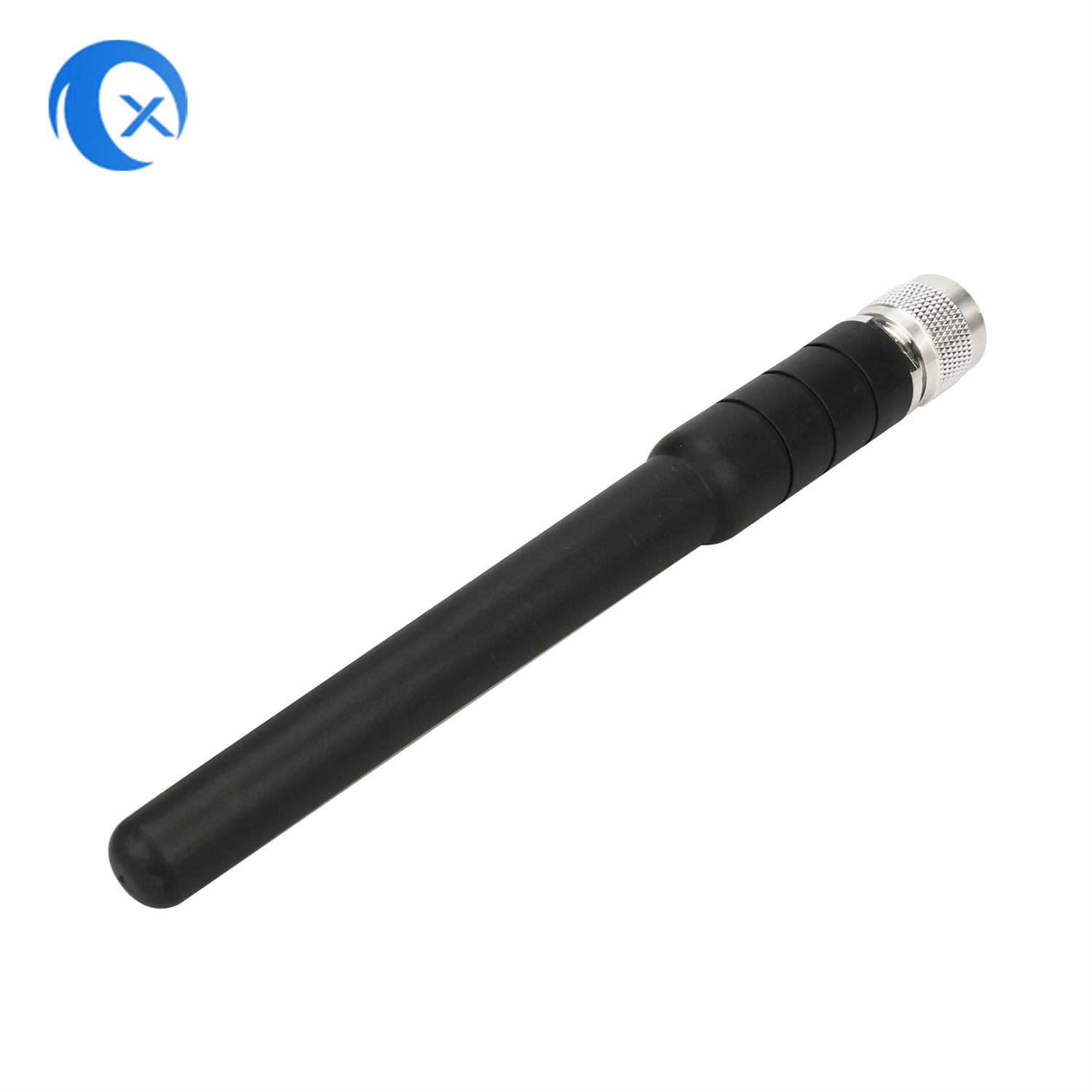

GSM 900-1800MHz 5dbi OMNI external Antenna N male connector for cell phone signal booster
Item No.: TX-AP111
Frequency Range: 868 MHz
Gain: 5 dBi

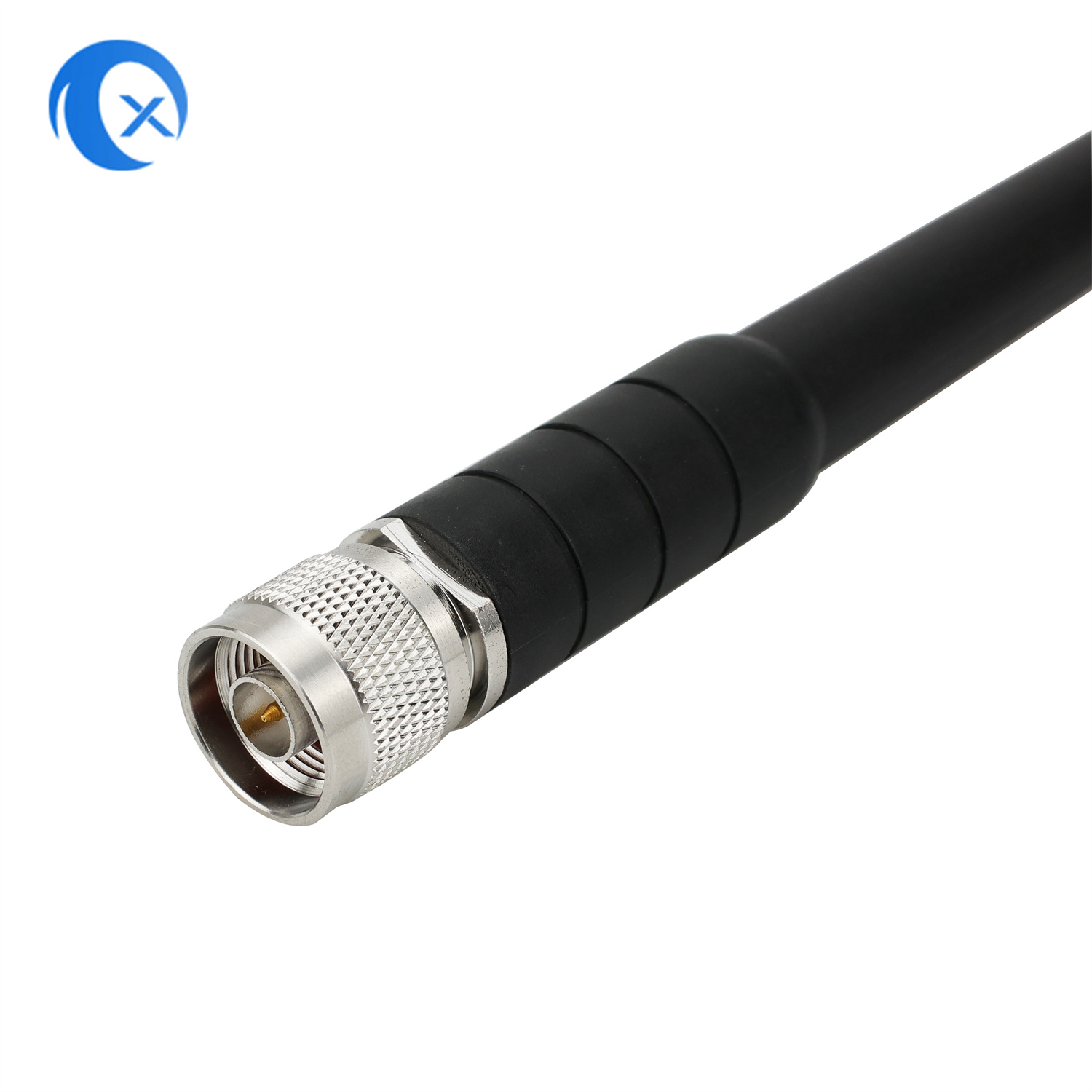

Connector: N male connector
Net weight: 47.5g
Part Number: TX-AP111
Gain: 5 dBi
Connector: N male connector
Net weight: 47.5g
Part Number: TX-AP111
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 868MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 5.0 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | PCB+SPRING | |||||||||||
| Material of Plastic | ABS/POM | |||||||||||
| Cable Type | N/A | |||||||||||
| Connector Type | N male connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
