Fiberglass antenna

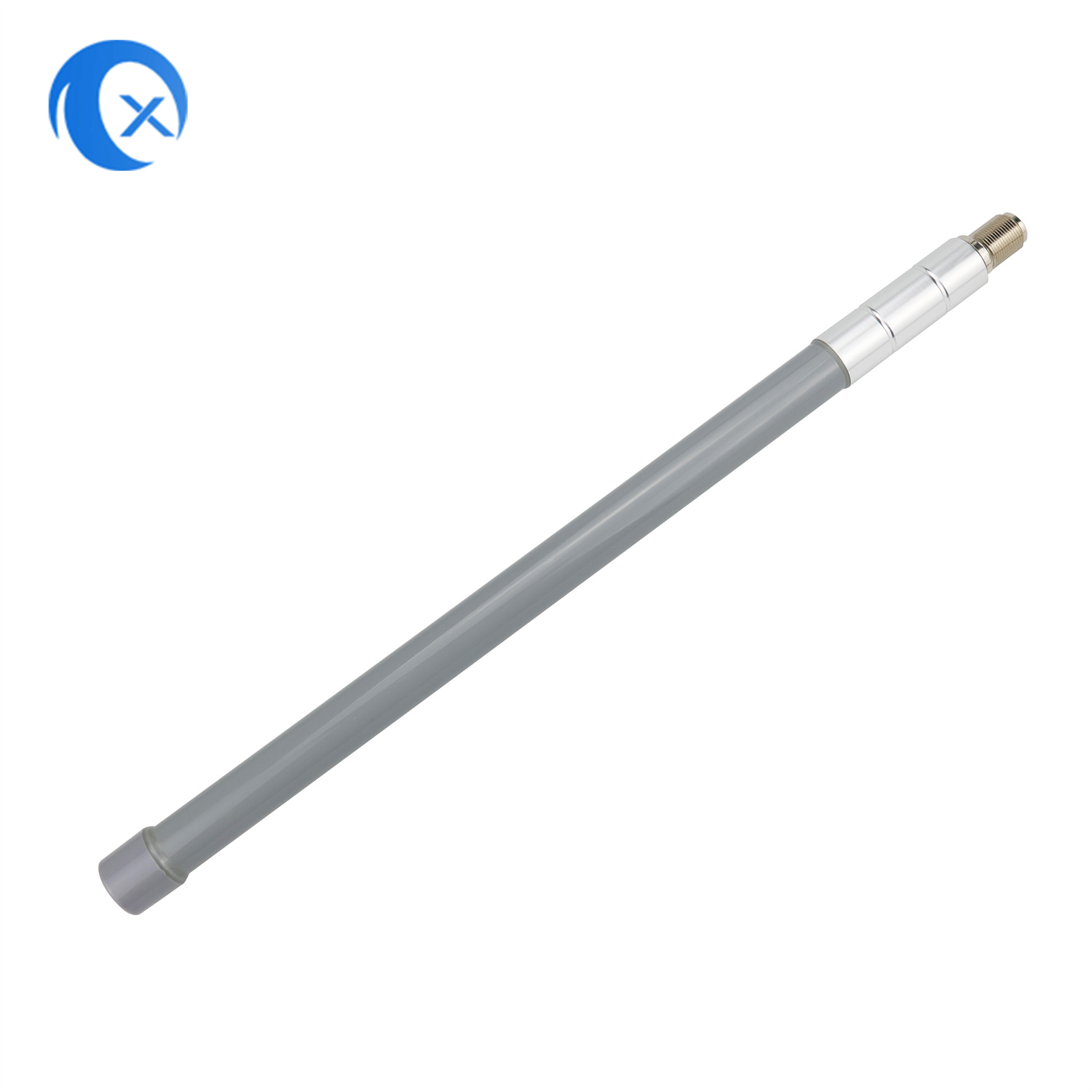

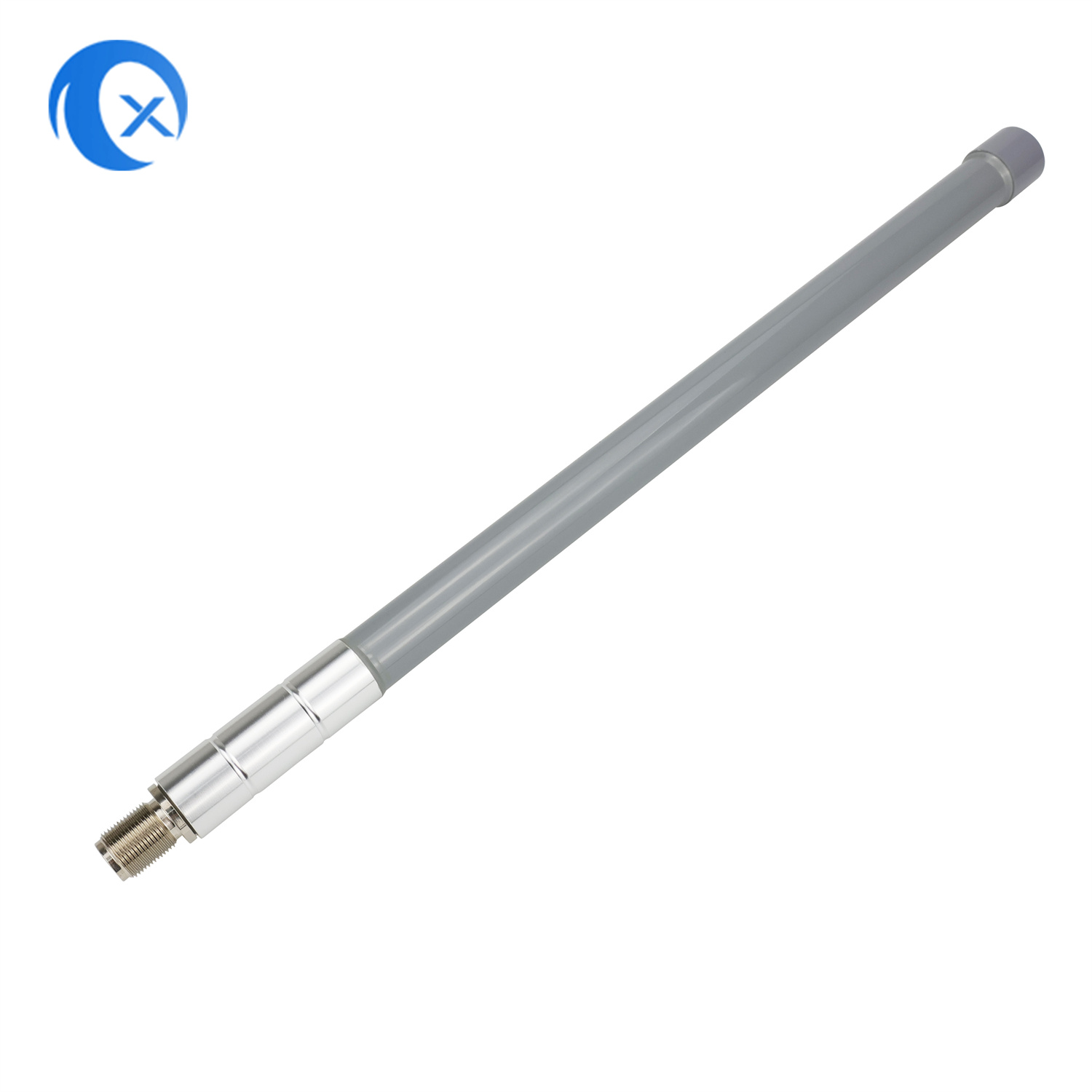

High Gain 40cm 868Mhz Outdoor Waterproof Fiberglass base station antenna with N female connector
Item No.: TX-HG040
Frequency Range: 868 MHz

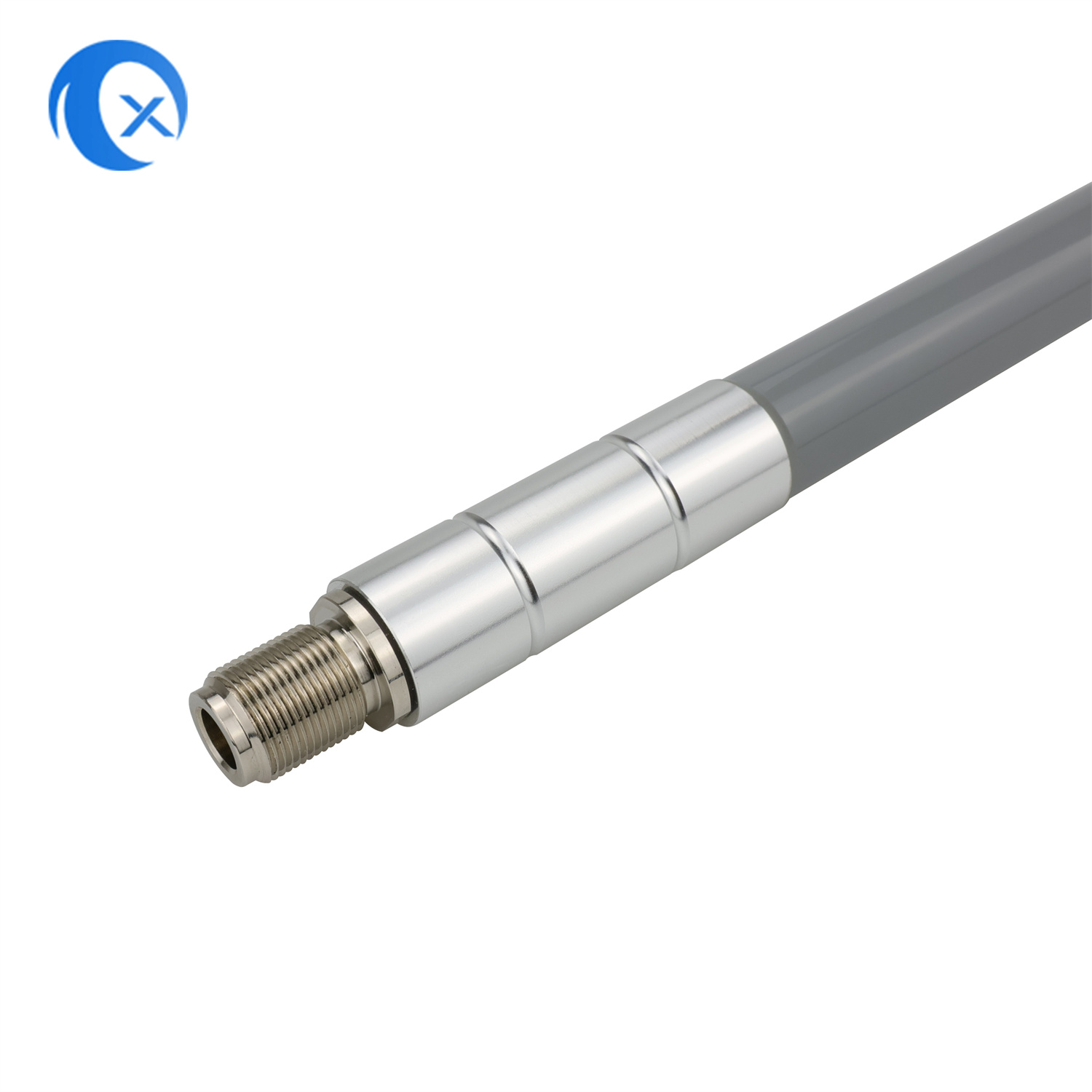

Connector: N Female connector
Dimensions: φ16*250 mm
Radome color: Grey, Black, White
Part Number: TX-HG040
Connector: N Female connector
Dimensions: φ16*250 mm
Radome color: Grey, Black, White
Part Number: TX-HG040
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 868MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 2 dBi | |||||||||||
| Polarization | Vertical | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Radome material | Fiberglass | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | N-type female connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
