Magnetic antenna

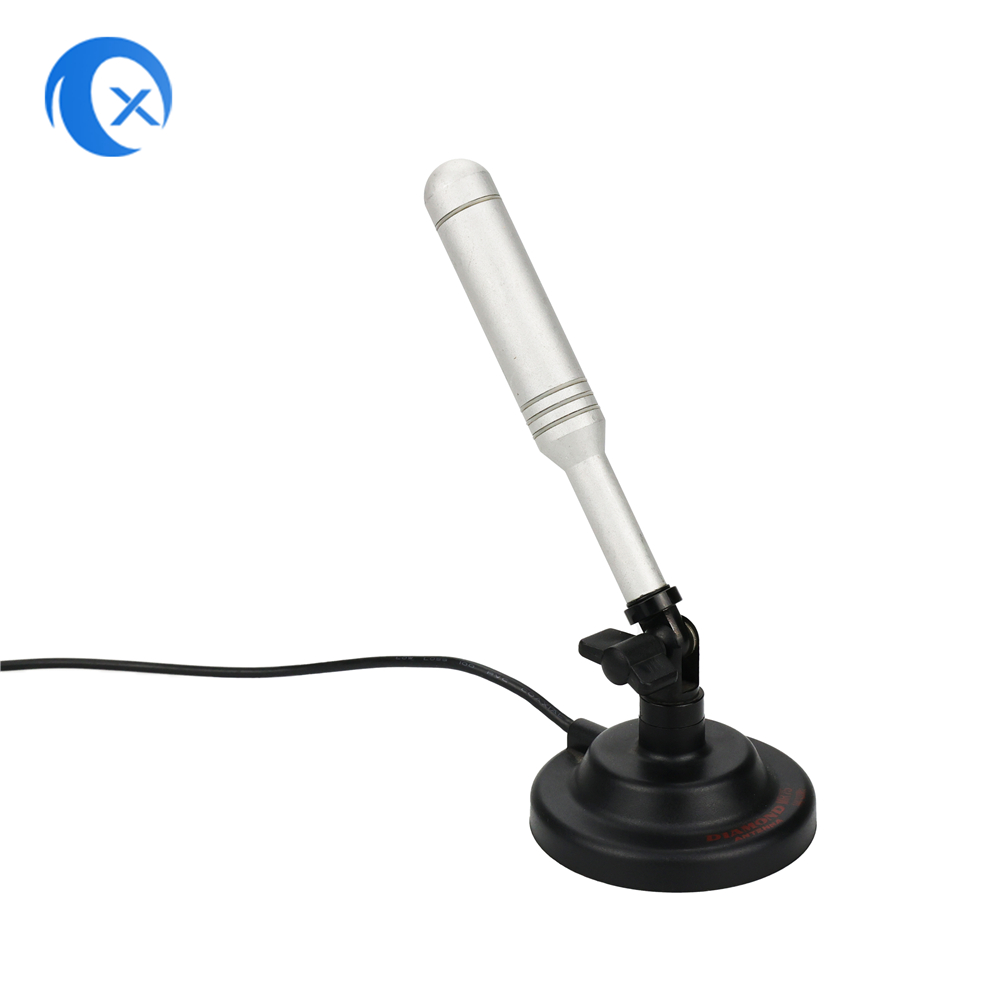

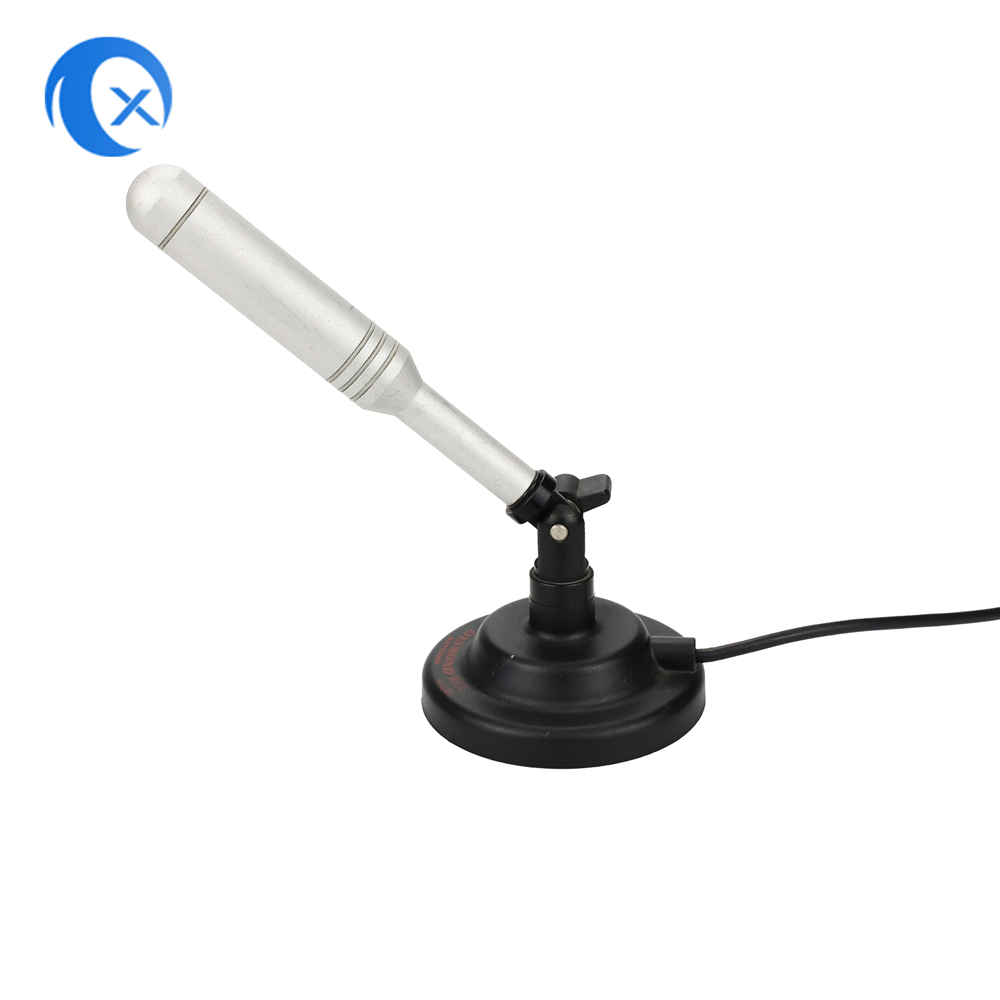

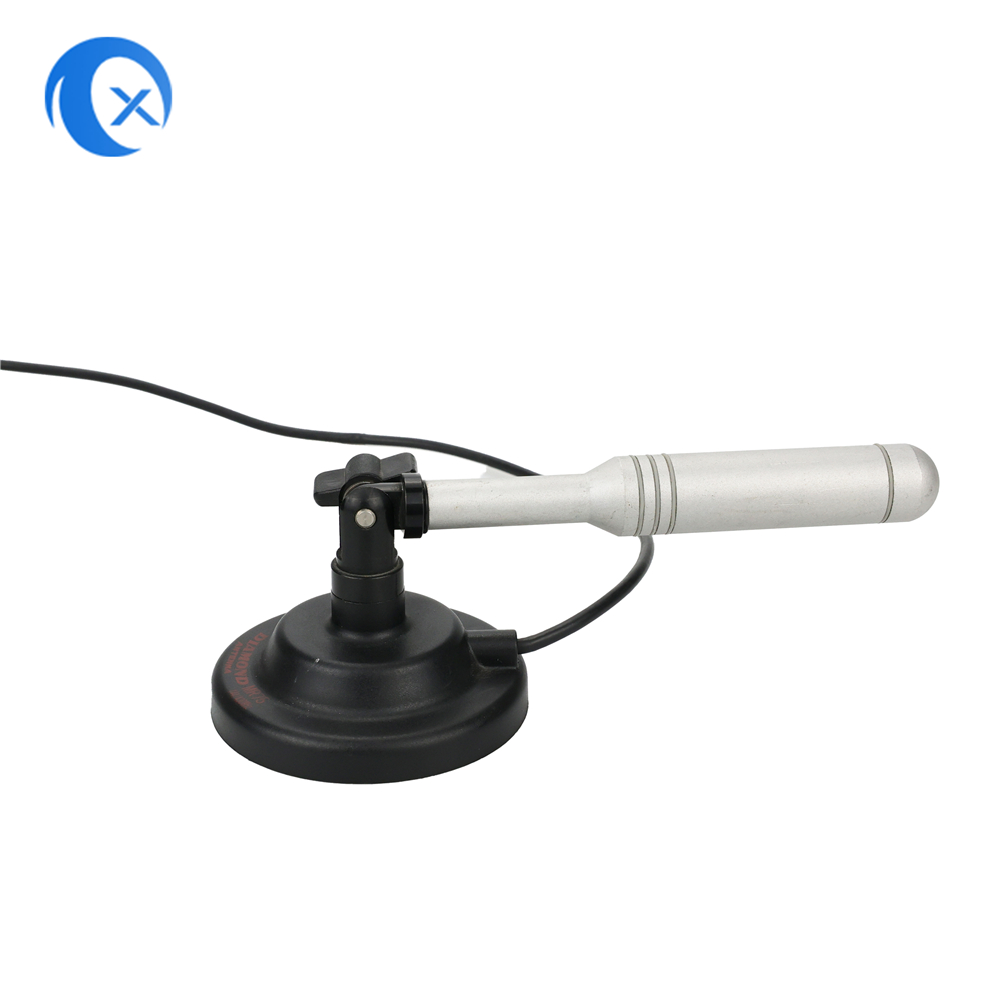

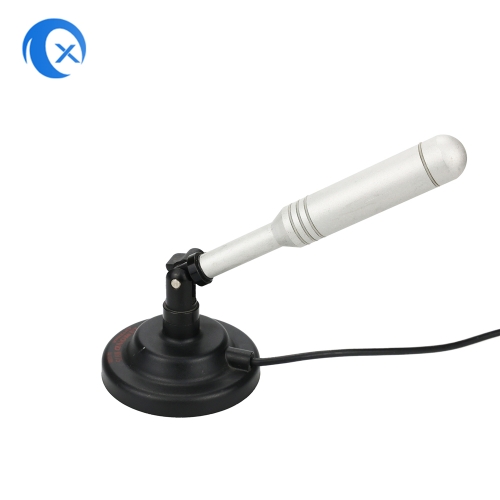

Indoor/Outdoor TV Aerial with Magnetic Base, High Gain Digital TV Antenna for VHF/UHF TV Signals
Item No.: TX-AB026
Frequency Range: VHF-Hi 170-240 MHz, UHF 470-860MHz
Gain: 5 dBi
Cable length: 1.5 meters or by request
Connector: BNC
Gain: 5 dBi
Cable length: 1.5 meters or by request
Connector: BNC
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | VHF-Hi 170-240 MHz, UHF 470-860MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 5 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | PCB | |||||||||||
| Material of Plastic | ABS / PC+PBT | |||||||||||
| Cable Type | RG174 | |||||||||||
| Connector Type Cable |
BNC RG174, LMR100, or by requests |
|||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
