2.4 GHz

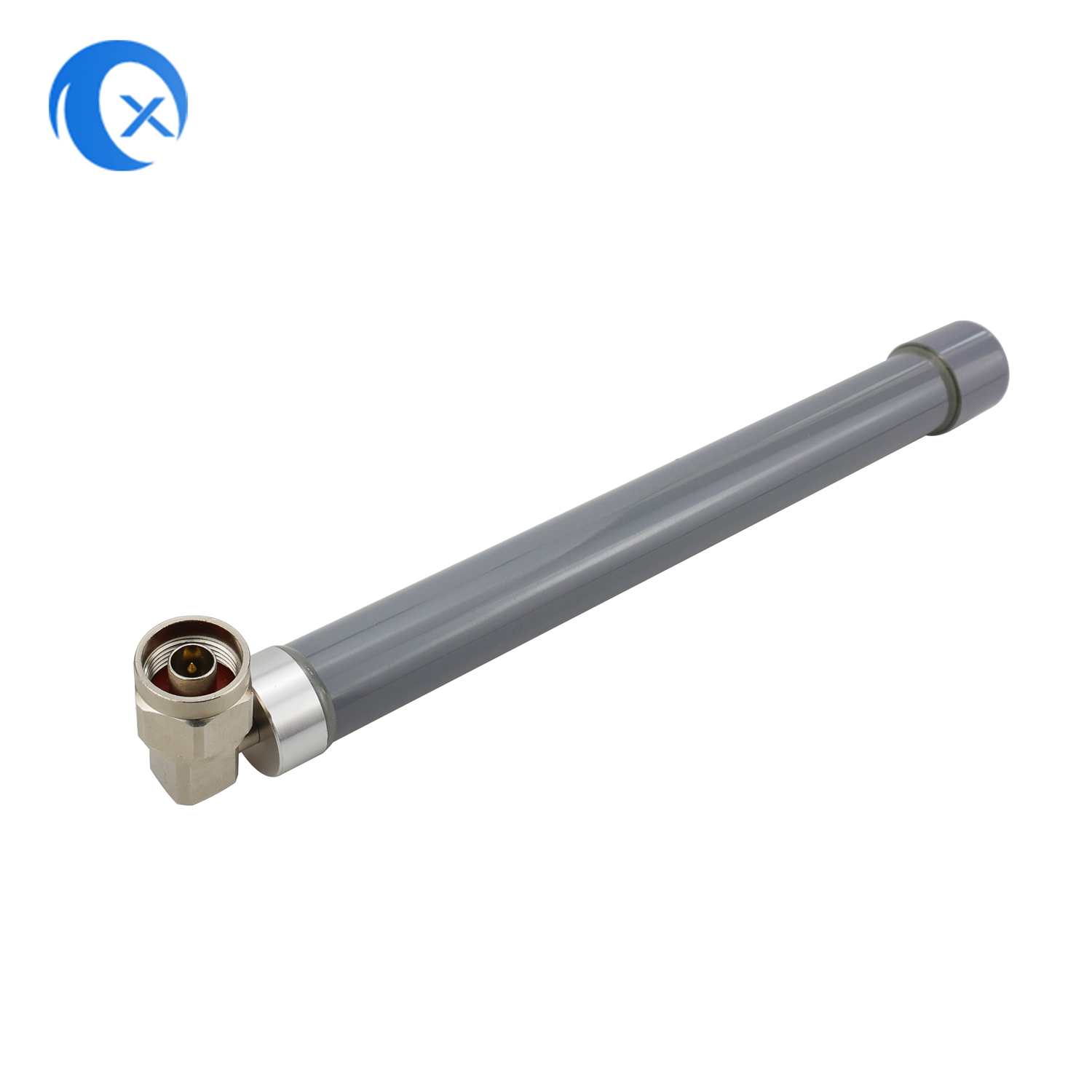

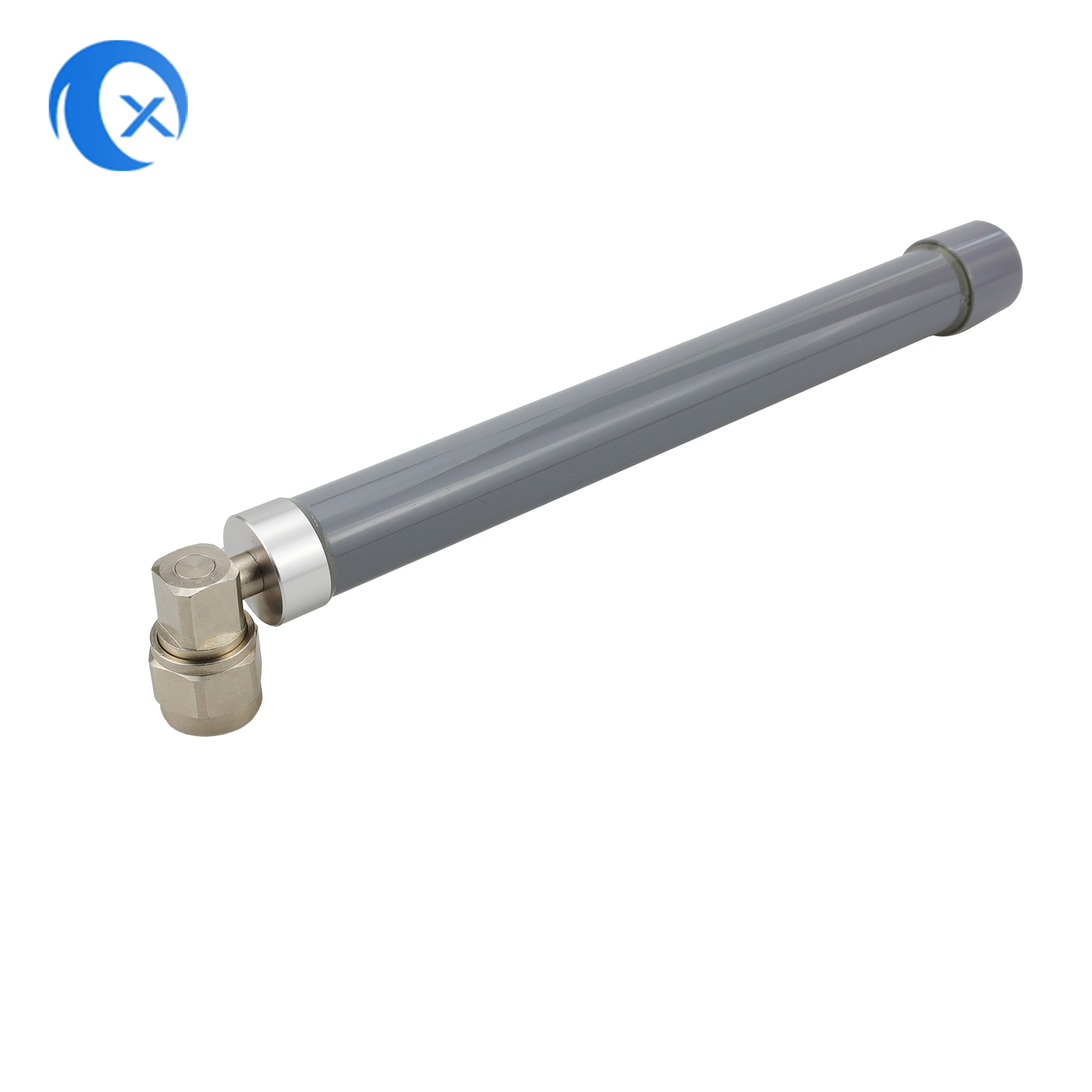

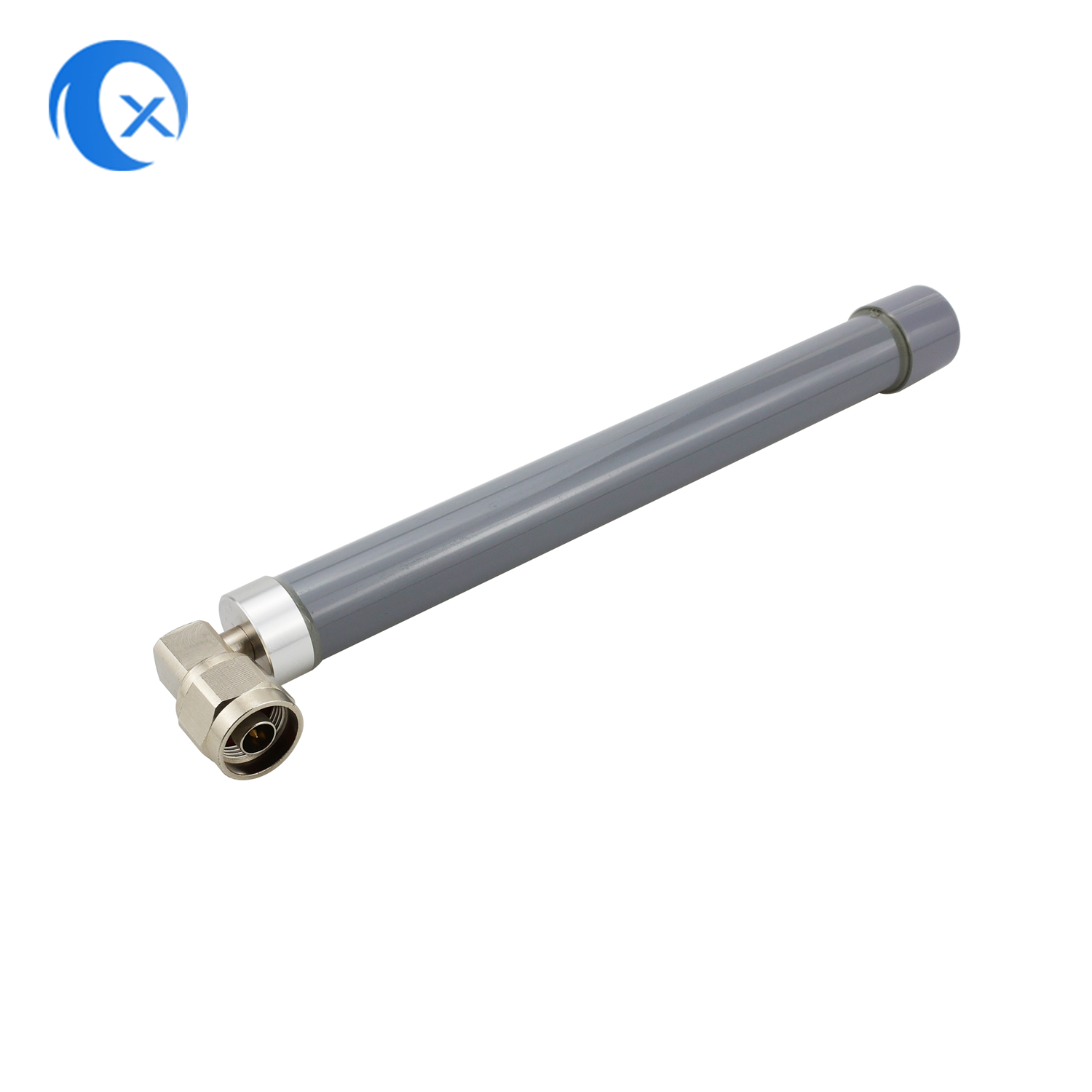

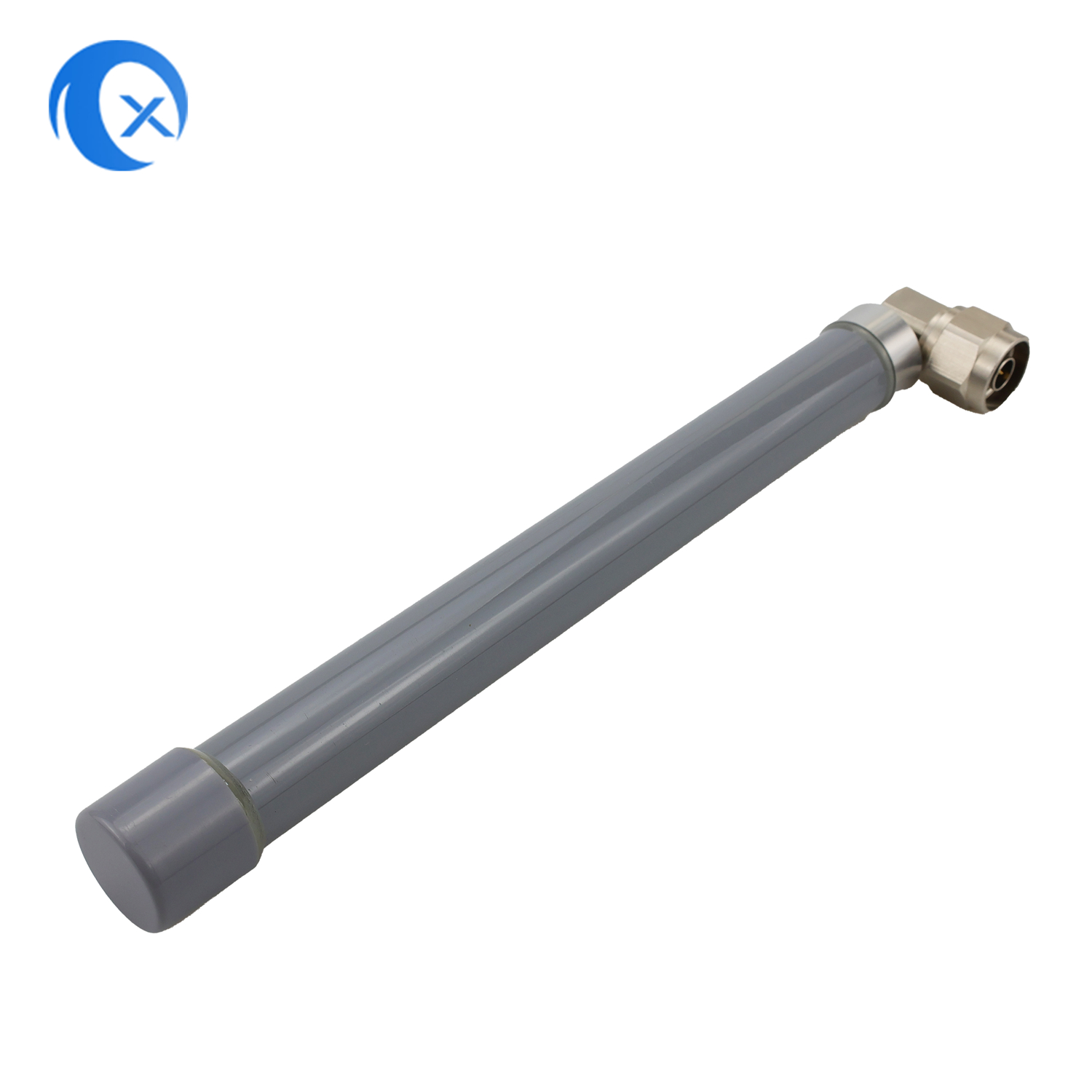

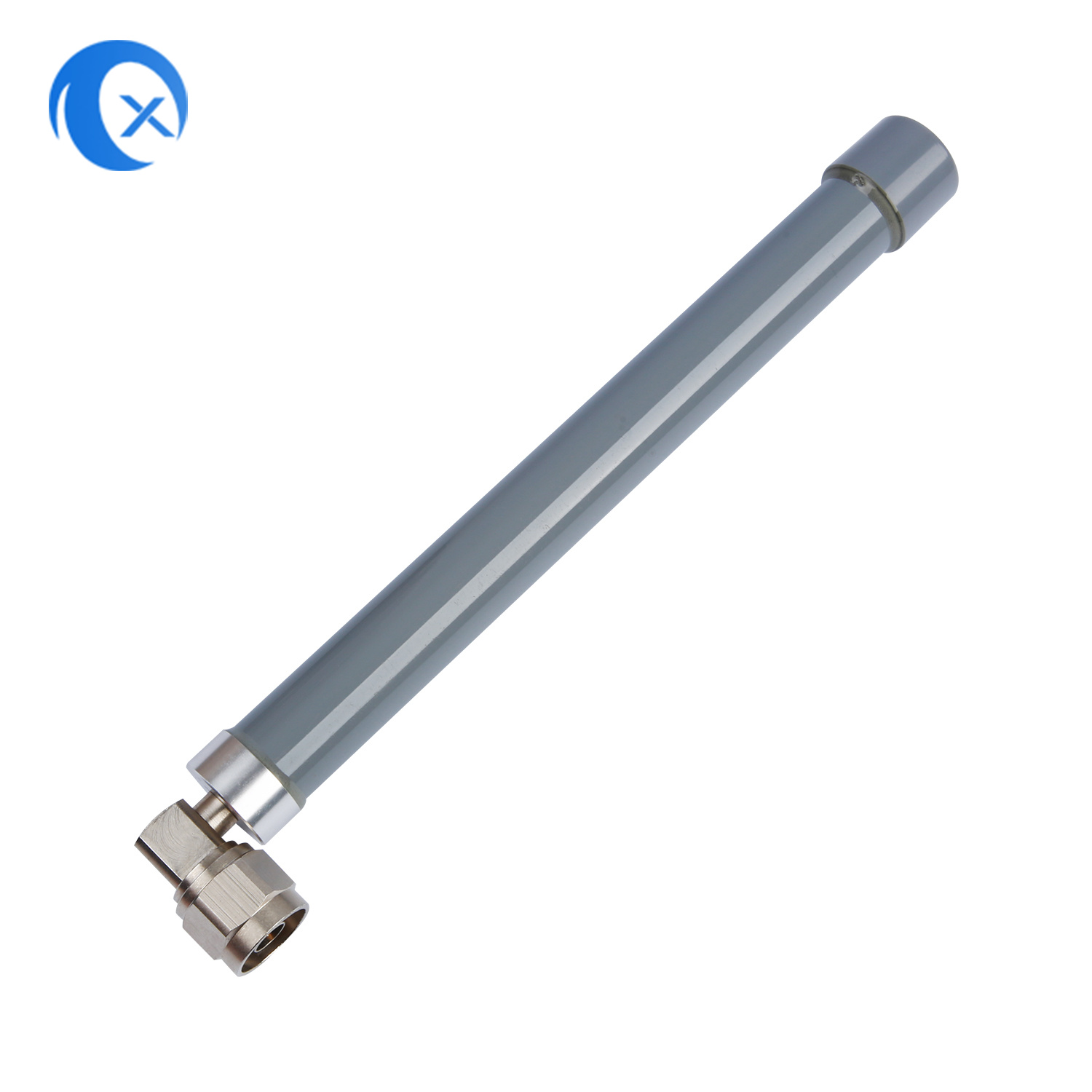

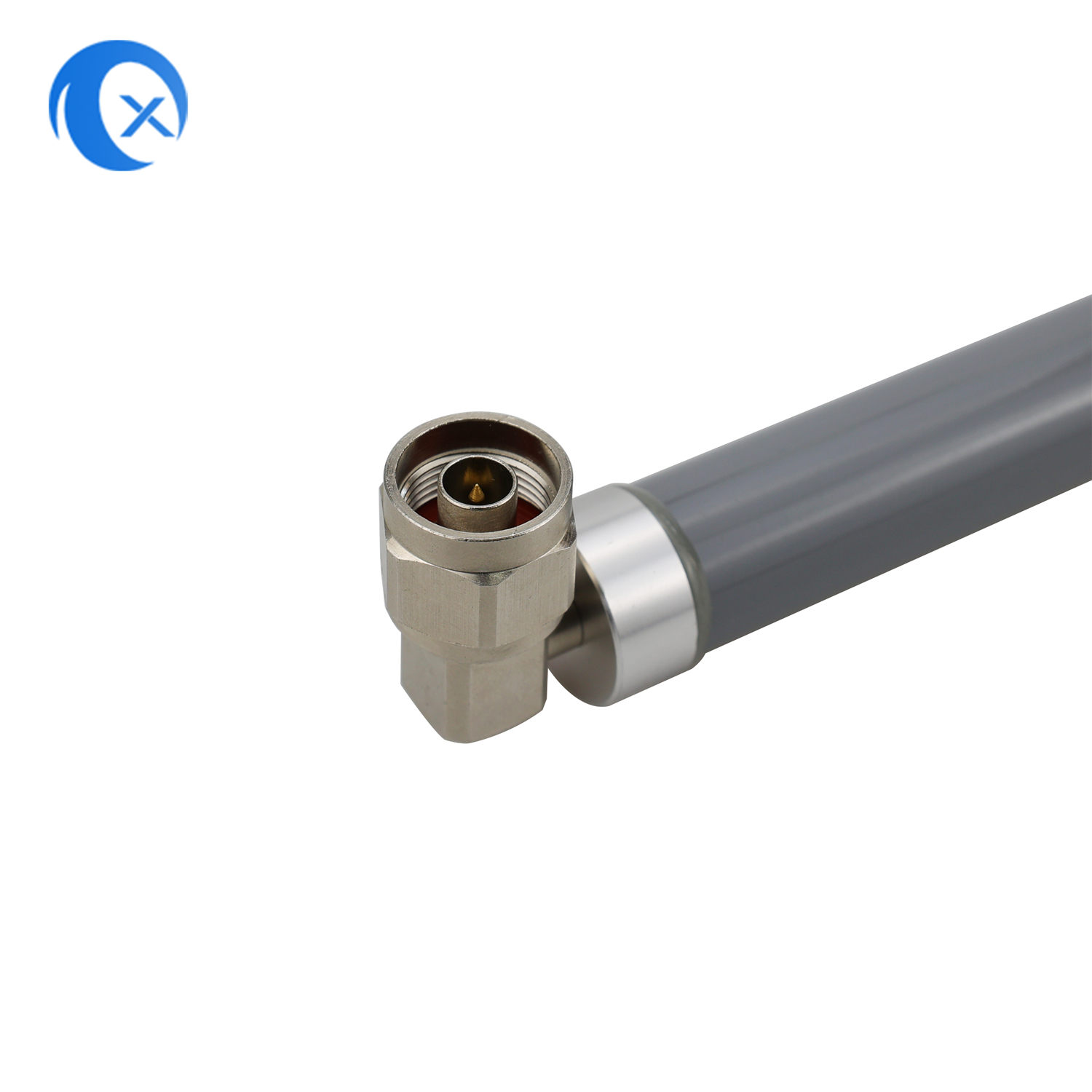

Outdoor Base Station Waterproof Omni r 5G Antenna with right angle N Male Gsm Wifi 4G 5G Fiberglass Antenna
Item No.: TX-HG016
Frequency Range: 5 GHz
Gain: 5 dBi
Connector: N connector
Dimensions: φ20*225mm
Weight: 109 g
Part Number: TX-HG016
Gain: 5 dBi
Connector: N connector
Dimensions: φ20*225mm
Weight: 109 g
Part Number: TX-HG016
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 5 GHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 5 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Radome material | Fiberglass | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | N male connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
