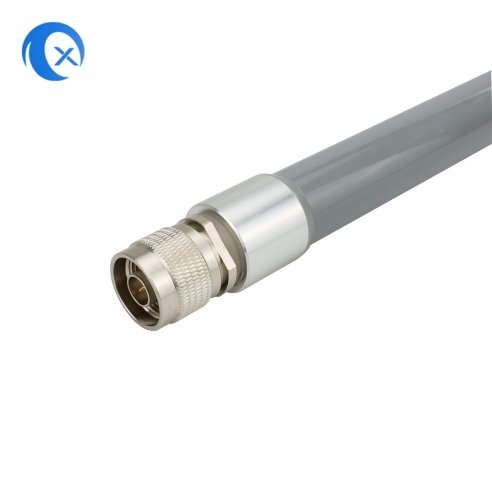

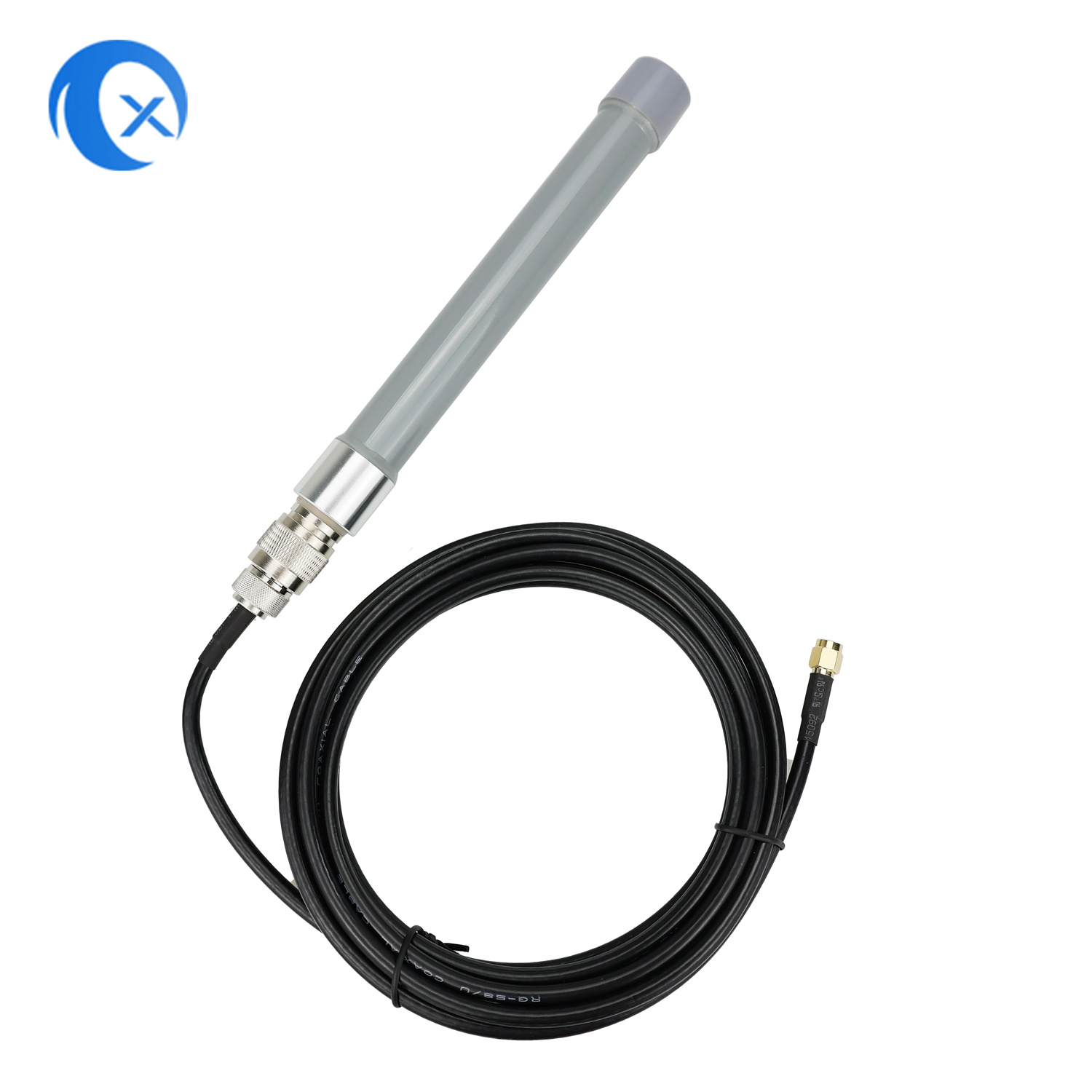

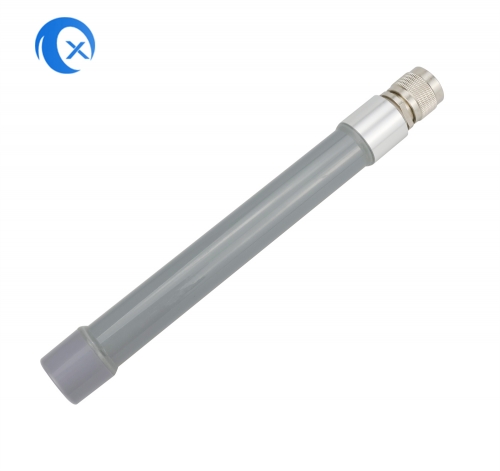

Fiberglass antenna
Outdoor omnidirectional fiberglass antenna 868 Mhz SMA Compatible LoRa Helium SIGFOX
Item No.: TX-HG039
Frequency Range: 868 MHz ISM band
Connector: N-type Male connector

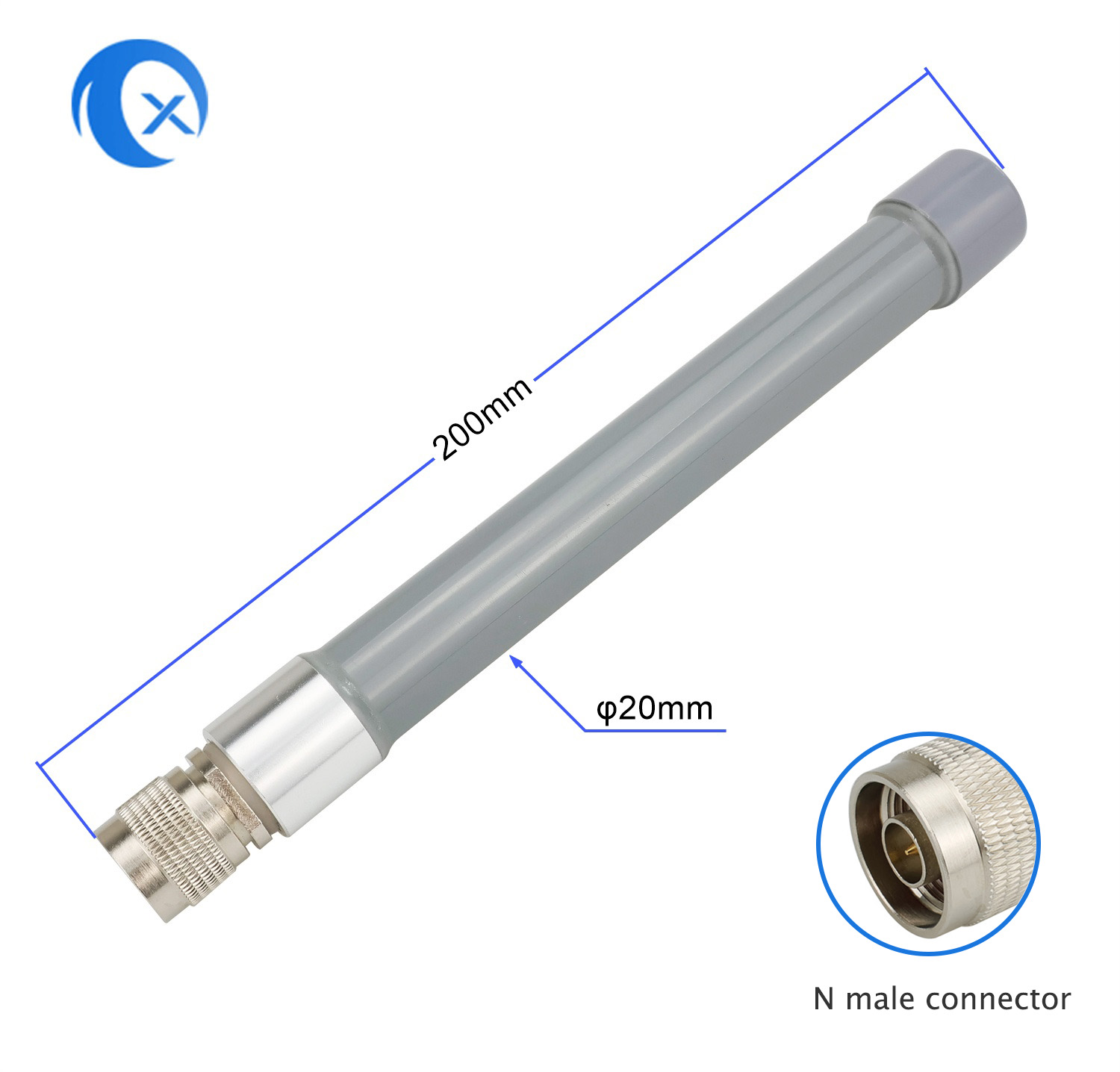

Dimensions: φ20*200 mm
Radome color: Grey, Black, White
Part Number: TX-HG039
Connector: N-type Male connector
Dimensions: φ20*200 mm
Radome color: Grey, Black, White
Part Number: TX-HG039
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 868 MHz ISM band | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 0 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Radome material | High-frequency PCB board | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | N-type male connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
