Fiberglass antenna

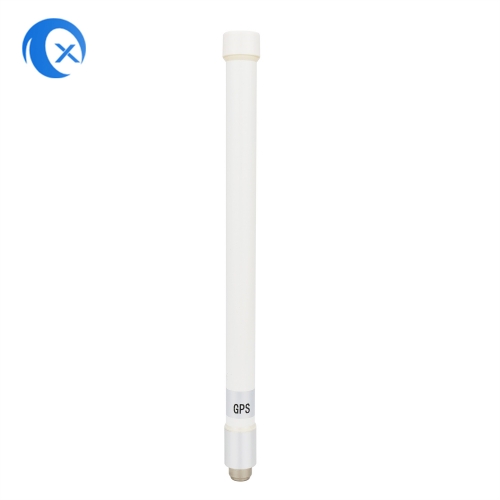

Outdoor omnidirectional white fiberglass GPS antenna with SMA male connector mount
Item No.: TX-HG038
Frequency Range: 1575.42 MHz
Gain: 6 dBi

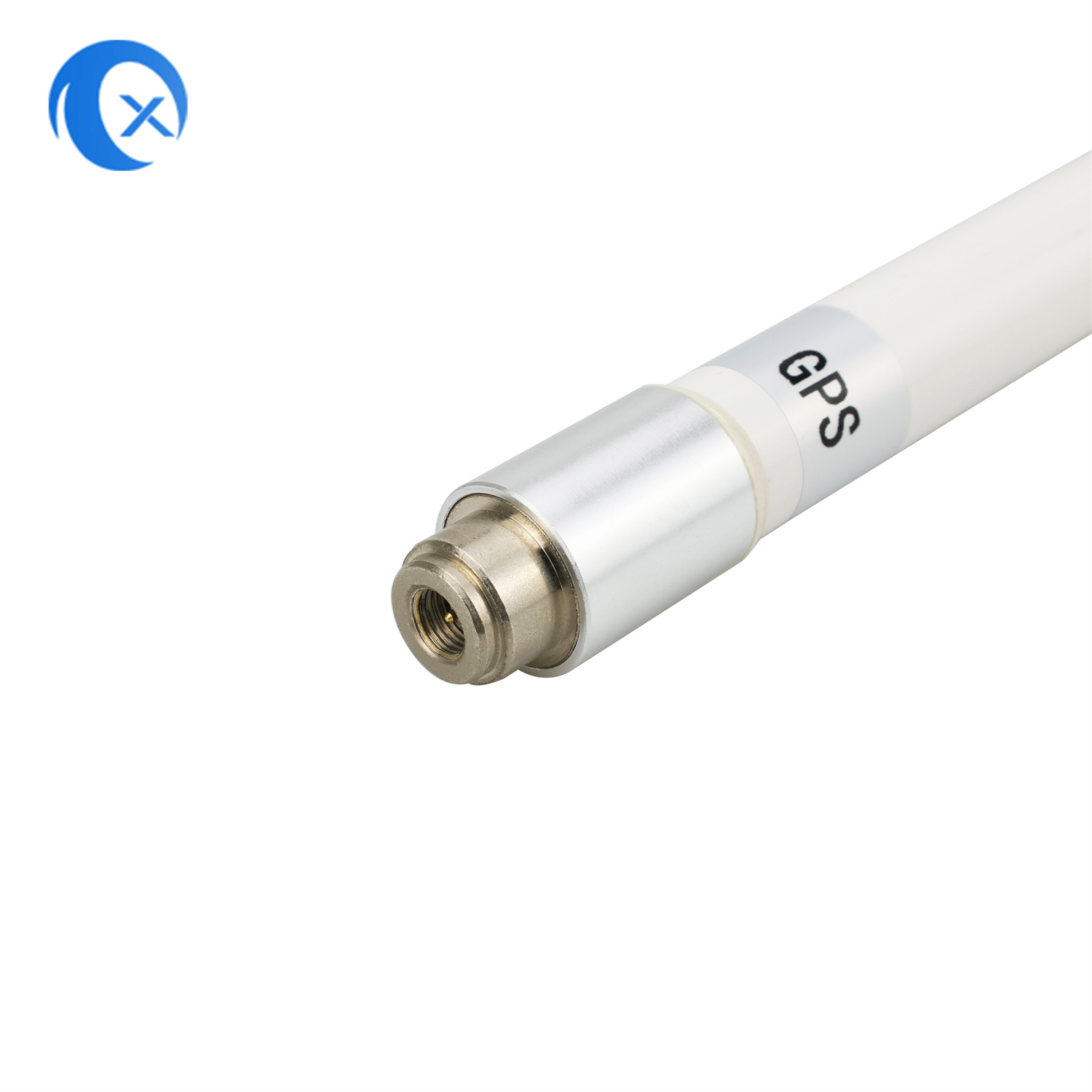

Connector: SMA Male connector

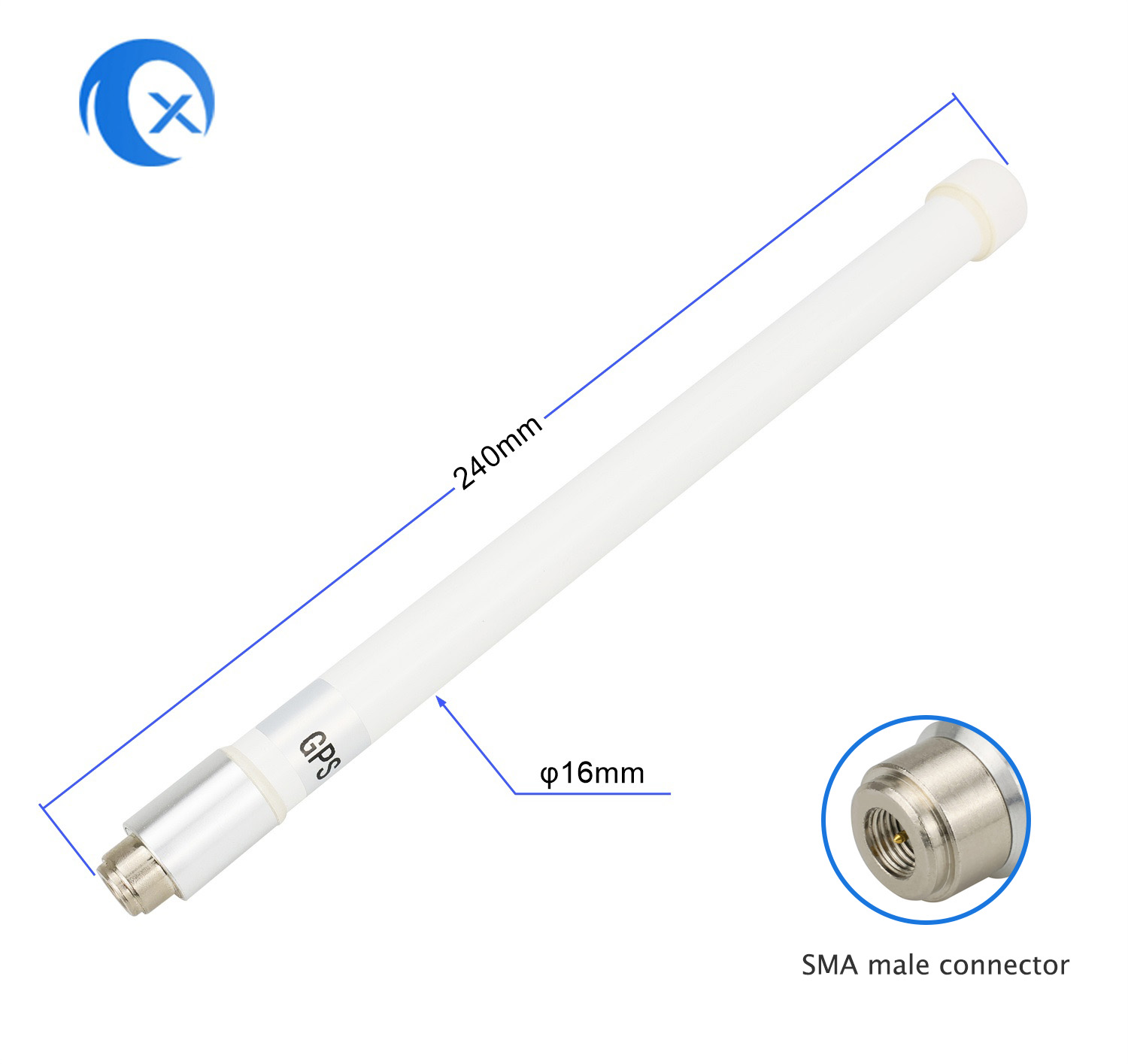

Dimensions: φ16*240 mm
Net weight: 59.9g
Radome color: Grey, Black, White
Part Number: TX-HG038
Gain: 6 dBi
Connector: SMA Male connector
Dimensions: φ16*240 mm
Net weight: 59.9g
Radome color: Grey, Black, White
Part Number: TX-HG038
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 1575.42 MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 6 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Radome material | High-frequency PCB board | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | SMA male connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
