Fiberglass antenna

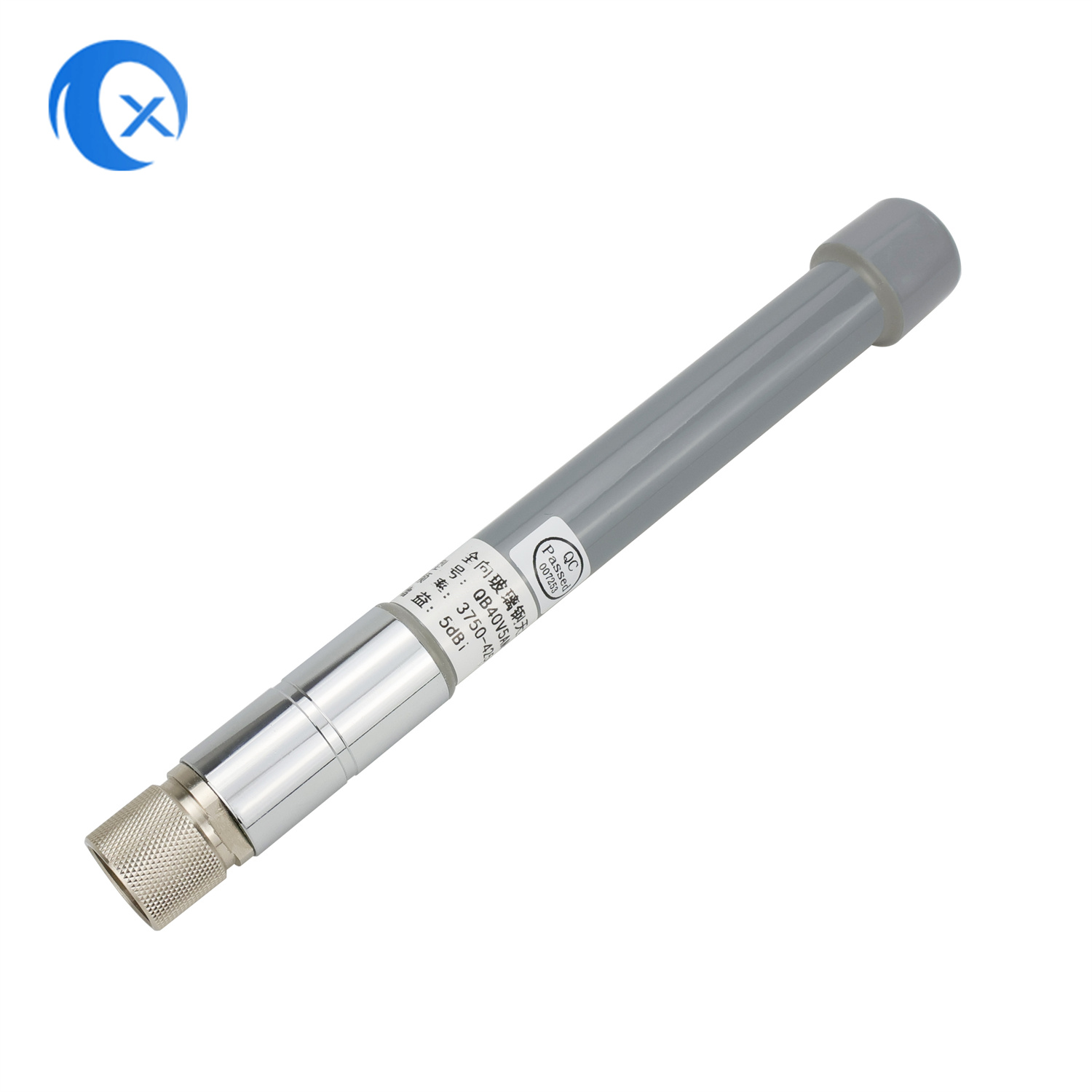

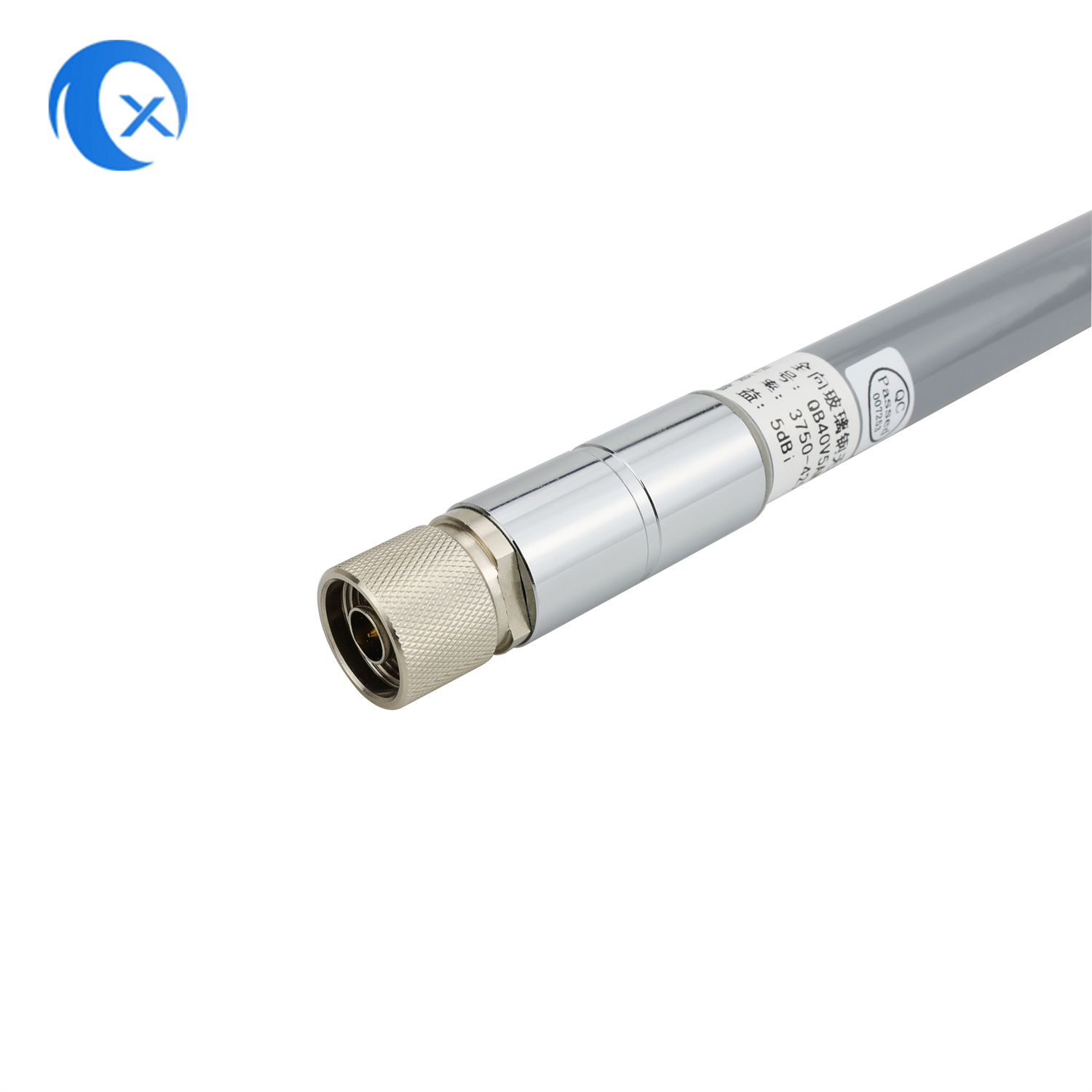

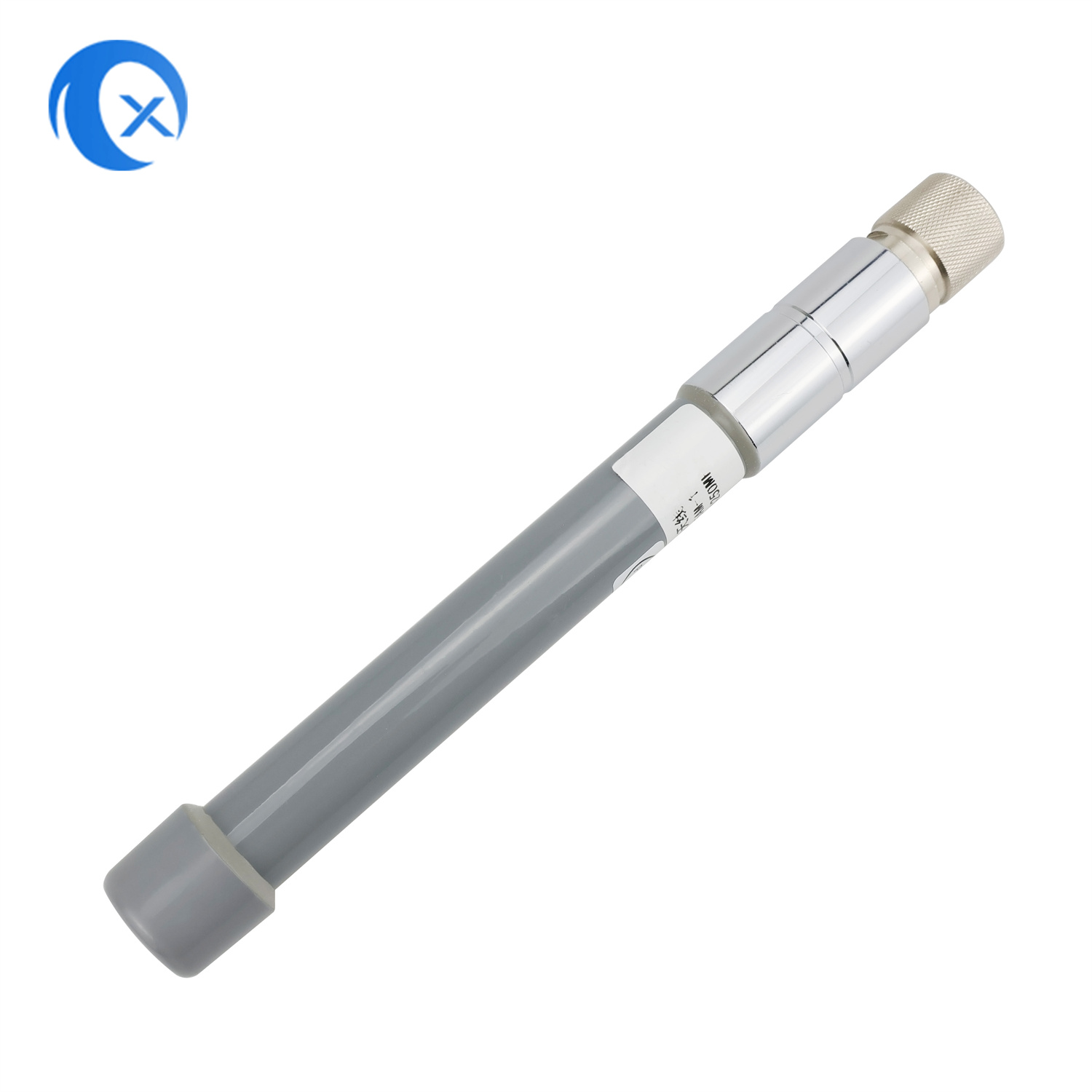

Outdoor waterproof 3750-4250 MHz 5dBi omnidirectional UWB fiberglass base station antenna
Item No.: TX-HG037
Frequency Range: 3750-4250 MHz
Gain: 5 dBi
Connector: N male connector

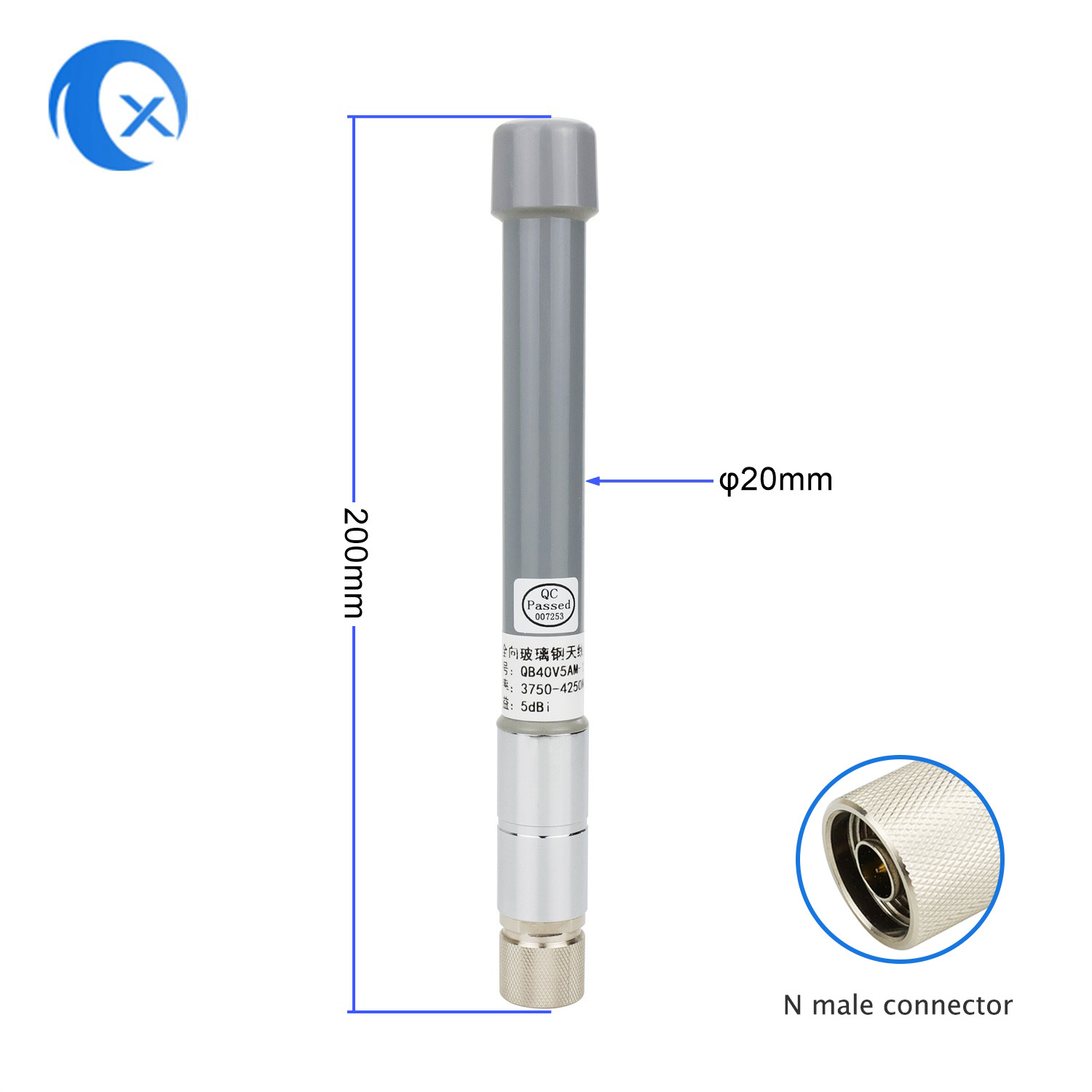

Dimensions: φ20*200mm
Part Number: TX-HG037
Gain: 5 dBi
Connector: N male connector
Dimensions: φ20*200mm
Part Number: TX-HG037
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 3750-4250 MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 5 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Radome material | Brass tube | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | N male connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
