Fiberglass antenna

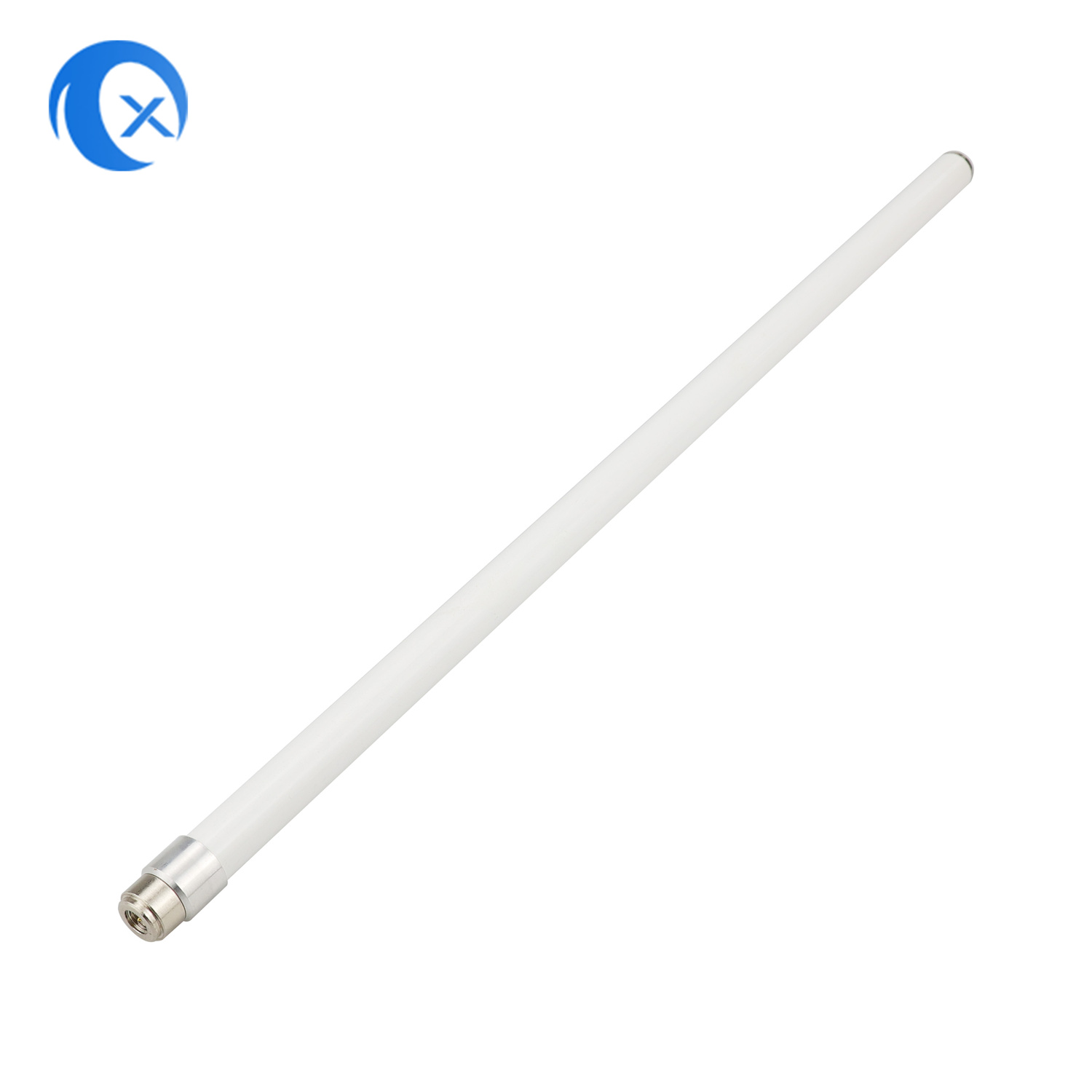

Waterproof Lora 868MHz-915 MHz High Again Iot Omni Fiberglass Antenna
Item No.: TX-HG021
Frequency Range: 868-915 MHz
Gain: 3 dBi
Connector: N connector
Dimensions: φ15*378mm
Weight: 181.1g
Part Number: TX-HG021
Gain: 3 dBi
Connector: N connector
Dimensions: φ15*378mm
Weight: 181.1g
Part Number: TX-HG021
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 868-915 MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 3 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Radome material | Fiberglass | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | N male connector | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
