Connector mount

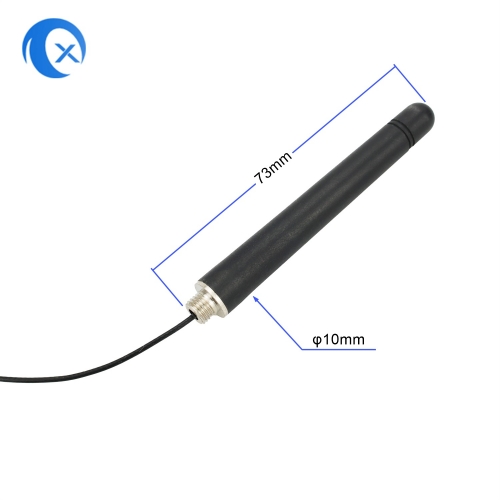

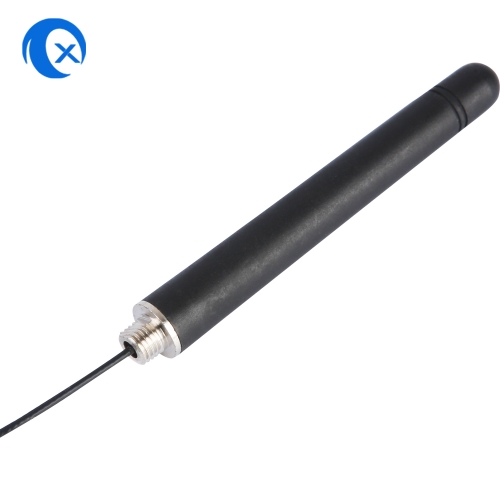

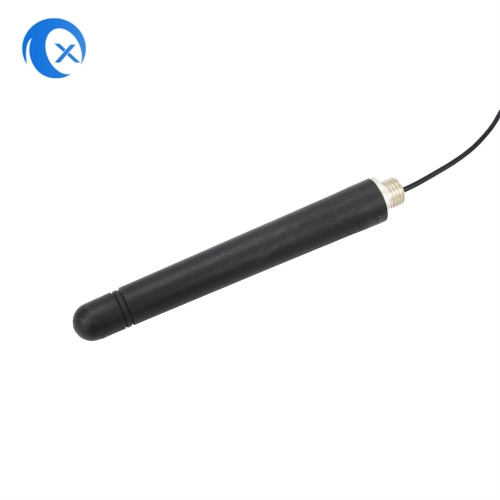

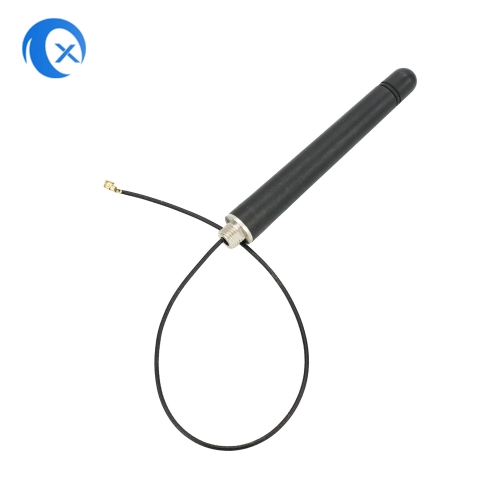

Waterproof Terminal Antenna GSM Rubber Screw Mount 868MHz Antenna
Item No.: TX-AP020
Frequency Range: 868MHz
Gain: 2 dBi
Dimensions: φ10*73mm
Part Number: TX-AP020
Gain: 2 dBi
Dimensions: φ10*73mm
Part Number: TX-AP020
Description
| A. Electrical Characteristics | ||||||||||||
| Frequency | 868 MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 2.0 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics |
||||||||||||
| Material of Radiator | PCB+SPRING | |||||||||||
| Material of Plastic | ABS/POM | |||||||||||
| Cable Type | / | |||||||||||
| Connector Type | IPEX | |||||||||||
C. Environmental |
||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
